Spare parts > Poulan > TRACTORS/RIDE MOWERS > HDK19H42 HDK19H42, 96016000402, 2005-06 > SEAT
Back to

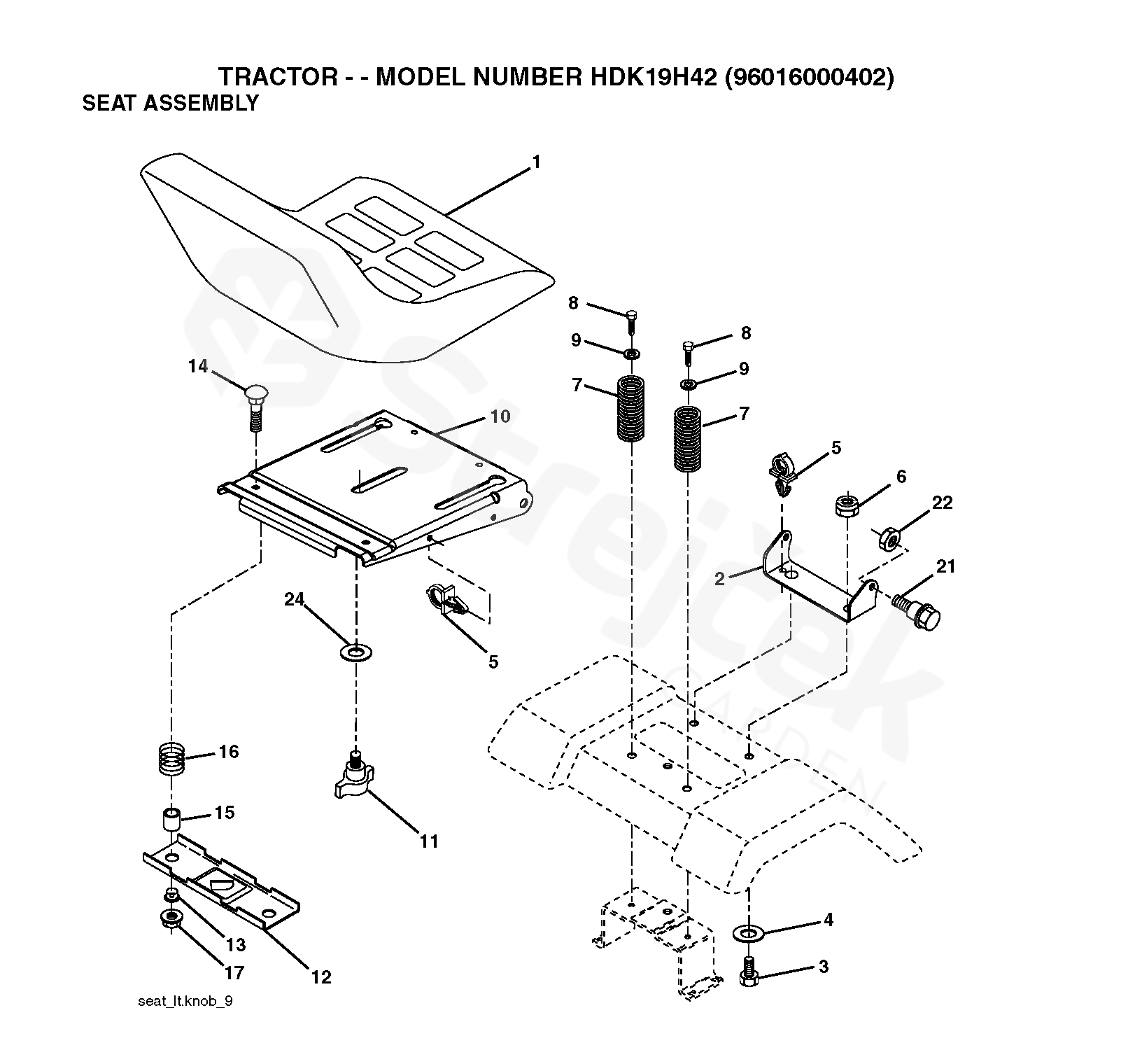

SEAT
HDK19H42 HDK19H42, 96016000402, 2005-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For HDK19H42, 96016000402, 2005-06
1 SEAT 532188705
2 BRACKET 532180166
3 SCREW 871110616
4 WASHER 819131610
5 CLIP 532145006
6 NUT 532062336
7 SPRING 532124181
8 SCREW 817000616
9 WASHER 819131614
10 PLATE 532180186
11 WING NUT 532166369
12 BRACKET 532174648
13 BUSHING 532121248
15 SPACER 532134300
16 SPRING 532121250
17 LOCKNUT 532123976
21 BOLT 532171852
