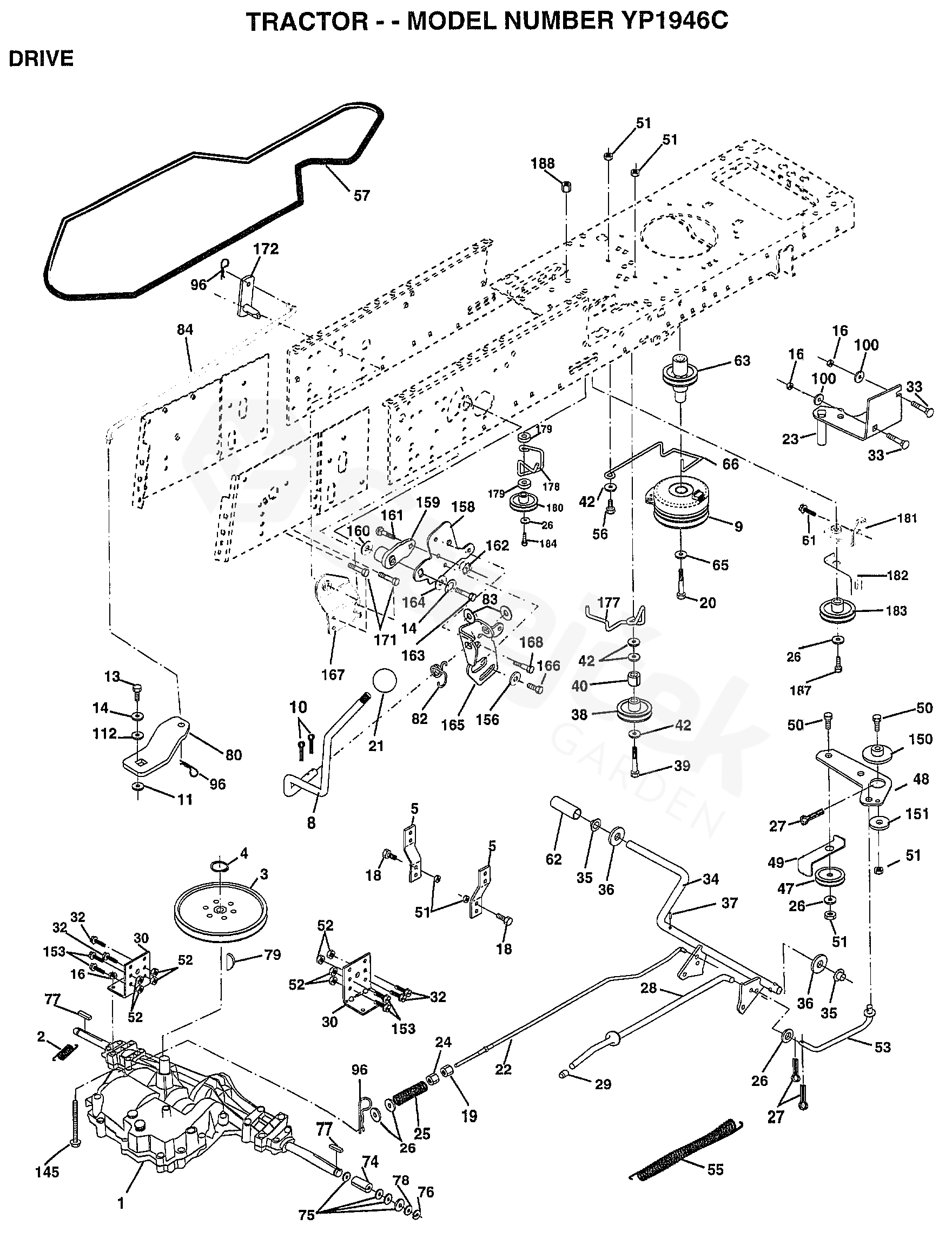

Spare parts > Poulan > TRACTORS/RIDE MOWERS > YP1946C YP1946C, 1999-01 > DRIVE
Back to
DRIVE
YP1946C YP1946C, 1999-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For YP1946C, 1999-01
2 SPRING 532110422
3 PULLEY 532123666
4 CLIP 812000028
5 BRACKET 532121520
6 SCREW 817490512
8 LEVER 532166020
9 CLUTCH 532160889
10 SPLIT PIN 876020416
11 WASHER 532105701
13 BOLT 871040412
14 WASHER 810040400
16 BRACKET 873800500
18 BOLT 874780616
19 NUT 532062336
20 BOLT 871170768
21 KNOB 532121274
22 ROD 532145204
23 CLUTCH MTG BRACKET 532152485
24 NUT 873350600
25 SPRING 532106888
26 PODLOŽKA 819131316
27 SPLIT PIN 876020412
28 ROD 532145204
29 COVER 532071673
30 BRACKET 532130807
31 GUIDE 532127275
32 BOLT 874760512
33 BOLT 872140506
34 SHAFT 532155071
35 BEARING 532120183
36 WASHER 819211616
37 GOUPILLE NPCREMP:532002882* 532001572
38 PULLEY 532104360
39 BOLT 874760644
40 SPACER 532004470
41 TENSIONER 532165838
42 PODLOŽKA 819131312
47 PULLEY 532127783
48 GUIDE 532154407
49 BELT GUIDE 532123205
50 BOLT 874760624
51 MATICE 873680600
52 MATICE 873680500
53 LINK 532105710
55 PRUŽINA 532105709
56 BOLT 874760620
57 V-BELT 532130801
58 KEEPER 532127274
59 STOP L.H. 532104777
61 SCREW 817490612
62 PEDAL RUBBER 532123533
63 PULLEY 532145868
65 WASHER 810040700
66 TENSIONER 532154778
74 ROZPĚRKA 532137057
75 WASHER 532121749
76 RETAINER RING 812000001
77 KEY 532123583
78 PODLOŽKA 532121748
79 WASHER 532002228
80 LEVER 532145090
81 SHAFT ARM 532165592
82 TORSION SPRING 532123782
83 WASHER 819171216
84 LINK TRANSAXLE 532166231
85 NUT 532150360
90 NUT 532124346
96 CLIP 532004497
100 PODLOŽKA 819111216
112 WASHER 819091210
113 BRACKET 532127285
145 BOLT 874490540
150 BUSHING 532165850
151 PODLOŽKA 819133210
