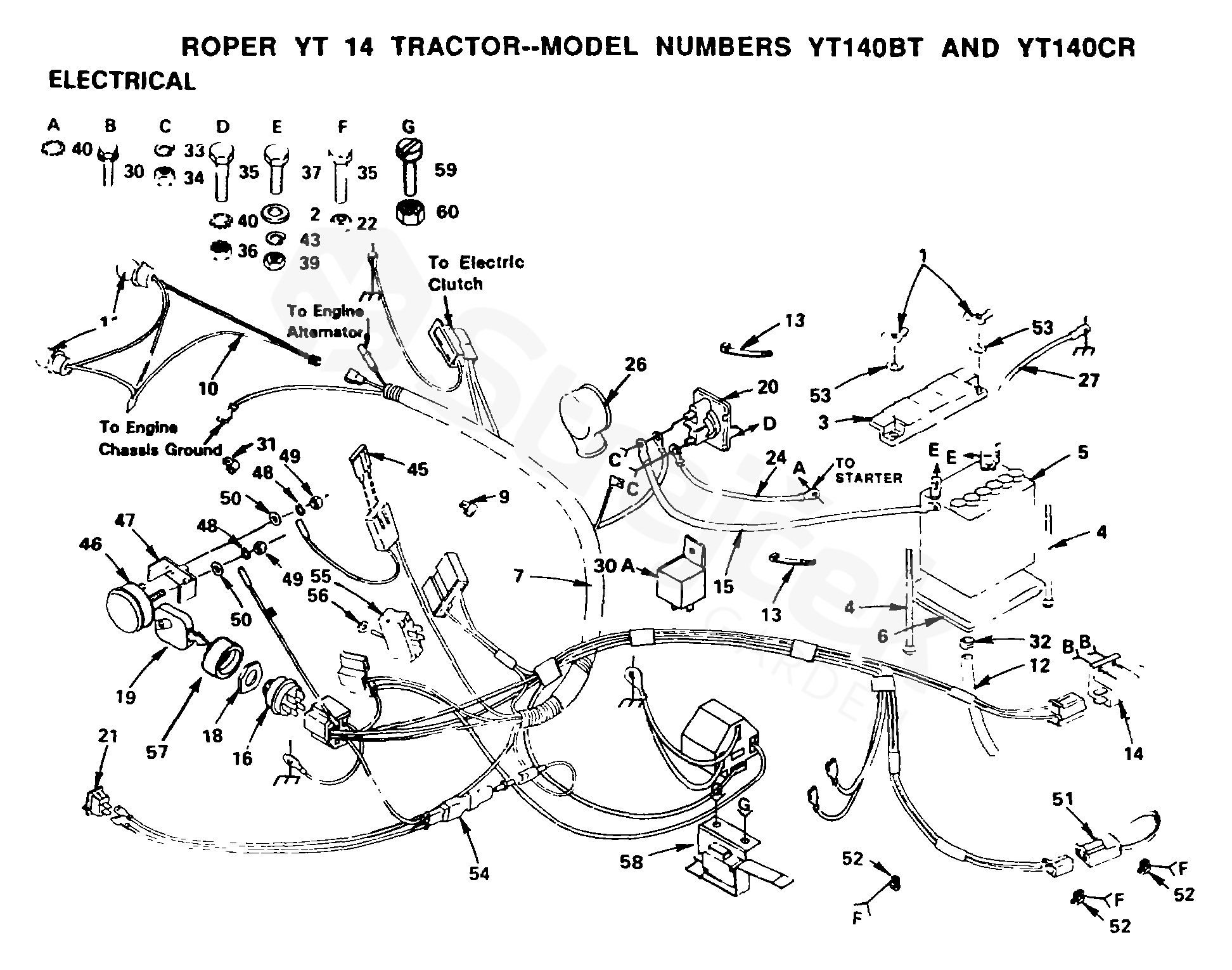

Spare parts > Poulan > TRACTORS/RIDE MOWERS > YT140CR YT140CR, 1999-01 > ELECTRICAL
Back to
ELECTRICAL
YT140CR YT140CR, 1999-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For YT140CR, 1999-01
1 NUT 873490400
2 WASHER 819091016
3 PROTECTOR 532102476
4 BOLT 872240460
6 TRAY 532007603
9 CLIP 532004171
10 HARNESS 532110859
11 BULB 532007662
12 PIPE 532100541
13 HOOP 532007192
14 SWITCH 532104445
15 CABLE 532124770
18 NUT 532109788
19 KEY 532109434
20 SOLENOID LT10/36 532109081
21 SWITCH 532110712
22 NUT 873680400
27 TIRE 532004607
30 SCREW 817021008
31 CLIP 532002751
32 CLAMP 532109596
33 WASHER 810090400
34 NUT 873350400
35 BOLT 874780408
36 MATICE 532053838
37 BOLT 874760412
39 NUT 873220400
40 WASHER 811050400
43 WASHER 810040400
45 FUSE 532006347
46 AMMETER 532124900
47 BRACKET 532124901
48 WASHER 810101000
49 NUT 873911000
50 WASHER 819070818
51 LOOP 532102501
52 235R 968020201
53 WASHER 811030400
54 DIODE 532106315
55 SWITCH.PTO.T 4021J
4021J 		4021J
56 NUT 532004022
57 BEZEL 532109787
58 SWITCH 532121064
59 SCREW 874641008
60 NUT 873951000
SHEET INSTR LT 532101539
30A RELAY 532109748
