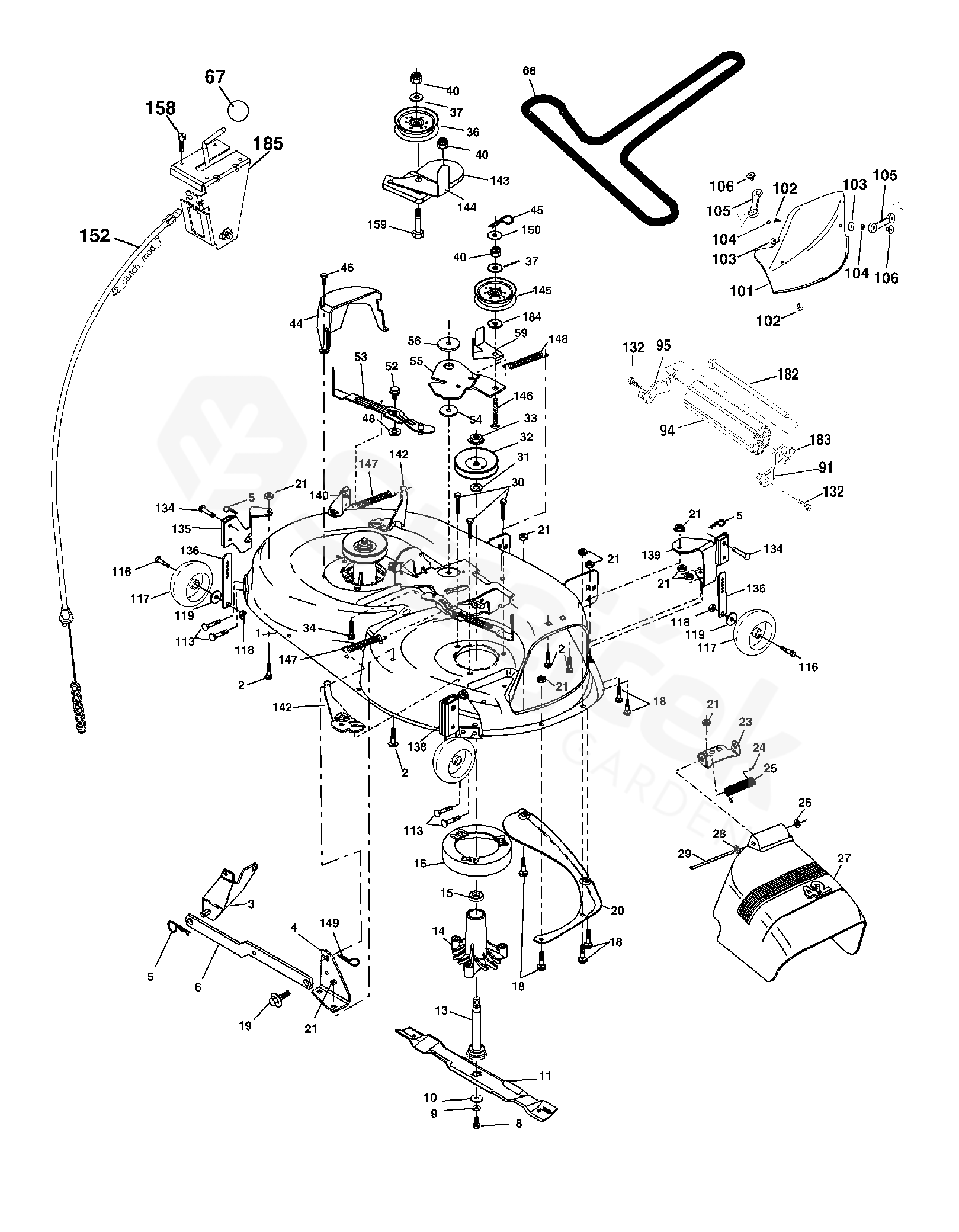

Spare parts - Partlist - PD22H42STB PD22H42STB, 2004-01 - MOWER DECK / CUTTING DECK

Everything for your machines

PD22H42STB PD22H42STB, 2004-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PD22H42STB, 2004-01

1	DECK 182032X421 182032X421	182032421
2	BOLT	872140506
3	BRACKE	532138017
4	BRACKET	532165460
5	SPRING	532004939
6	LEVER	532178024
8	BOLT	532850857
9	PODLOŽKA	810030600
10	PODLOŽKA (The following Blades are available)	532140296
11	RIDE ON BLADE (For mulching mowers only)	532134149
13	SHAFT	532137645
14	BEARING HOUSING	532128774
15	BEARING	532110485
16	STRIPPER. MANDREL.BLACK	532174493
18	BOLT	532066238
19	SPEC. BOLT	532132827
20	KOLEJNICE	532159770
21	MATICE	873680500
23	BRACKET DEFLECTOR MO	532177563
24	HUB CAP	532105304
25	SPRING	532106734
26	MATICE	532110452
27	DEFLECTOR	532130968
28	WASHER	819111016
29	HRÍDEL	532131491
30	SCREW	532173984
31	PODLOŽKA	532187690
32	PULLEY	532173436
33	NUT	532178342
34	BOLT	872110612
36	PULLEY	532173438
40	MATICE	873900600
44	PROTECTOR, L.H.	532134236
45	CLIP	532004497
46	SCREW	532137729
48	PODLOŽKA	532133944
52	BOLT	532105529
53	ARM ASM PAD BRAKE	532184907
54	PODLOŽKA	532178515
55	LEVER	532155046
56	SPACER	532122052
59	GUIDE	532173442
67	KNOB	532171598
68	BELT	532144959
91	BRACKET 180532	532180532
92	NUT	532062336
94	ROLLER	532132264
95	BRACKET 180533	532180533
101	COVER	532136420
102	SCREW	871081010
103	WASHER	819061216
104	LOCKWASHER	532001863
105	LATCH	532160793
106	NUT	532124005
113	SCREW	817060512
116	BOLT	532184219
117	WHEEL	532133957
118	NUT	532005394
119	PODLOŽKA	819121414
129	PODLOŽKA	819131312
130	BOLT	874780616
131	BOLT	872140608
132	SCREW	817000612
134	PIN RETAINING SCREW	532156941
136	BAR	532155986
142	BRACKET	532165890
143	BRACKET	532157109
144	BELT GUIDE	532173441
145	PULLEY	532173437
146	SCREW	532173443
147	SPRING	532131335
148	SPRING	532169022
149	SPRING	532165898
150	WASHER	819091210
152	WIRE	532169676
158	SCREW	817240408
159	BOLT	872140614
182	PIN RETAINING SCREW	532179126
183	CLIP	532163552
184	WASHER	819131410
185	HEAD ASM. CABLE CLUTCH	532188234
	SERVICE DECK "(Std. deck Order separately muklcher cover, nose roller and gauge wheel componants Key Nos. 101-106, 91, 94, 95, 132, 182, 183 and 116-119)"	532184563
