Spare parts > Poulan > TRACTORS/RIDE MOWERS > SP24H48YT SP24H48YT, 96012002500, 2005-01 > SEAT
Back to

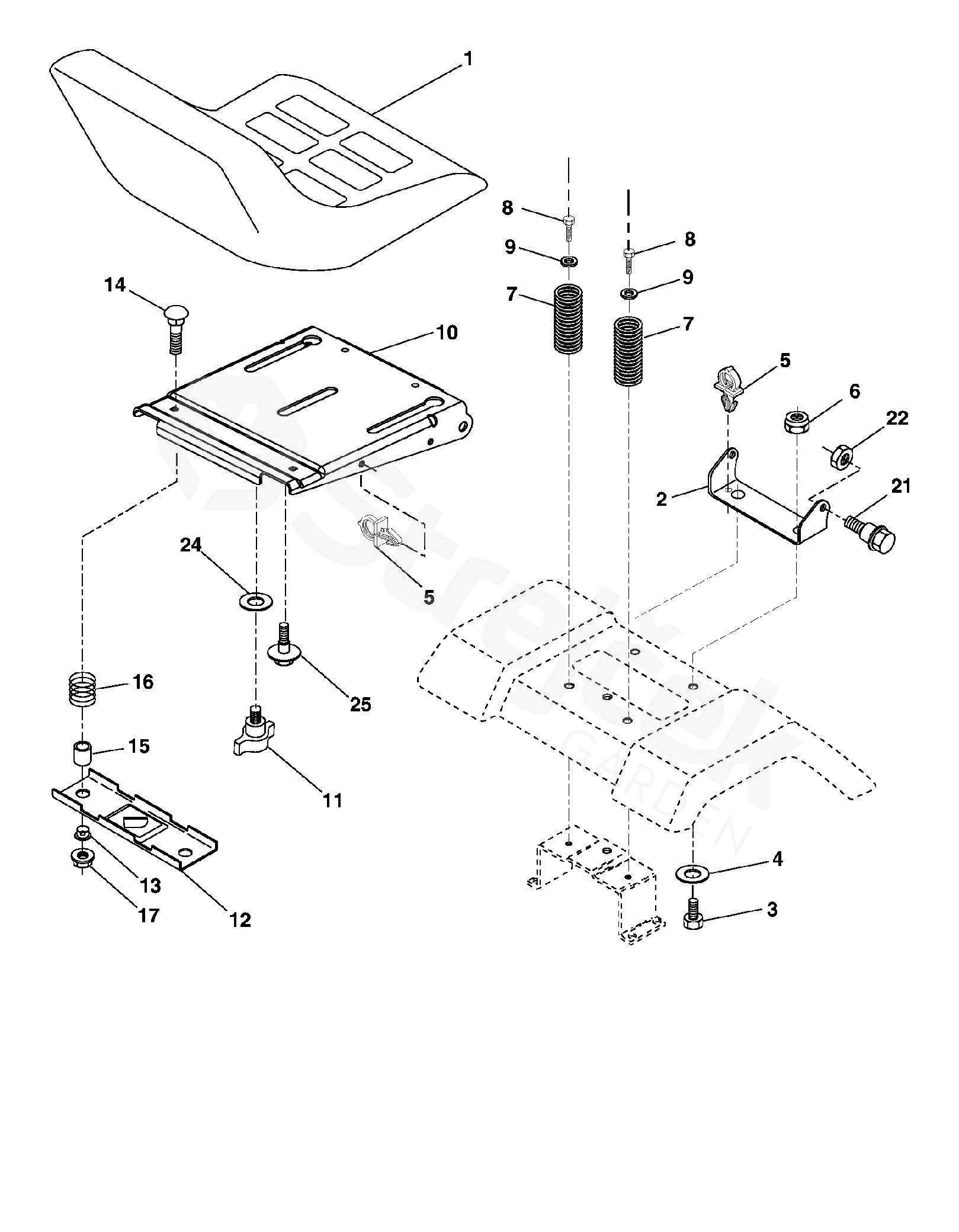

SEAT
SP24H48YT SP24H48YT, 96012002500, 2005-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SP24H48YT, 96012002500, 2005-01
1 SEAT
188706 		532188706
2 BRACKET 532180166
3 SCREW 871110616
4 WASHER 819131610
5 CLIP 532145006
6 NUT 532062336
7 SPRING 532124181
8 SCREW 817000616
9 WASHER 819131614
10 PLATE
180186 		532180186
11 WING NUT 532166369
12 BRACKET 532174648
13 BUSHING 532121248
14 BOLT 872050412
15 SPACER 532121249
16 SPRING 532123740
17 LOCKNUT 532123976
21 BOLT 532171852
22 BRACKET 873800500
24 WASHER 819171912
25 BOLT 532121144
