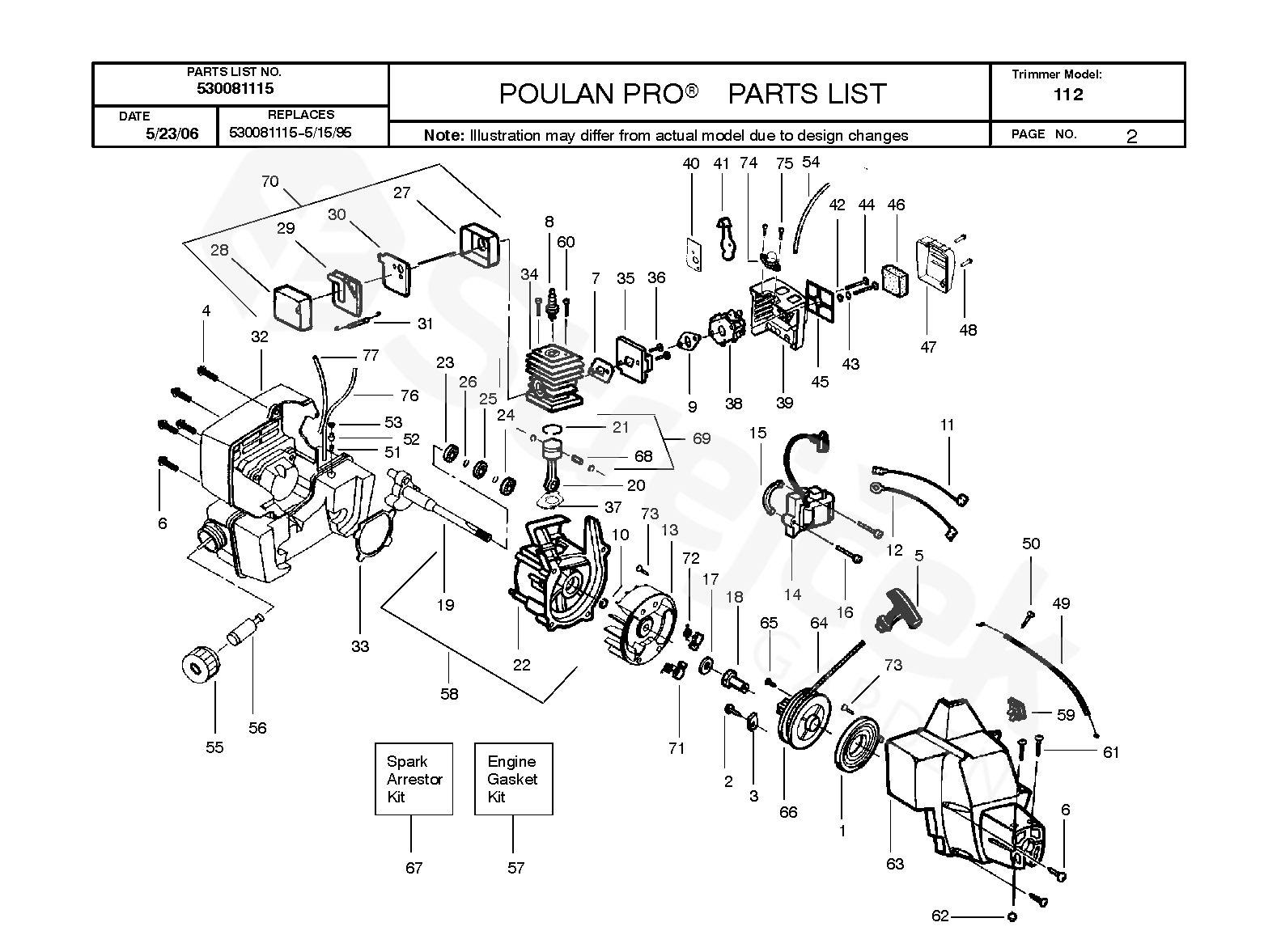

Spare parts - Partlist - 112 112, 2006-05 - CARBURETOR

Everything for your machines

112 112, 2006-05

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 112, 2006-05

1	RECOIL SPRING	530029395
2	SCREW	530015775
3	RETAINER	530027523
4	SCREW	530015934
5	STARTER HANDLE	530027569
6	SCREW	530015810
7	GASKET	530019233
8	SPARK PLUG	952030078
9	GASKET	530019194
10	CLIP	530015941
11	CABLE	530014663
12	CABLE	530014662
13	FLYWHEEL	530039149
14	IGNITION MODULE	530039163
15	HOLDER	530036145
16	SCREW	530015954
17	PODLOŽKA Washer	530015828
18	COUPLING	530027953
19	CRANKSHAFT	530014532
20	CONNECTING ROD	530069615
21	PISTON RING	530036404
22	CRANKCASE	530014861
23	BEARING	530032125
24	BEARING	530032124
25	SEALING	530019179
26	CLIP	530015945
27	MUFFLER, BODY	530036578
28	MUFFLER,COVER	530036577
29	PARTITION	530038602
30	PARTITION	530036579
31	SPRING	530029930
32	SHROUD & TANK ASSY (GOLD) TYPE 2 & 3 TYPE 2 & 3	530047091
33	GASKET	530019181
34	ADAPTER	530069564
36	SCREW	530016014
37	GASKET	530019223
38	CARBURETTOR WA-218	530069647
39	BOX TYPE 2 & 3 TYPE 2 & 3	530037971
40	PLATE	530037326
41	CHOKE FLAP	530038102
42	SPRING	530015254
43	SPACER	530015852
44	SCREW	530015887
45	FILTER	530037413
46	AIR FILTER	530037331
47	COVER	530037292
48	SCREW	530015966
49	CABLE	530036744
50	SCREW	530015814
51	CHECK VALVE	530026119
52	FILTER	530029717
53	HOLDER	530029696
54	HOSE	530069571
55	TANK	530014347
56	FILTER	530014362
57	GASKET KIT	530069616
58	CRANKCASE	530014729
59	SWITCH	530069572
60	SCREW	530015953
61	SCREW	530016072
62	NUT	530015768
63	ASSY-FAN HOUSING (GOLD)	530014921
64	STARTER ROPE	530069232
65	SCREW	530016080
66	STARTER PULLEY	530069400
67	SPARK ARRESTOR	530069380
68	CIRCLIP	530015162
69	PISTON PIN	530069402
70	MUFFLER	530069660
71	PAWL	530029939
72	SPRING	530047570
73	SCREW	530015882
74	PRIMER TYPE 2 & 3	530038874
75	SCREW TYPE 2 & 3	530016090
76	KIT	530069216
77	HOSE	530069247
