Spare parts > Husqvarna Construction Products > AUTOFEEDERS > AD10 AD10, 2011-06 > ELECTRICAL
Back to
ELECTRICAL

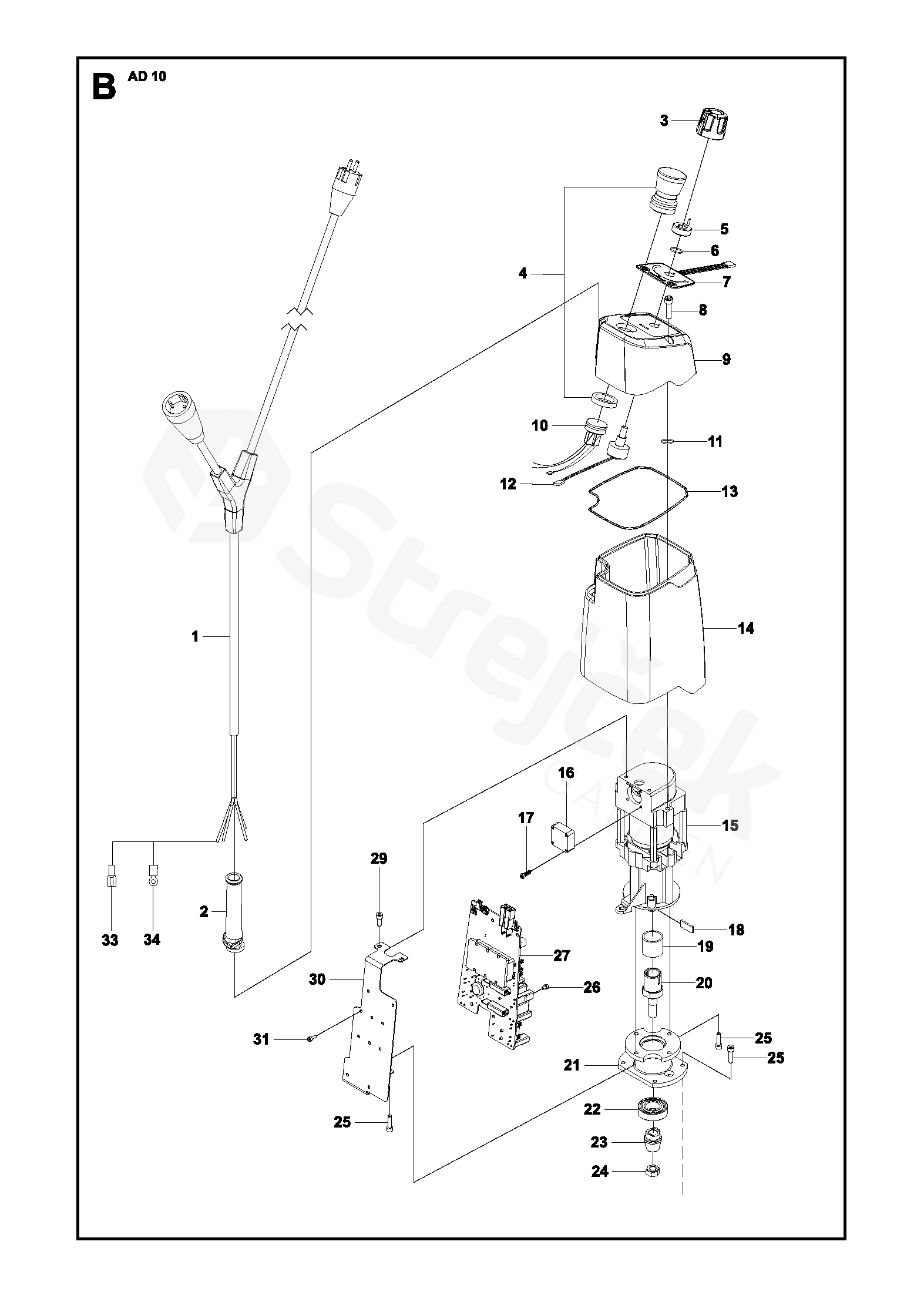

AD10 AD10, 2011-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For AD10, 2011-06
1 CABLE Y-cable US 230V
Y-cable US 230V 		575789107
2 STRAINER 575783401
3 O-RING 577027801
4 STOP SWITCH 576636401
5 NUT 577027501
6 O-KROUŽEK 576261601
7 CONTROL PANEL 575824301
8 HOSE CLAMP 725532901
9 MOTOR COVER 525350201
10 CABLE KIT 576636301
11 O-KROUŽEK 740420600
12 CABLE KIT 576636201
13 O-KROUŽEK 531119376
14 COVER 575822701
15 ELECTRIC MOTOR CPL. 577027901
16 FAN 576634001
17 SCREW 506606701
18 WEDGE 575823501
19 SLEEVE 575823401
20 GEAR WHEEL SHAFT 525350901
21 FLANGE 575783301
22 BALL BEARING 738210204
23 PASTOREK 506098602
24 HEXAGON LOCKING NUT 732251801
25 SCREW IHSCM 725529301
26 SCREW IHSCM 725522001
27 PRINTED CIRCUIT ASSY 110 V
110 V 		580950702
29 SCREW IHSCM 725528501
30 ATTACHMENT PLATE 525350401
31 SCREW 576634201
33 TABLE 531117200
34 RING 531117190
