Spare parts > Husqvarna Construction Products > DEMOLITION ROBOTS > DXR140 DXR140, Valid for machine 1 and forward, 2013-08 > TRACK SYSTEM
Back to

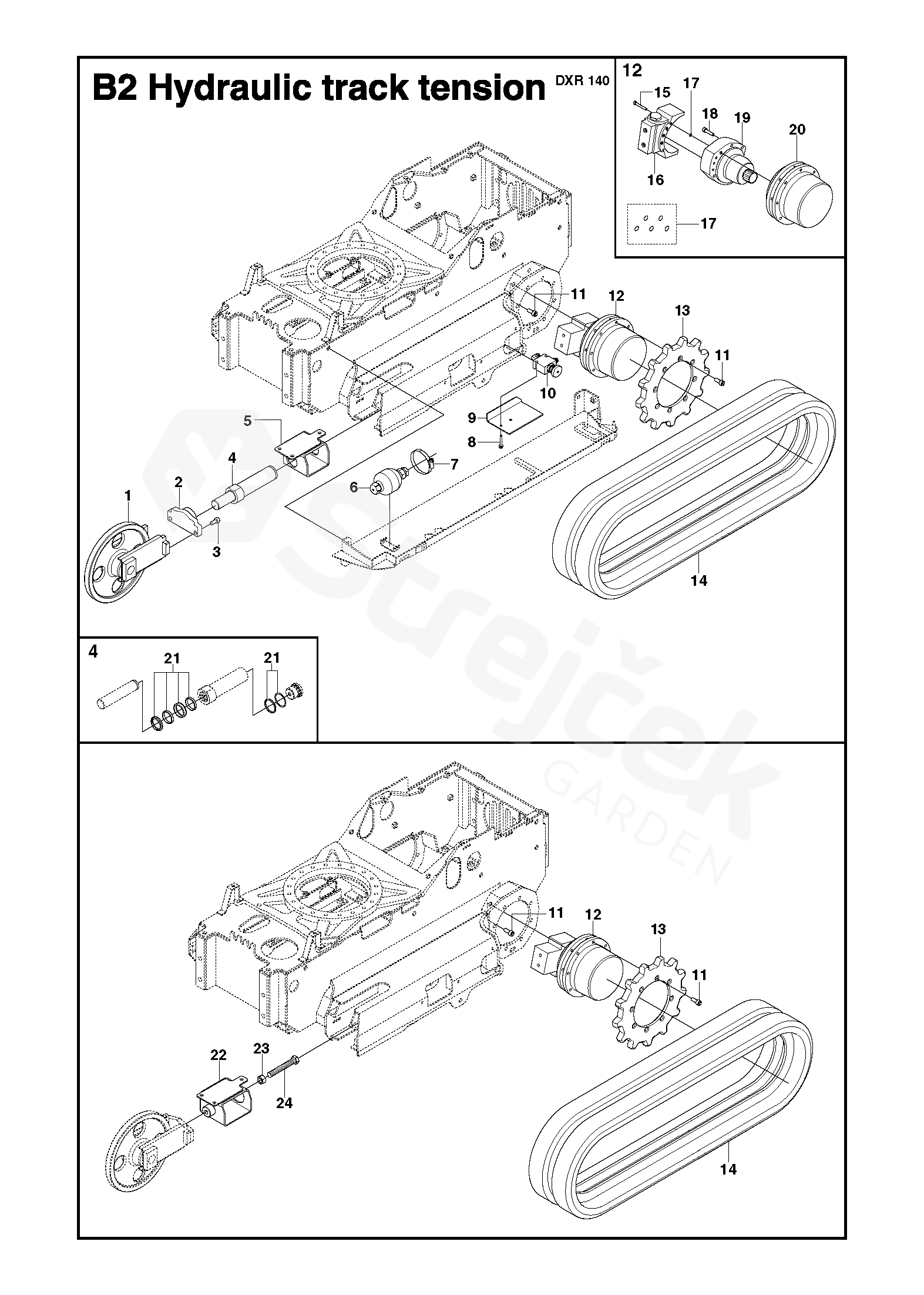

TRACK SYSTEM
DXR140 DXR140, Valid for machine 1 and forward, 2013-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For DXR140, Valid for machine 1 and forward, 2013-08
1 TENSION ROLLER 525800901
2 PLATE 579317701
3 SCREW IHSCM 725549501
4 CYLINDER 505267401
5 TUBE 575389601
6 ACCUMULATOR 575595601
7 HOSE CLAMP 575611401
8 SCREW EHHFM 522707001
9 PROTECTION 575391301
10 CONTROL VALVE 575596601
11 SCREW IHSCM 522666801
12 DRIVE MOTOR 574701101
13 SPROCKET 525797501
14 RUBBER TRACKS 579328401
15 SCREW IHSCM 725546751
16 VALVE KIT 522964901
17 SEAL 522965001
18 SCREW IHSCM 725545751
19 HYDRAULIC MOTOR 576295201
20 GEARBOX 522964801
21 SEAL 522857601
22 TUBE RH
RH 		574717901
23 NUT 575292901
24 SCREW EHHM 575293101
