Spare parts > Husqvarna Construction Products > DEMOLITION ROBOTS > DXR270 DXR270, Valid for machine 1 and forward, 2013-08 > HYDRAULIC HOSES TRACKS & SUPPORT LEGS
Back to

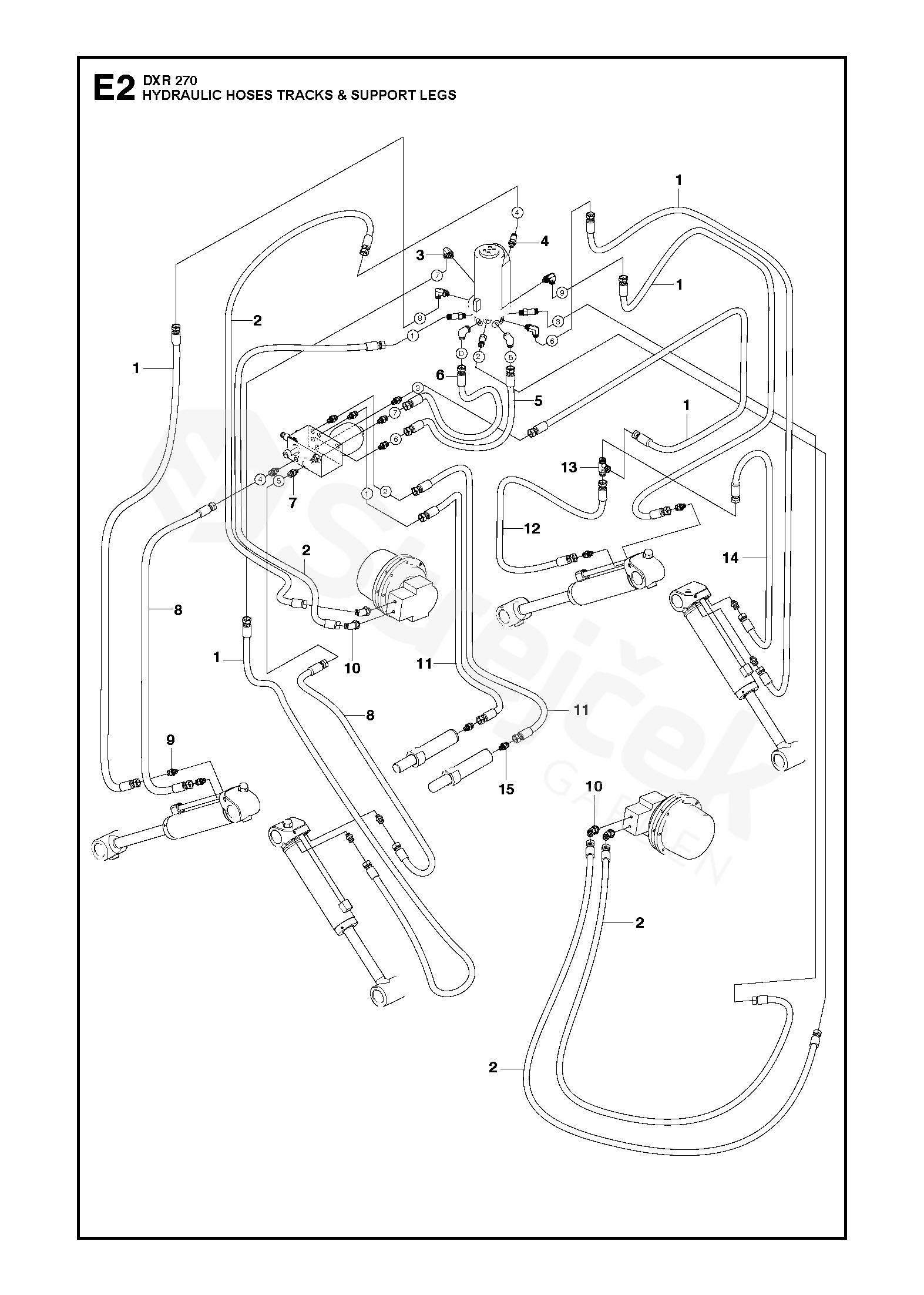

HYDRAULIC HOSES TRACKS & SUPPORT LEGS
DXR270 DXR270, Valid for machine 1 and forward, 2013-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For DXR270, Valid for machine 1 and forward, 2013-08
1 HOSE ASSY 510228702
2 HOSE ASSY 510170001
3 ADAPTER 505342701
4 ADAPTER 505342901
5 HOSE ASSY 510174403
6 HOSE ASSY 510174402
7 ADAPTER 510245801
8 HOSE ASSY 510228704
9 ADAPTER 522730001
10 ADAPTER 510247201
11 HOSE ASSY 510228701
12 HOSE ASSY 510251803
13 ADAPTER 510247301
14 HOSE ASSY 510251803
15 ADAPTER 510245701
