Spare parts > Husqvarna Construction Products > DRILLING EQUIPMENT > DM230 DM230, 2009-02 > MOTOR
Back to

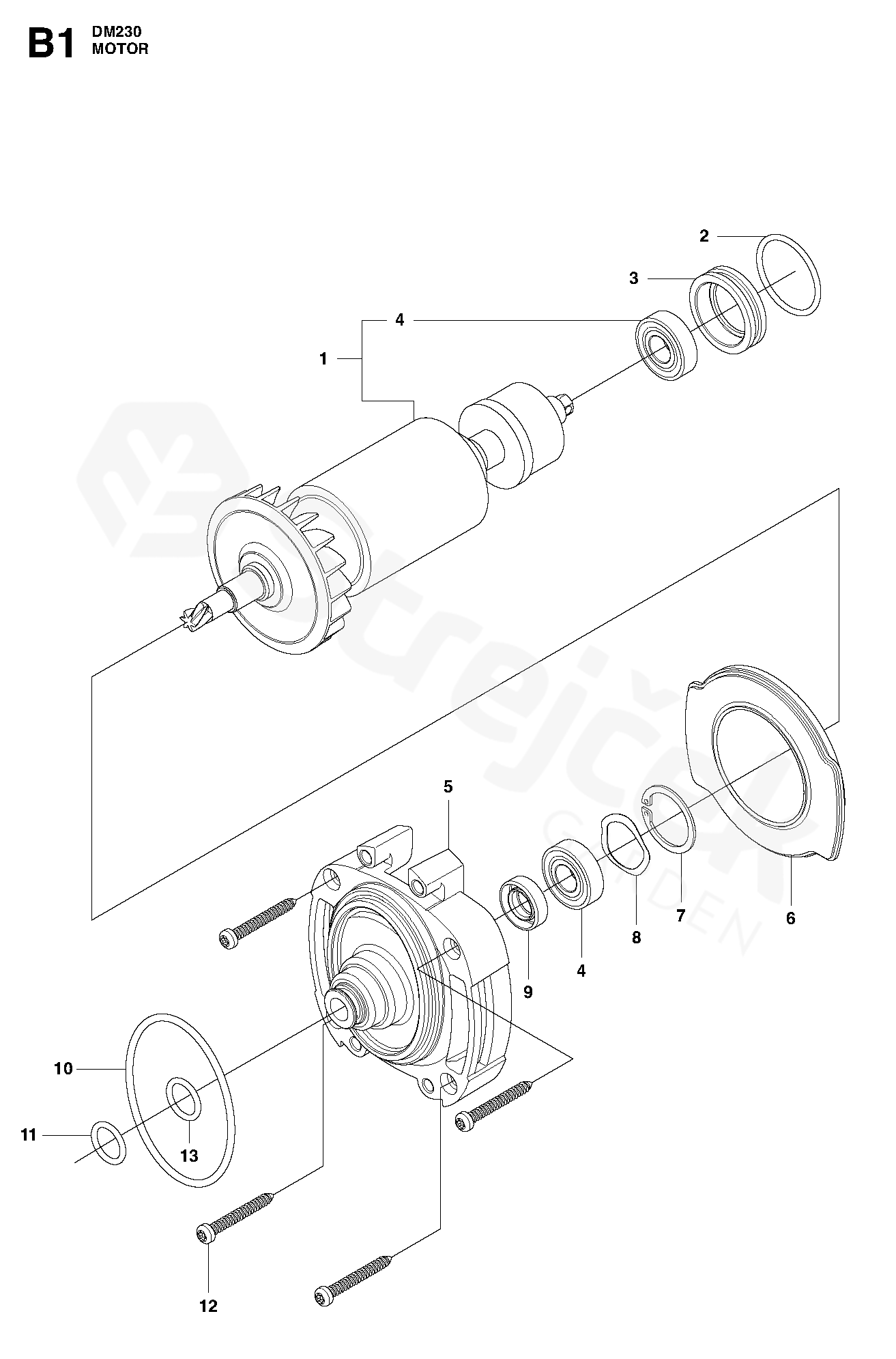

MOTOR
DM230 DM230, 2009-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For DM230, 2009-02
1 ROTOR 230 V, Incl. 4
230 V, Incl. 4 		505576601
2 O-KROUŽEK 503263003
3 BEARING SUPPORT 544123001
4 BALL BEARING 503252401
5 COVER 544124301
6 AIR CONDUCTOR 544122901
7 CIRCLIP 735312810
8 PRUŽNÁ PODLOŽKA 501008401
9 CHARGER 58V, 230 W, Poulan Pro 501008301
10 O-KROUŽEK 503263029
11 O-KROUŽEK 740431100
12 BATTERY 58V, 5.2Ah, Poulan Pro 525476302
13 BOLT Hex Head Machine Screw 510440901
