Husqvarna Construction Products
>
FLOOR SAWS
>
FS309 FS309, 2013-11
>
TROLLEY
Back to
FS309
FS309, 2013-11
TROLLEY
FS309
FS309, 2013-11

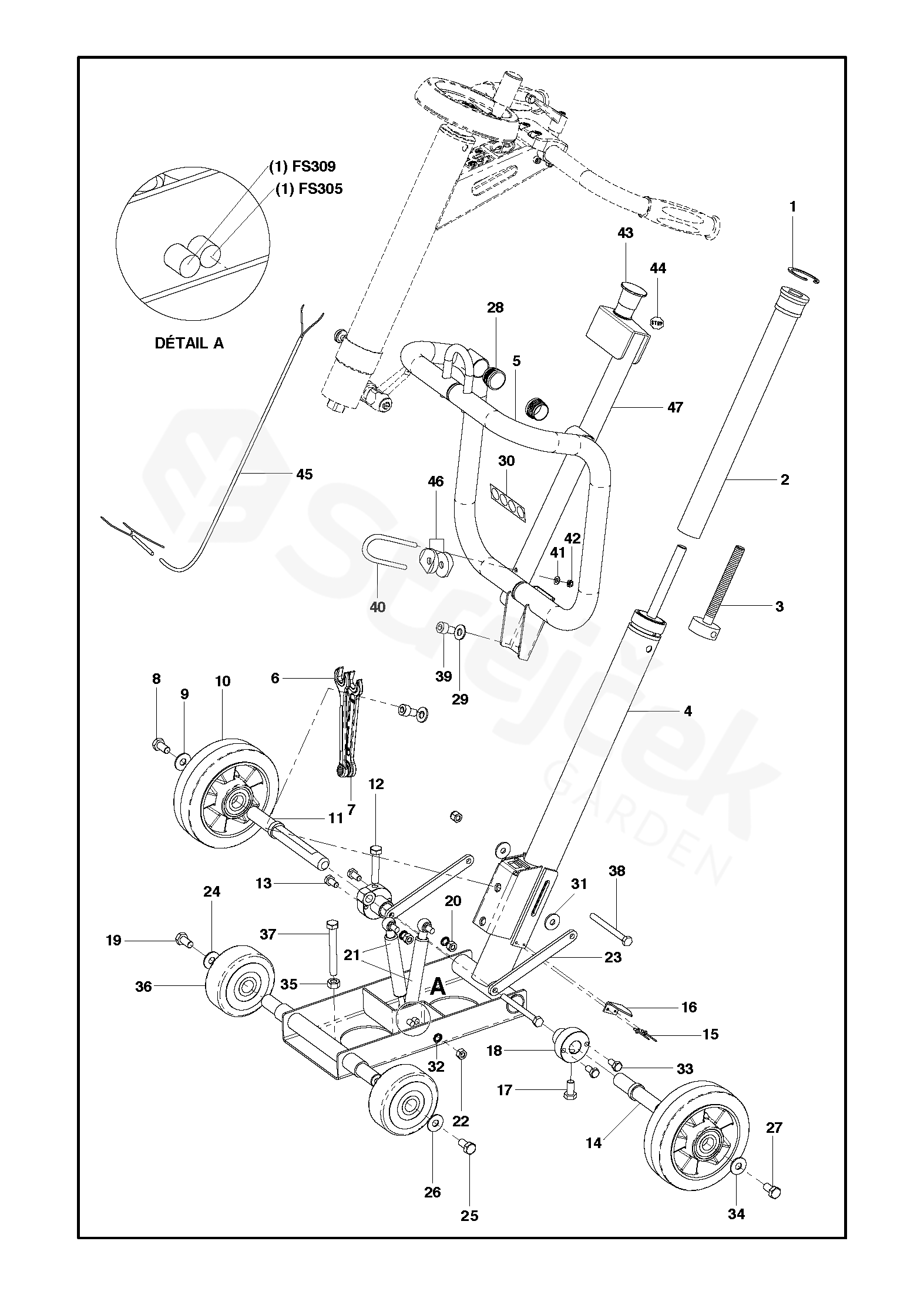

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
FS309, 2013-11
1
CIRCLIP
735313910
2
KEY
543081227
3
SCREW
543080942
4
CARRIAGE
504013401
5
LIFTING ARM
586978101
6
WRENCH
543045891
7
KLÍČ
543045904
8
SCREW EHHM
725249171
9
PODLOŽKA
734117441
10
WHEEL
543045950
11
AXLE
543080915
12
SCREW EHHM
725250151
13
SCREW EHHFM
725244971
14
REAR WHEEL
543080914
15
NÝT
722781803
16
POINTER
543082316
17
SCREW EHHM
725249171
18
BEARING
543080916
19
SCREW EHHFM
725244971
20
HEXAGON LOCKING NUT
731231801
21
GAS SPRING
543850374
22
HEXAGON LOCKING NUT
731231801
23
ARM
543081235
24
PODLOŽKA
734117441
25
SCREW EHHM
725249171
26
PODLOŽKA
734117441
27
SCREW EHHM
725249171
28
PLUG
502083201
29
HEXAGON NUT
734117201
30
DECAL
543045853
31
PVC WASHER 8.4/25/2.5/
543044898
32
LOCKWASHER
735216401
33
SCREW EHHM
725249171
34
PODLOŽKA
734117441
35
HEXAGON NUT
731232001
36
WHEEL
543045948
37
SCREW EHHM
725250751
38
AXLE
502244101
39
SCREW IHSCM
725548901
40
PIPE CLAMP
582016101
41
PODLOŽKA
734115201
42
HEXAGON LOCKING NUT
732251601
43
SWITCH
585638001
44
DECAL
543045871
45
ELECTRICAL SYSTEM
582055301
46
WASHER
542202184
47
CONSOLE ASSY
582025601
