Spare parts > Husqvarna Construction Products > FLOOR SAWS > FS3500 FS3500, 2007-10 > BLADESHAFT - GAS & ELECTRIC MODELS
Back to

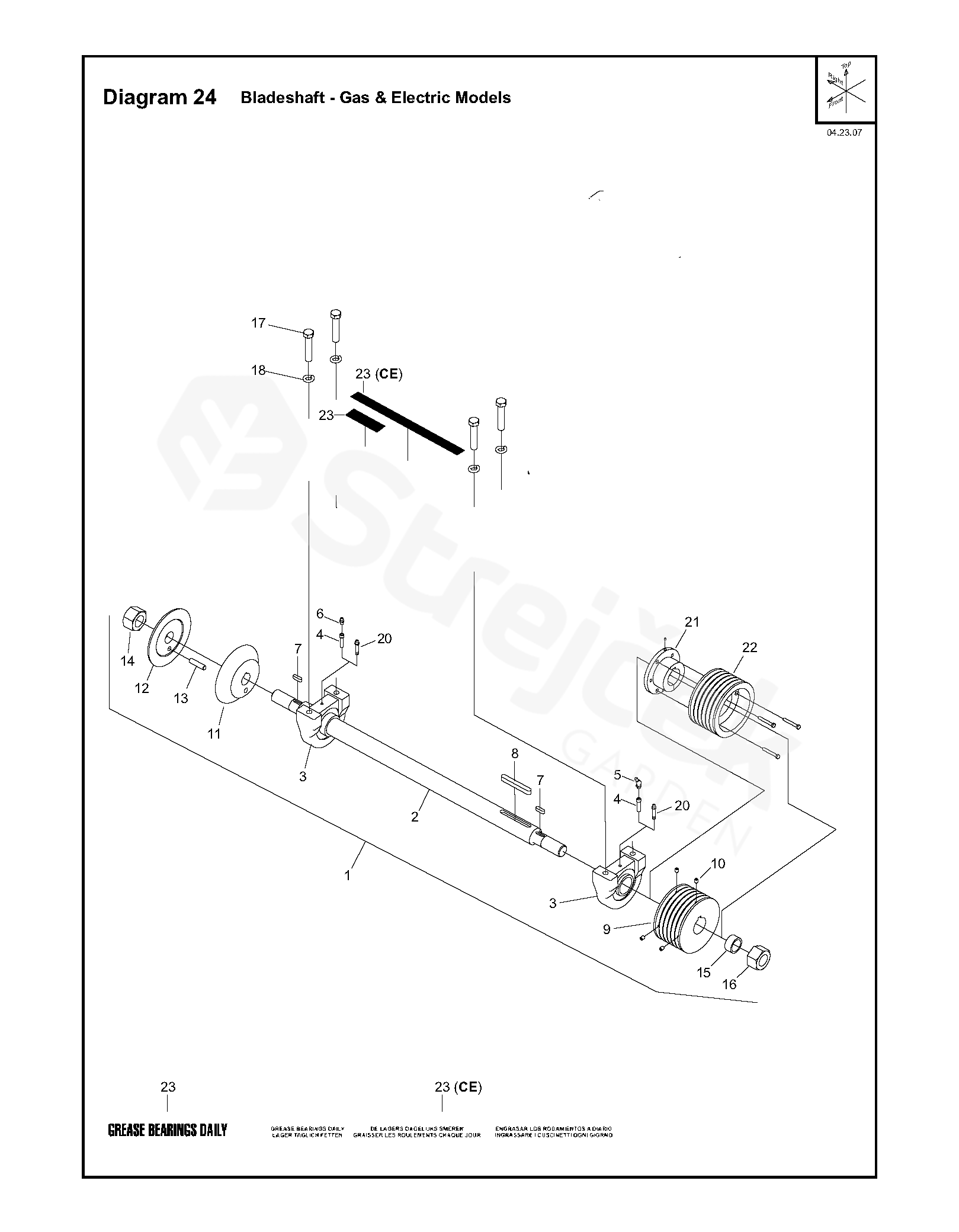

BLADESHAFT - GAS & ELECTRIC MODELS
FS3500 FS3500, 2007-10
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FS3500, 2007-10
1 BLADE SHAFT ASSY: 18-26" B/M 183147
2 BLADE SHAFT 164233
3 BEARING: BALL 1.438" 183144
4 GREASE 183637
5 GREASE FITTING 164296
6 FITTING. GREASE 110102
7 KEY. ROUND END .25 X .843 43054
8 KEY. SQ. RND END 3/8 x 2.75LG 183297
9 PULLEY 48667
10 SHSS. .25-20 x .375 CUP HK 20541
11 Flange. inner 45863
12 COLLAR. OUTER - 5" OD 167188
13 GOUPILLE 20304
14 NUT 20018
15 THREAD PROTECTOR SLEEVE 48732
16 NUT 20017
17 HHCS. .5-13 x 2.5 GR 5 Z/P 21403
18 LOCKWASHER. SPLIT .5 Z/P 20788
20 ETL RALLY REOX582TF/98 164243
21 BOLT.SHOULDER *SUBS/2* 183465
22 PULLEY 183464
23 DECAL 40563
HHCS. .5-13 x 2.25 GR 5 Z/P 20344
23CE DECAL 40570
