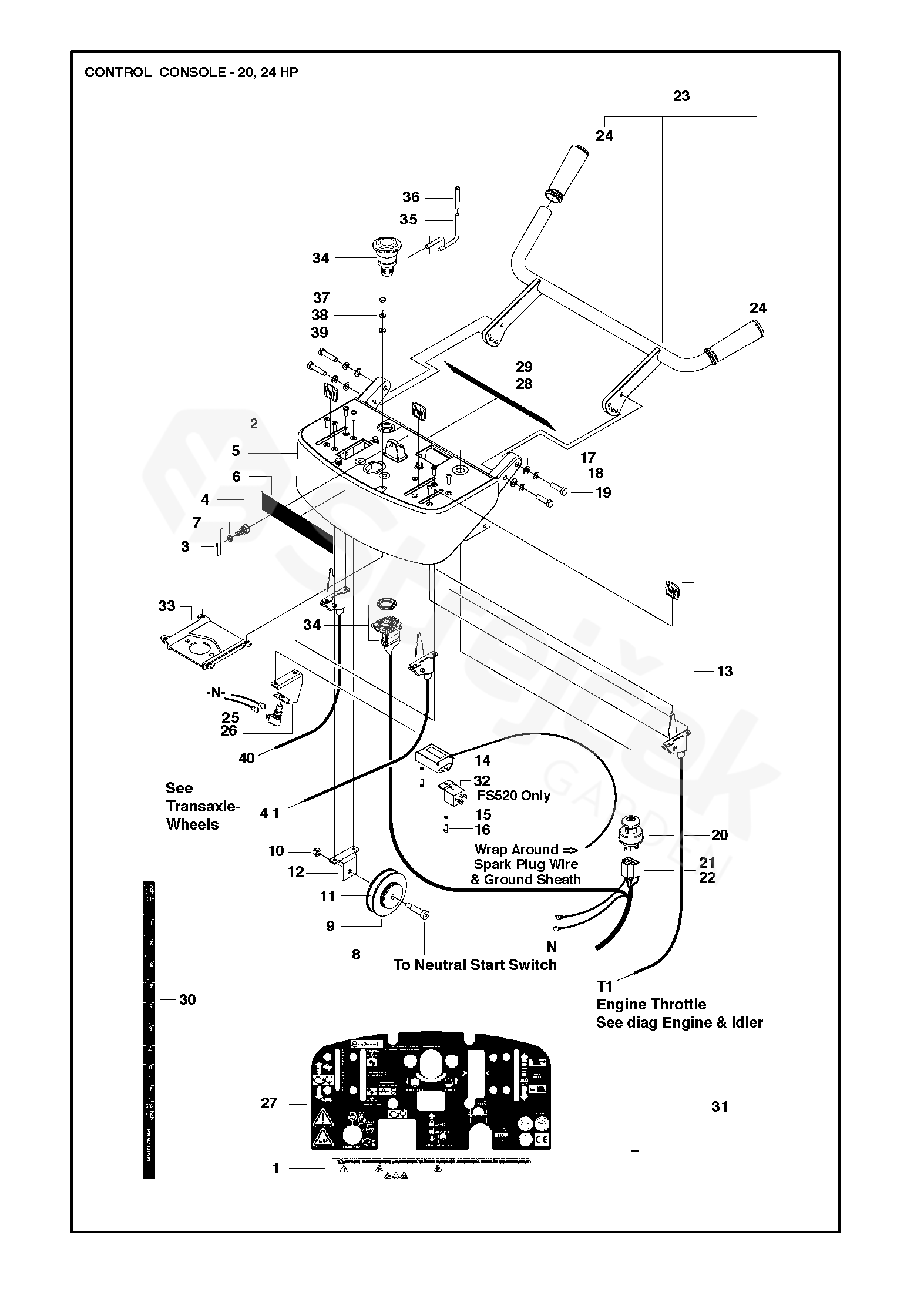

FS513/FS520/FS524 FS513/FS520/FS524, Valid to machines FS520-2149 and FS 524-1629, 2007-08 to 2011-02

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For FS513/FS520/FS524, Valid to machines FS520-2149 and FS 524-1629, 2007-08 to 2011-02

1	DECAL	542190638
2	SCREW CRPANM	724132951
3	PIN	721614301
4	SPRING	542204113
5	CONSOLE	586469001
6	DECAL	542190733
7	PODLOŽKA	734115201
8	BOLT	541208279
9	WHEEL	542202163
10	HEXAGON LOCKING NUT	732251871
11	DECAL	542190589
12	BRACKET	542202164
13	CABLE	587696901
14	HOUR METER	539300556
15	SPRING WASHER 4.1X7.1	735113601
16	SCREW EHHM	725229171
17	PODLOŽKA	734116301
18	PRUŽNÁ PODLOŽKA	735116401
19	SCREW EHHM	725245771
20	KEY SWITCH	542177920
21	WIRING HARNESS	542182250
22	WIRING HARNESS	542182274
23	HANDLEBAR	542204186
24	DRŽÁK	542139568
25	SWITCH	542204052
26	BRACKET	504068004
27	DECAL	502240103
28	DECAL	542190638
29	DECAL	502240103
30	DECAL	542190589
31	DECAL	542190733
32	RELAY	542166708
33	BRACKET	502856205
34	STOP SWITCH	582101501
35	LOCKING PIN	542204109
36	CAP	542202169
37	SCREW EHHM	725237071
38	PODLOŽKA	735115301
39	PODLOŽKA	734115201
40	CABLE KIT	581491301
41	CABLE ASSY	542202330
