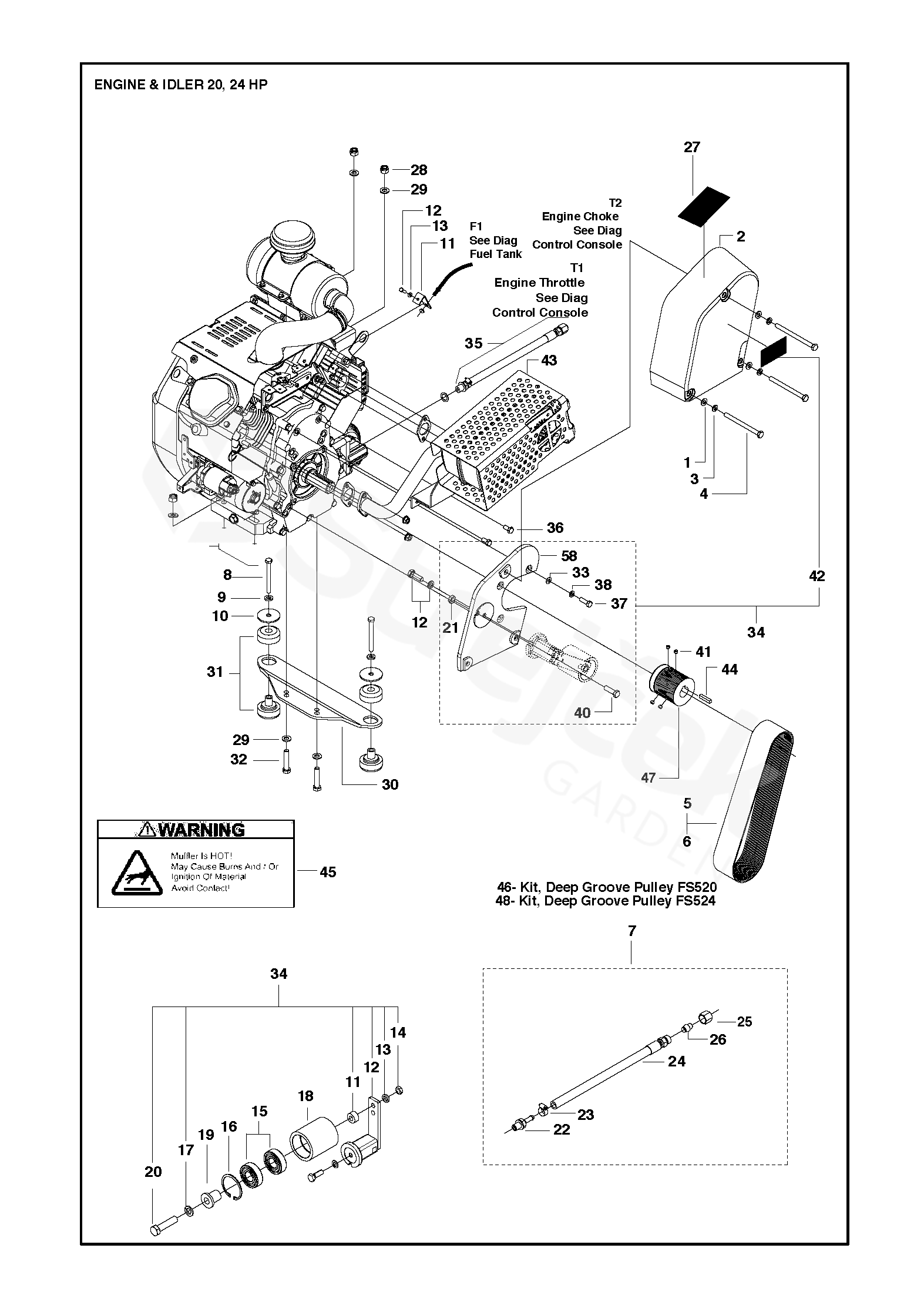

FS513/FS520/FS524 FS513/FS520/FS524, Valid to machines FS520-2149 and FS 524-1629, 2007-08 to 2011-02

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For FS513/FS520/FS524, Valid to machines FS520-2149 and FS 524-1629, 2007-08 to 2011-02

1	PODLOŽKA	734116301
2	BELT GUARD	542202122
3	PRUŽNÁ PODLOŽKA	735116401
4	SCREW EHHM	725247351
5	BELT	542202149
6	BELT	504068301
7	OIL DRAIN ASSY	542204181
8	SCREW EHHM	725250551
9	PRUŽNÁ PODLOŽKA	735117301
10	PODLOŽKA	542202106
11	SPACER	586091101
12	BELT TENSIONER	586195901
13	WASHER	735117801
14	HEXAGON THIN NUT	731432201
15	BALL BEARING	542139273
16	CIRCLIP	735314010
17	PODLOŽKA	734117801
18	SHEAVE	541208195
19	SPACER	541208194
20	SCREW EHHM	725254651
21	LOCK NUT	732211801
22	ADAPTER	501971301
23	CLAMP, HOSE, MAH-4 FUEL LINE	539300072
24	HOSE ASSY	542202152
25	NUT	542167622
26	CAP	542167306
27	DECAL	542169065
28	HEXAGON LOCKING NUT	732252001
29	HEXAGON NUT	734117201
30	PLATE	542204179
31	ISOLATOR	542161196
32	SCREW EHHM	725250151
33	PODLOŽKA	734116301
34	BELT	586308201
35	OIL DRAIN ASSY	542204181
36	SCREW EHHFM	725244971
37	BOLT	541205197
38	PRUŽNÁ PODLOŽKA	735116401
40	SCREW IHSCM	725545701
41	SCREW	542139768
42	DECAL	586239301
43	MUFFLER	521935201
44	KEY	539912757
45	DECAL	542169065
46	REPAIR KIT	504805502
47	PULLEY	504736502
48	REPAIR KIT	504805501
58	PLATE	586091502
