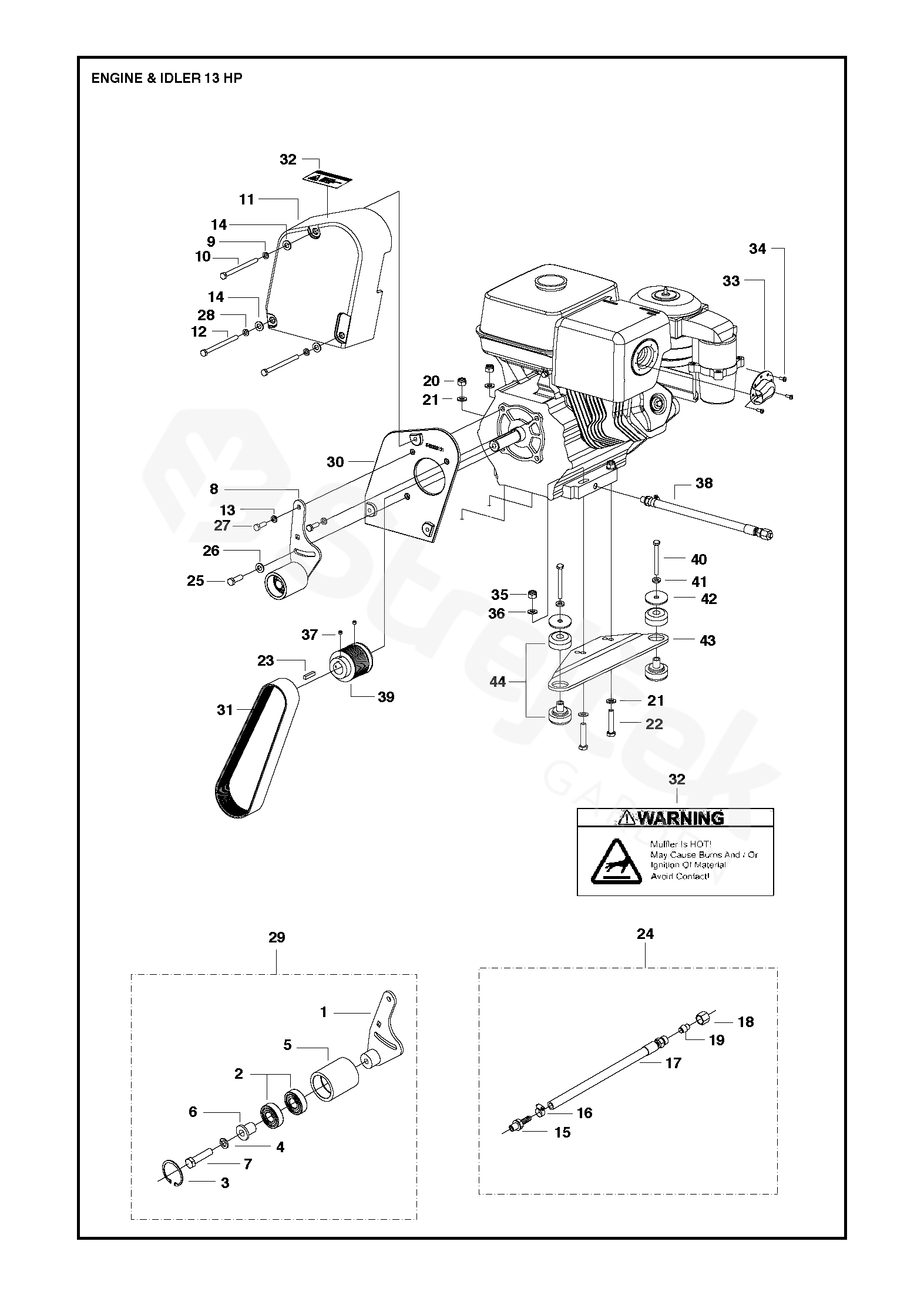

Spare parts - Partlist - FS513/FS520/FS524 FS513/FS520/FS524, Valid for Machine numbers FS520-2150, FS524-1630 and forward, 2011-02 - ENGINE & IDLER

Everything for your machines

FS513/FS520/FS524 FS513/FS520/FS524, Valid for Machine numbers FS520-2150, FS524-1630 and forward, 2011-02

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For FS513/FS520/FS524, Valid for Machine numbers FS520-2150, FS524-1630 and forward, 2011-02

1	BRACKET	541208190
2	BALL BEARING	542139273
3	CIRCLIP	735314010
4	WASHER	735117801
5	SHEAVE	541208195
6	SPACER	541208194
7	SCREW EHHM	725254251
8	IDLER SHEAVE ASSEMBLY	541208196
9	PRUŽNÁ PODLOŽKA	735116401
10	BOLT	725247171
11	BELT GUARD	542202122
12	SCREW EHHM	725247351
13	PRUŽNÁ PODLOŽKA	735116401
14	PODLOŽKA	734116301
15	ADAPTER	542167133
16	CLAMP, HOSE, MAH-4 FUEL LINE	539300072
17	HOSE ASSY	542202152
18	NUT	542167622
19	CAP	542167306
20	HEXAGON LOCKING NUT	732252001
21	HEXAGON NUT	734117201
22	SCREW EHHM	725250151
23	KEY	539912757
24	OIL	542202151
25	SCREW	539976941
26	RONDEL RESSOR 23X10,2X1/	543044732
27	BOLT	541205197
28	PRUŽNÁ PODLOŽKA	735116401
29	IDLER SHEAVE ASSEMBLY	541208196
30	BELT GRD PLATE TRIM-PC H.GREY	542204180
31	BELT	542202150
32	DECAL	542169065
33	BOUCHON ECHAPPEMENT/UNIVERSEL HONDA	543047841
34	DEFLECTOR	541200986
35	HEXAGON LOCKING NUT	732252001
36	HEXAGON NUT	734117201
37	SCREW	542139768
38	OIL	542202151
39	SHEAVE PK.67MM.25.4MM.12G.B/O	542202238
40	SCREW EHHM	725250551
41	PRUŽNÁ PODLOŽKA	735117301
42	PODLOŽKA	542202106
43	PLATE	542204179
44	ISOLATOR	542161196
