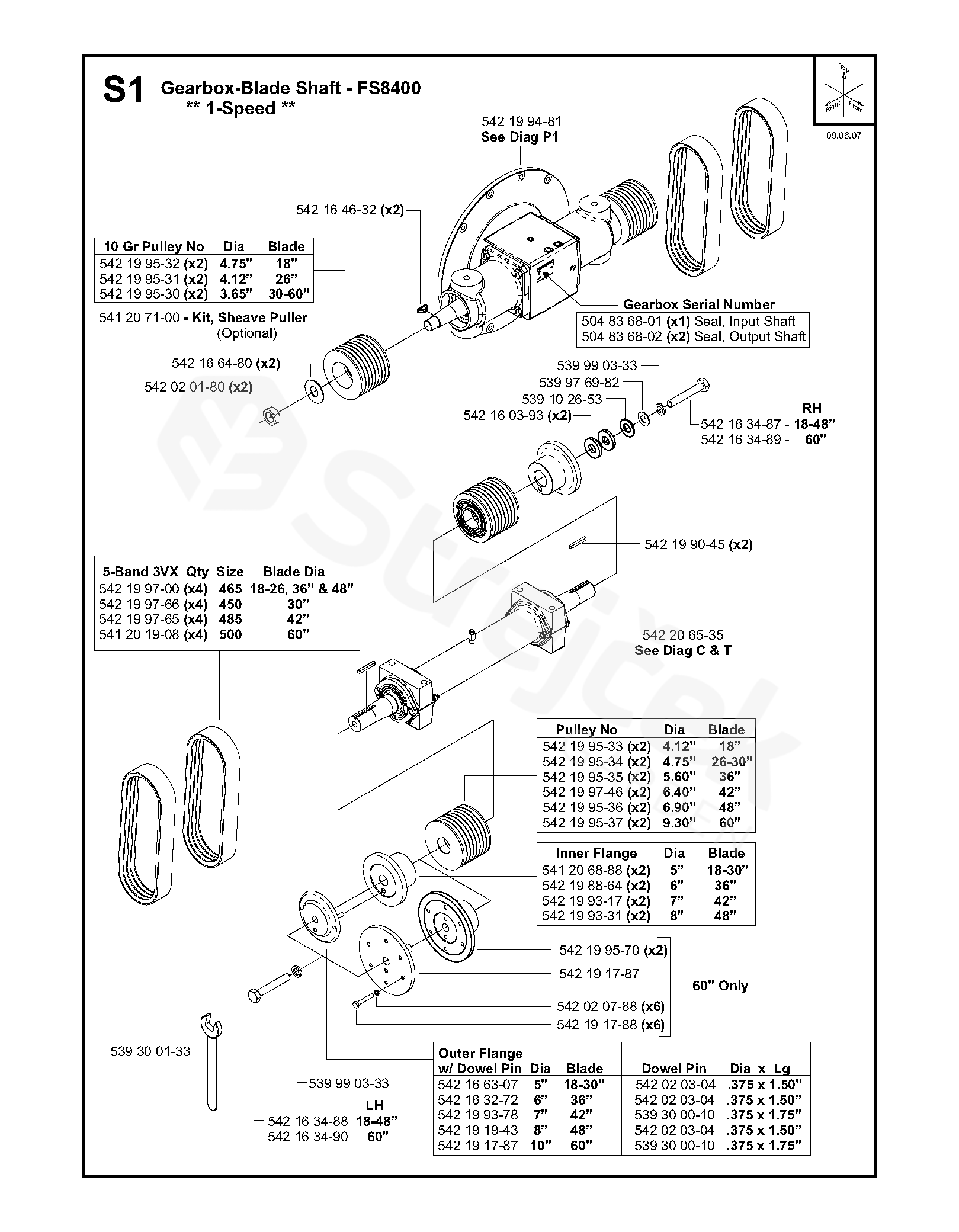

FS8400 FS8400, 2007-36

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For FS8400, 2007-36

504836801	SEAL	504836801
504836802	SEAL	504836802
539102653	PODLOŽKA	539102653
539300010	KOLÍČEK "14""-30"""	539300010
539300133	WRENCH	539300133
539976982	WASHER	539976982
539990333	PODLOŽKA	539990333
541201908	V-BELT	541201908
541206888	FLANGE	541206888
541207100	SHEAVE	541207100
542020180	FS1200T NUT - JAM 1"-14/"	542020180
542020304	PIN	542020304
542020788	FS900T RINGS/	542020788
542160393	FS900T RING/	542160393
542163272	COLLAR	542163272
542163487	SCREW	542163487
542163488	SCREW	542163488
542163489	SCREW	542163489
542163490	SCREW	542163490
542164632	FS1200T KEY - WOODRUFF/	542164632
542166307	COLLAR	542166307
542166480	PODLOŽKA	542166480
542191787	FLANGE	542191787
542191788	SCREW	542191788
542191943	FLANGE	542191943
542198864	FLANGE	542198864
542199045	KEY	542199045
542199317	FLANGE	542199317
542199331	FLANGE	542199331
542199378	COLLAR	542199378
542199481	GEARBOX	542199481
542199530	PULLEY	542199530
542199531	PULLEY	542199531
542199532	PULLEY	542199532
542199533	PULLEY	542199533
542199534	PULLEY	542199534
542199535	PULLEY	542199535
542199536	PULLEY	542199536
542199537	SHEAVE	542199537
542199570	FLANGE	542199570
542199700	V-BELT	542199700
542199746	PULLEY	542199746
542199765	V-BELT	542199765
542199766	V-BELT	542199766
542206535	BLADE SHAFT	542206535
