Spare parts > Husqvarna Construction Products > FLOOR SAWS > FS6800 YAN T3 FS6800 YAN T3, 2009-10 > UPPER FRAME
Back to

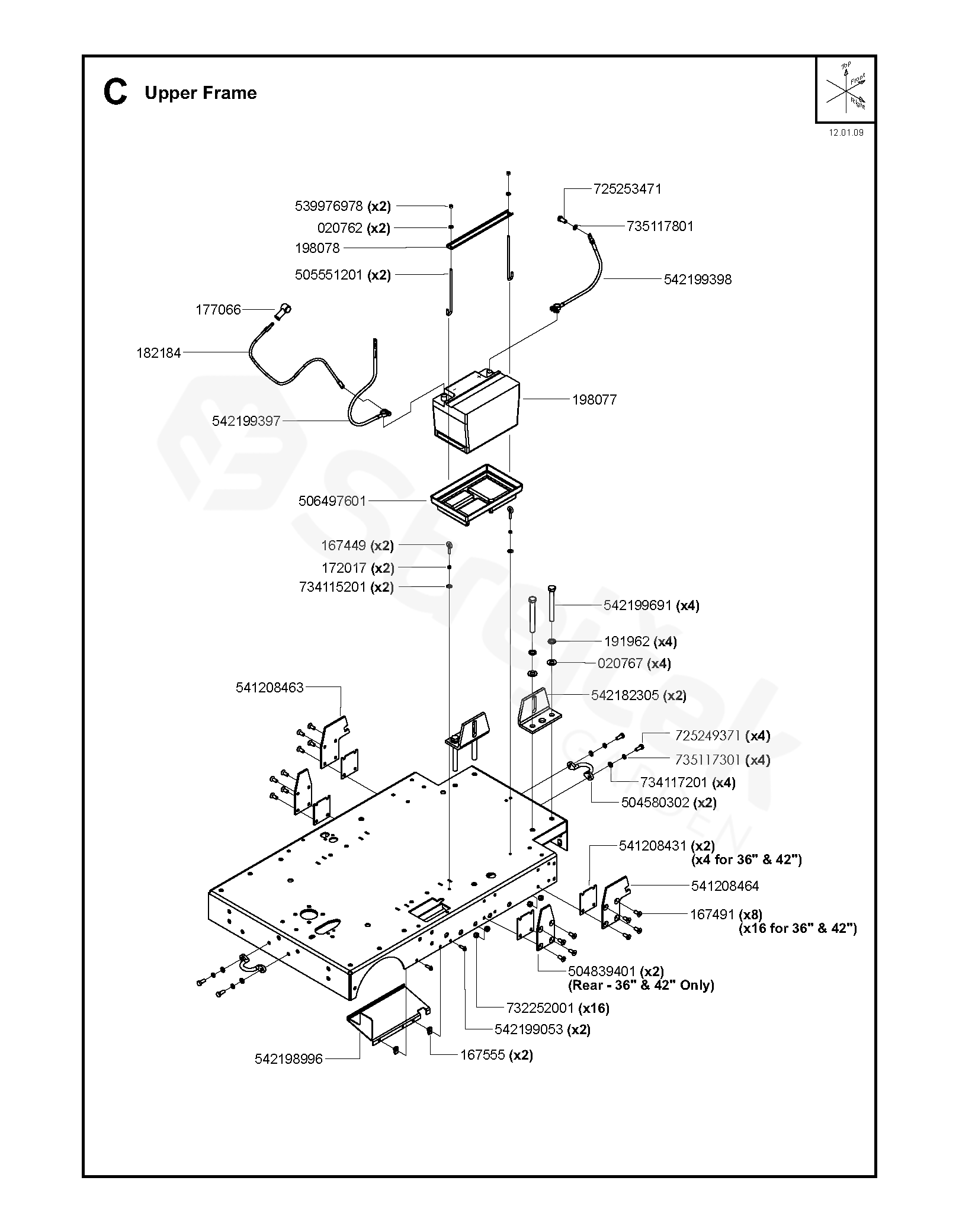

UPPER FRAME
FS6800 YAN T3 FS6800 YAN T3, 2009-10
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FS6800 YAN T3, 2009-10
020762 WASHER 20762
020767 WASHER 20767
167449 EYEBOLT. M6x1.0x50mm OAL 167449
167491 SHCS. CSK M10 x 1.5 x 25mm 167491
167555 U-NUT.M8 x 1.25 (.8-4 mm MATL) 167555
172017 NUT 172017
177066 *RUBBER BOOT. BATT TERM./BLACK 177066
182184 CABLE 182184
191962 WASHER 191962
198077 BATTERY GROUP 48 198077
198078 DECAL 198078
504580302 LOOP 504580302
504839401 SPADE 504839401
505551201 BOLT 505551201
506497601 BATTERY BOX 506497601
539976978 MATICE 539976978
541208431 SPACER 541208431
541208463 PLATE 541208463
541208464 BRACKET 541208464
542182305 BRACKET 542182305
542198996 SHIELD 542198996
542199053 SCREW 542199053
542199397 CABLE ASSY 542199397
542199398 CABLE ASSY 542199398
542199691 SCREW 542199691
725249371 SCREW EHHM 725249371
725253471 SCREW EHHM 725253471
732252001 HEXAGON LOCKING NUT 732252001
734115201 PODLOŽKA 734115201
734117201 HEXAGON NUT 734117201
735117301 PRUŽNÁ PODLOŽKA 735117301
735117801 WASHER 735117801
