Spare parts > Husqvarna > BRUSHCUTTERS/CLEARING SAWS > 233 RJ 233 RJ, 2009-01 > CYLINDER PISTON
Back to

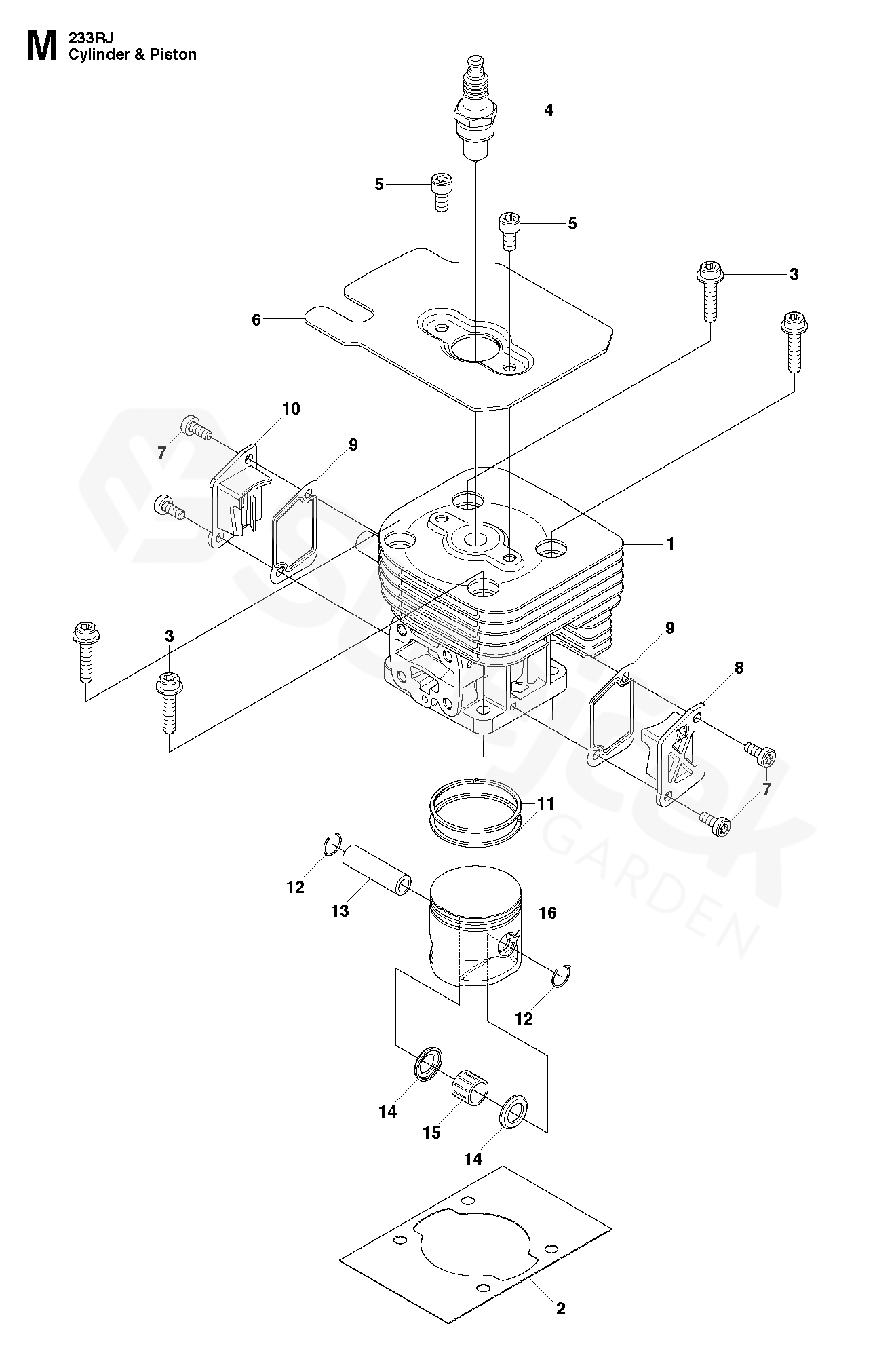

CYLINDER PISTON
233 RJ 233 RJ, 2009-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 233 RJ, 2009-01
1 CYLINDER 525312501
2 GASKET 521754801
3 BOLT 506616001
4 SPARK PLUG 506615101
5 BOLT 506616101
6 PLATE 525313201
7 BOLT 521515601
8 COVER 521614501
9 GASKET 521614801
10 COVER 521614701
11 RING 521755401
12 SNAP RING 520965001
13 PEN 521800501
14 WASHER 516437201
15 BEARING 520965301
16 PISTON 525312801
