Spare parts > Husqvarna Construction Products > POWER CUTTERS > K1250 Active K1250 Active, 2010-02 > CARBURETOR
Back to

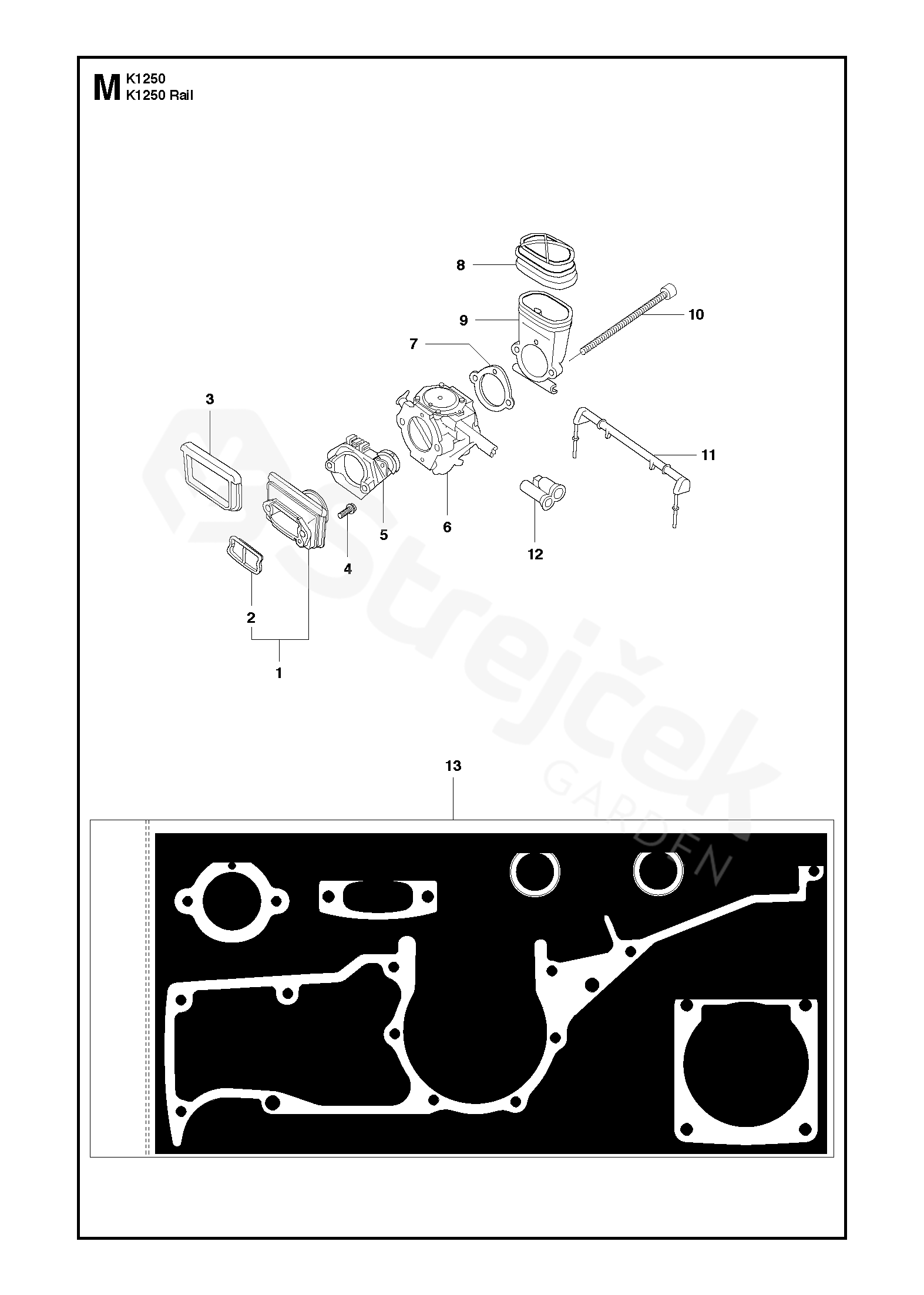

CARBURETOR
K1250 Active K1250 Active, 2010-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K1250 Active, 2010-02
1 FLANGE Incl. 13 - 14
Incl. 2 		506275202
2 INSERT 506313801
3 SEALING 503143701
4 SCREW IHSCFM 503200220
5 FLANGE 506289701
6 CARBURETTOR 503281217
7 GASKET
Gasket kit 13 		506274301
8 BELLOWS 506250201
9 INLET BEND 506241301
10 SCREW IHSCFT 503217565
11 OPĚRNÁ MISKA 506250401
12 CHISEL GUIDE 506254601
13 GASKET KIT
Incl. 7, 14 - 17 		506292402
14 GASKET 503131304
15 SEALING RING 503260205
16 CRANKCASE 503134501
17 GASKET 503134601
