AUTOMATIC VALVE 2060 U AUTOMATIC VALVE 2060 U - 3/4", Art. 1240-20, until 2001

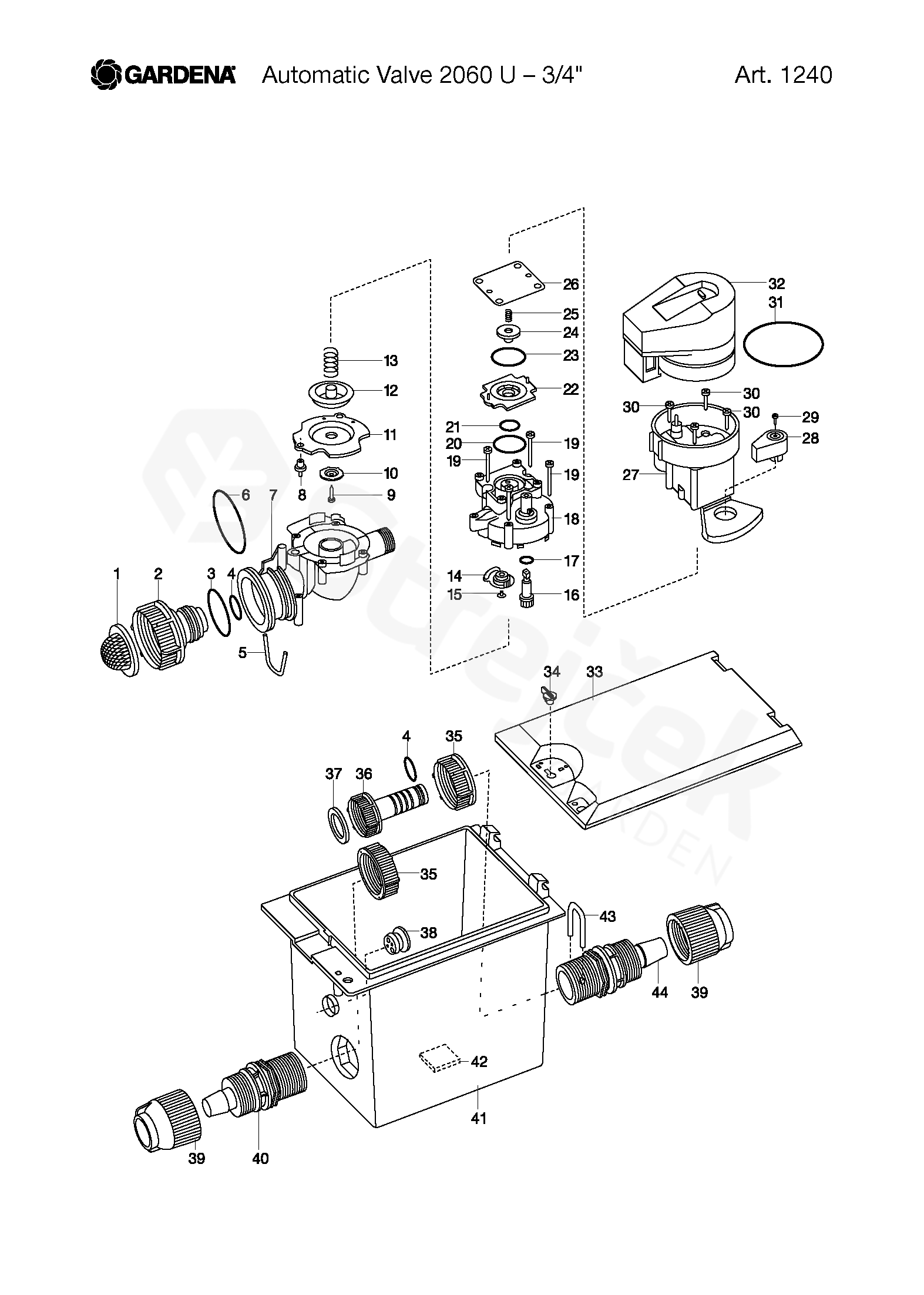

Najeďte myší na rozkres

kolečko: přiblížení, levé tlačítko: pohyb

Další díly pro AUTOMATIC VALVE 2060 U - 3/4", Art. 1240-20, until 2001

1	FINE FILTER 1" 1815-00.614.00, not shown in image 1815-00.614.00	520419201
2	CONNECTING BUSH 1210-00.600.61 1210-00.600.61	520344401
3	O-RING 20.5X3.2 1192-00.600.01 1192-00.600.01	520343301
4	ORING 18.4X2.7 964-00.505.04 964-00.505.04	520336801
5	SVORKA 1210-00.600.52 1210-00.600.52	520344301
6	O-KROUŽEK 1940-00.610.18 1940-00.610.18	520424301
8	CONTROL NOZZLE RED 1815-00.610.27 1815-00.610.27	520419001
9	ŠROUB 882-00.007.11 882-00.007.11	520327501
10	SUPPORT CONE 1174-00.612.03 1174-00.612.03	520340801
11	MEMBRANE 1174-00.662.01 1174-00.662.01	520341401
12	DIAPHRAGM FLANGE RED 1174-00.612.02 1174-00.612.02	520340701
13	PRESSURE SPRING. LARGE 1174-00.610.08 1174-00.610.08	520340501
19	SHEET METAL SCREW 4.2X38 1182-00.600.02 1182-00.600.02	520341501
20	O-RING 18.72X2.62 1174-00.610.05 1174-00.610.05	520340301
21	O-RING 10,5X2,7 900-00.101.06 900-00.101.06	520331701
22	VALVE PLATE 1174-00.610.03 1174-00.610.03	520340101
23	O-RING 24X2 1672-00.600.11 1672-00.600.11	520402001
24	MAGNETIC PLATE COMPL. 1174-00.618.00 1174-00.618.00	525411201
25	PRESSURE SPRING. SMALL 1174-00.610.11 1174-00.610.11	520340601
26	COVER 1174-00.610.04 1174-00.610.04	520340201
27	VALVE BODY . CPL 1174-00.521.00 1174-00.521.00	520339901
28	PÁKA 1599-00.600.12 1599-00.600.12	520400201
29	SHEET METAL SCREW 2.2X9.5 1599-00.600.17 1599-00.600.17	520400301
31	O-RING 48.9X2.62 1182-00.620.13 1182-00.620.13	520341701
33	COVER 1240-00.600.06 1240-00.600.06	520345101
34	TURNING KNOB 1594-00.600.51 1594-00.600.51	520399501
35	NUT. LIGHT GREY 3815-00.600.06 3815-00.600.06	520490801
36	BALANCE TUBE 1240-00.600.16 1240-00.600.16	520345301
37	WASHER 25.1 X 3 1121-00.000.01 1121-00.000.01	520338501
38	SVORKA 1255-00.600.40 1255-00.600.40	520349401
39	LOCK NUT 3/4" 1240-00.600.26 1240-00.600.26	520345501
40	JOINING PIPE 1240-00.600.11 1240-00.600.11	520345201
42	PÁSEK 1240-00.600.31 1240-00.600.31	520345601
43	BOW 1240-00.600.41 1240-00.600.41	520345801
44	JOINING PIPE (2 HOLES) 1240-00.600.36 1240-00.600.36	520345701
130	ELECTROVALVE 1240-00.610.00 1240-00.610.00	520346001
1418	VALVE CAP. CPL 1240-00.615.00 1240-00.615.00	520346101
	ADAPTER CPL. 1303-1240 1308-00.900.01, not shown in image 1308-00.900.01, nezobrazeno v obraze	520352101
32,31	ŘÍDÍCÍ JEDNOTKA 1240-00.620.00 1240-00.620.00	520346201
