Spare parts > Husqvarna Construction Products > POWER CUTTERS > K970 RING K970 RING, 2011-12 > CYLINDER, PISTON & MUFFLER
Back to

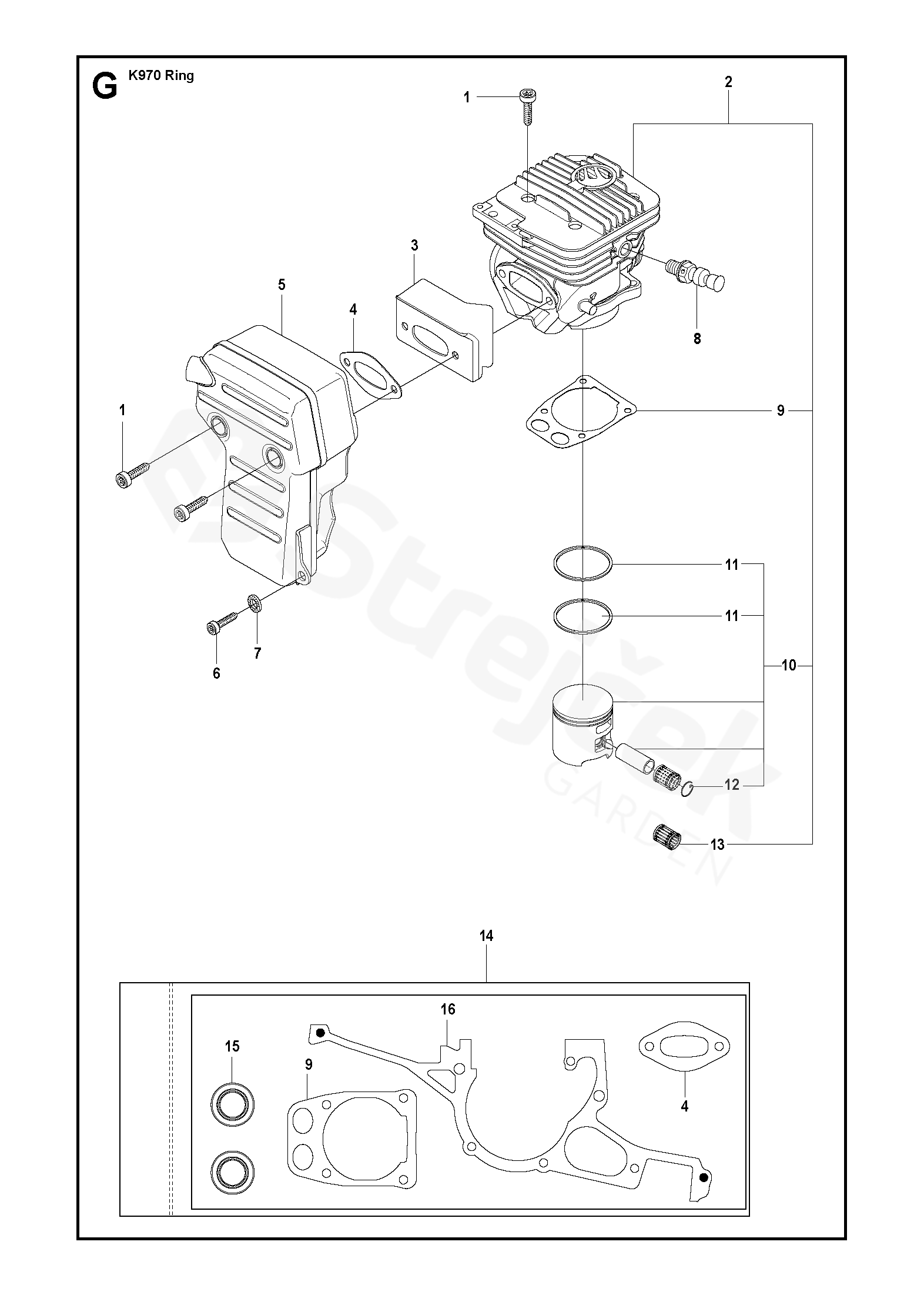

CYLINDER, PISTON & MUFFLER
K970 RING K970 RING, 2011-12
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K970 RING, 2011-12
1 SCREW ITXSCM 544218401
2 CYLINDER ASSY
Incl. 9 - 10, 13 		544935605
3 HEAT DEFLECTOR 577997602
4 GASKET 506378101
5 MUFFLER ASSY 506372801
6 SCREW ITXSCM 503215325
7 DECAL ROW 503230402
8 DECOMPRESSION VALVE 503665601
9 GASKET 576499401
10 PÍST
Incl. 11 - 12 		506413202
11 PÍSTNÍ KROUŽEK 503289035
12 CIRCLIP 737441300
13 JEHLOVÉ LOŽISKO 503256101
14 GASKET KIT
Incl. 4, 9, 15 - 16 		544229803
15 SEALING RING 503260204
16 GASKET 506413904
