Spare parts > Husqvarna Construction Products > POWER CUTTERS > K750 K750, Oilguard, Rescue, 2007-07 > CYLINDER, PISTON & MUFFLER
Back to

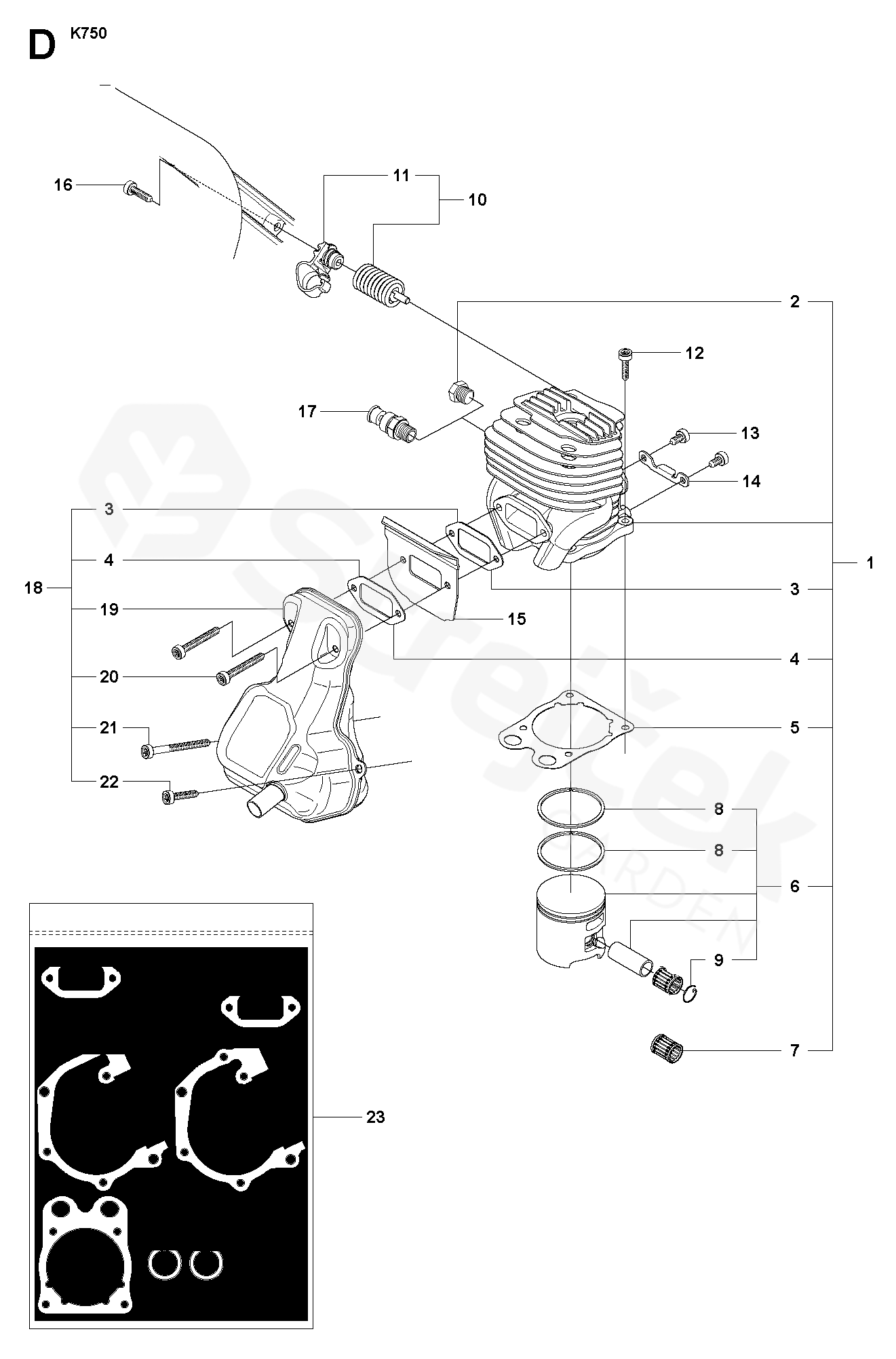

CYLINDER, PISTON & MUFFLER
K750 K750, Oilguard, Rescue, 2007-07
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K750, Oilguard, Rescue, 2007-07
1 CYLINDER ASSY Incl. 2 - 7
Incl. 2 - 7 		506386171
2 PLUG 503552201
3 GASKET 506412301
4 GASKET 506376902
5 CYLINDER 506376701
6 PÍST KOMPL.
Incl. 8, 9 		506372401
7 JEHLOVÉ LOŽISKO 503255601
8 PÍSTNÍ KROUŽEK 503289047
9 POJISTNÝ KROUŽEK 737431200
10 ANTIVIBRAČNÍ PRVEK
Incl. 11 		506389102
11 POJISTNÁ KROUŽEK 544020802
12 SCREW ITXSCM 503215325
13 SCREW ITXSCM 503215316
14 BRACKET 506368801
15 COOLING AIR CONDUCTOR 506375802
16 SCREW ITXSCT 503215420
17 DECOMPRESSION VALVE 503715301
18 MUFFLER KIT Incl. 3, 4, 19 - 22
Incl. 3, 4, 19 - 22 		544001402
19 MUFFLER ASSY 506364203
20 SCREW ITXSCM 503215341
21 SCREW ITXSCM 503215356
22 SCREW ITXSCM 503215321
23 GASKET KIT Incl. 3 - 5, 24 - 27
Incl. 3 - 5, 24 - 27 		506385304
24 GASKET 506377002
25 GASKET 506377003
26 INSERT 544219302
27 SEALING RING 503260204
