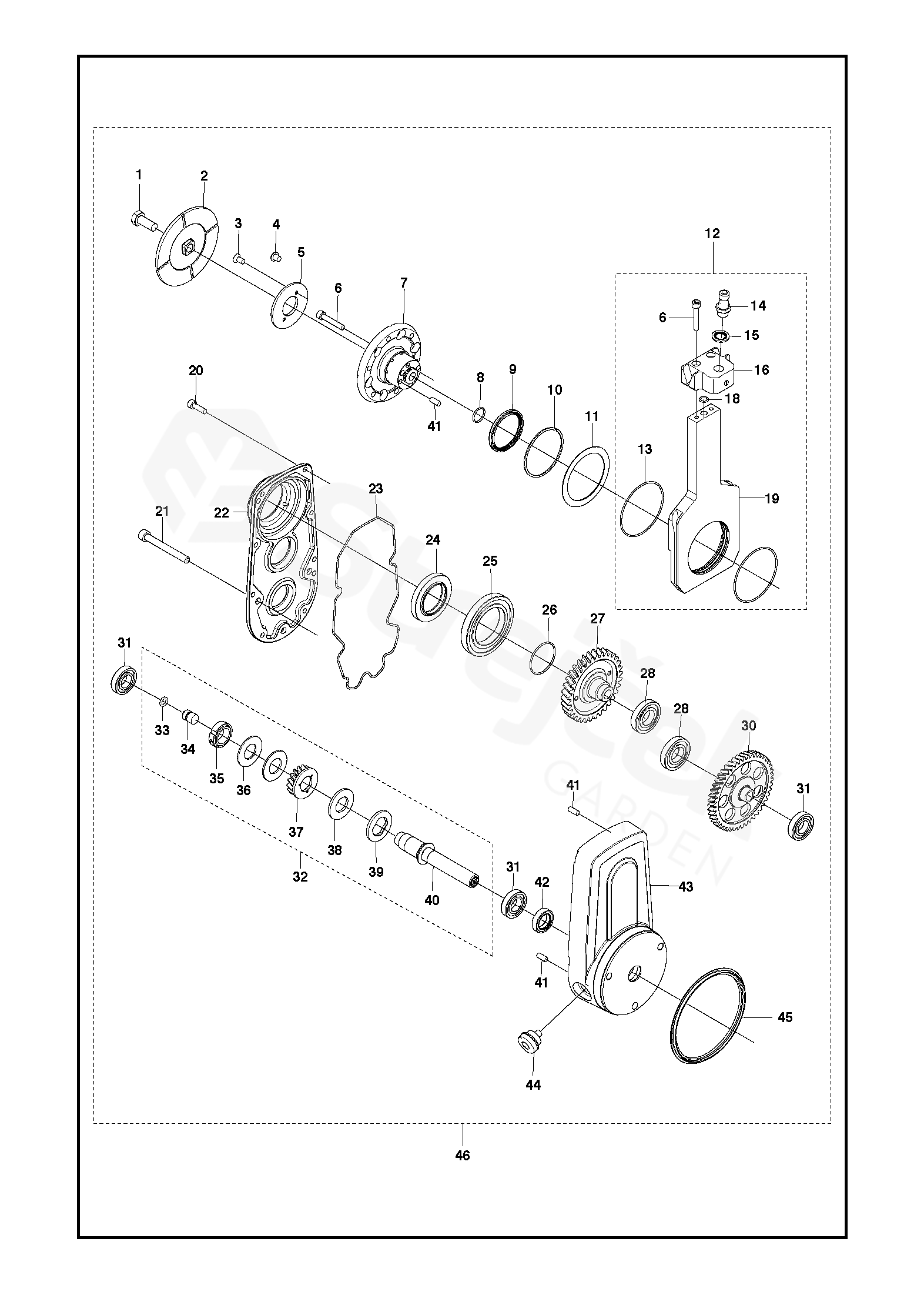

WS220 WS220, 2013-10

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For WS220, 2013-10

1	SCREW	581047801
2	FLANGE	575262901
3	SCREW IHCSFM	725636651
4	PLUG	531119517
5	ROZPĚRKA "NOT ON 1"""	531123048
6	SCREW	575285101
7	FLANGE	575262701
8	O-RING	575284301
9	SEAL	575283701
10	SNAP RING	575284801
11	WASHER	575284601
12	SLIDING SHOE	579107401
13	SEAL	575284401
14	QUICK COUPLING	505538001
15	SEALING WASHER	740382701
16	CONNECTION	588164002
18	O-KROUŽEK	740420600
19	SLIDING SHOE	581904701
20	SCREW IHSCM	725537001
21	SCREW	575285601
22	COVER	586859701
23	O-RING	575285001
24	SEAL	584234101
25	BEARING	531119159
26	O-RING	575284101
27	GEAR WHEEL	574979101
28	BEARING	576412901
30	GEAR ASSY	586305801
31	BEARING	574885001
32	SHAFT ASSY	583925401
33	O-RING	583935301
34	PIVOT	575277301
35	NUT	575283401
36	CUP	531119476
37	GEAR ASSY	583964901
38	WASHER	575277701
39	WASHER	575276401
40	SHAFT	575269501
41	PIN	504908326
42	SEAL	575283601
43	GEAR HOUSING	586858001
44	PLUG	531118113
45	RING	577919801
46	PIVOTING ARM	587184001
