Spare parts > Husqvarna Construction Products > POWER CUTTERS > K1270 K1270, K1270 Rail, 2016-07 > KLIKOVÁ SKŘÍŇ
Back to

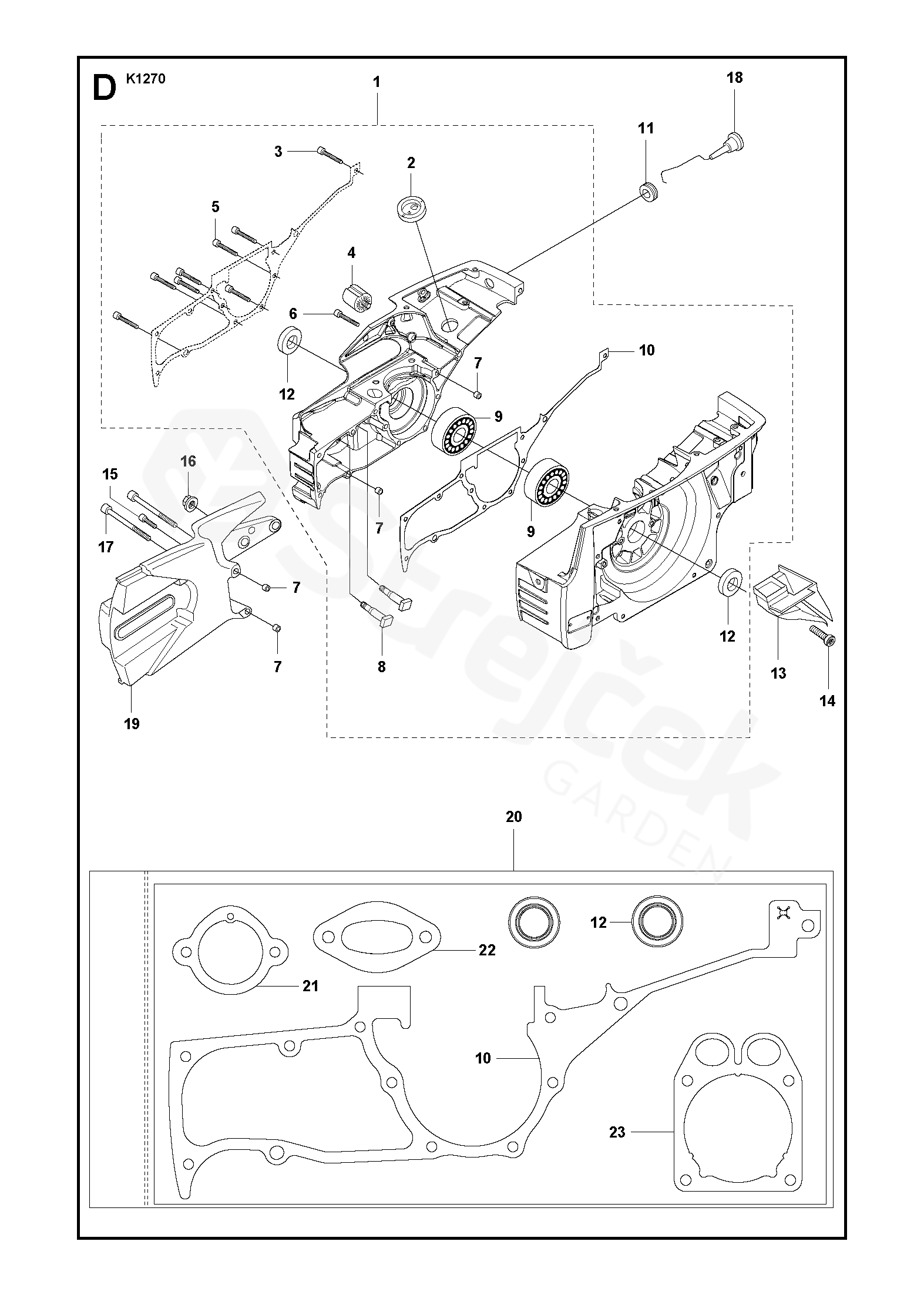

KLIKOVÁ SKŘÍŇ
K1270 K1270, K1270 Rail, 2016-07
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K1270, K1270 Rail, 2016-07
1 CRANKCASE ASSY 582603501
2 GROMMET 503132001
3 SCREW ITXSCM 503215320
4 ANTIVIBRAČNÍ PRVEK 501269705
5 SCREW ITXSCM 503215341
6 SCREW ITXSCM 544218420
7 GUIDE BUSHING 501270801
8 BAR BOLT 501815701
9 BALL BEARING 503250002
10 GASKET 582350001
11 GROMMET 503145402
12 SEALING RING 503260205
13 AIR NOZZLE 506237001
14 SCREW ITXSCM 501981001
15 SCREW ITXSCM 503215321
16 HEXAGON NUT 503220001
17 SCREW ITXSCM 503215365
18 CHOKE CONTROL 506254302
19 CUTTER ARM 506241404
20 GASKET KIT 582454801
21 GASKET 579851101
22 GASKET 585280901
23 GASKET 587536201
