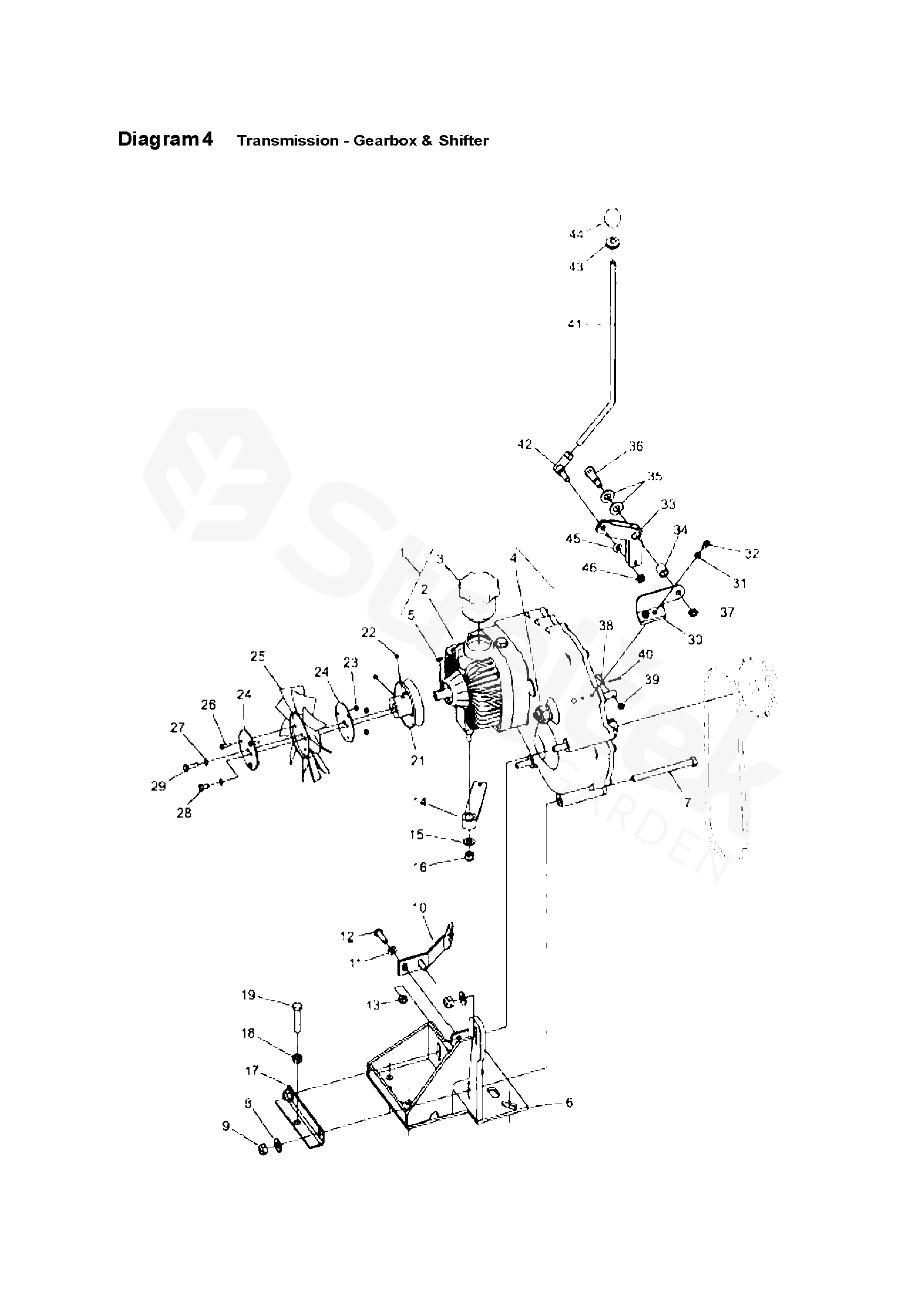

Spare parts - Partlist - FS3500 E FS3500 E, 2018-06 - TRANSMISSION

Everything for your machines

FS3500 E FS3500 E, 2018-06

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For FS3500 E, 2018-06

1	GEARBOX 1-Speed (lncls Items 2 - 5)	542166553
2	VARIATOR EATON TRANSMIS/ Hydrostatic	539300678
3	PLASTIC OIL RESERVOIR/ w/Cap and 0-Ring	542048326
4	SWITCH Neutral Safety	542166447
5	KEY Woodruff #404 (Flat Bottom)	539300749
6	GETRIEBEHALTERUNG Gearbox Mounting	542176516
7	SCREW EHHM Hex Hd M10 x 1.50 x 120	725251551
8	HEXAGON NUT Flat .375 Dia	734117201
9	HEXAGON LOCKING NUT Fiber M10 x 1.50	732252001
10	BRACKET	542176531
11	PODLOŽKA Flat MB	734116301
12	SCREW EHHM Hex Hd M8 x 1.25 x 30	725245571
13	HEXAGON LOCKING NUT Fiber MB x 1.25	732251801
14	ARM	542176533
15	HEXAGON NUT Flat M10	734117201
16	END BRACKET Fiber .375-16UNC	539976979
17	BRACKET	542176523
18	HEXAGON NUT Hex Hd M10 x 1.50	731232001
19	SCREW EHHM Hex Hd M10 x 1.50 x 50	725250171
21	V-BELT SHEAVE	542176535
22	SCREW Set Soc Cup Pt .250-20 x .375 Set Soc Cup Pt .250-20 x .375	542020568
23	HEXAGON LOCKING NUT Fiber M5 x 0.8	732251401
24	PLATE	542163040
25	BLADE	542163105
26	SCREW EHHM Hex Hd M5 x 0.8 x 16	725232971
27	LOCKWASHER Split .250 Dia (Hi-Collar)	542020776
28	HCS ¼-20 X ½ GR 5 ZD Hex Hd .250-20UNC x .50	539990071
29	BOLT Hex Hd .250-20UNC x .875 Hex Hd .250-20UNC x .875	542020381
30	PIVOT Shift Pivot	542176525
31	PODLOŽKA Split M6	735115301
32	SCHRAUBE/ Soc Hd M6 x 1.0 x 20mm Soc Hd M6 x 1.0 x 20mm	542167502
33	LINK Shifter	542181362
34	BEARING Bronze	542166607
35	PODLOŽKA Flat .500 SAE	539990250
36	SCREW .375-16UNC x .500 Shank x	542139022
37	NUT Jam Hex Hd .375-16UNC Jam Hex Hd .375-16UNC	505732501
38	BEARING Clevis .188 Dia x 1.0	542166601
39	WASHER Flat #10 SAE	542020739
40	PIN Cotter .094 x .75	542020612
41	ROD Rod, Pro35 Std	542181359
42	BALL .375-24UNF RH	542166690
43	GROMMET 7/1610 x 11/16 Dia Hole	542181361
44	KNOB Black	542041427
45	PODLOŽKA Split .375 Dia	539990118
46	MUTTER/ HEX JAM THIN .375-24 Z/P	542020171
