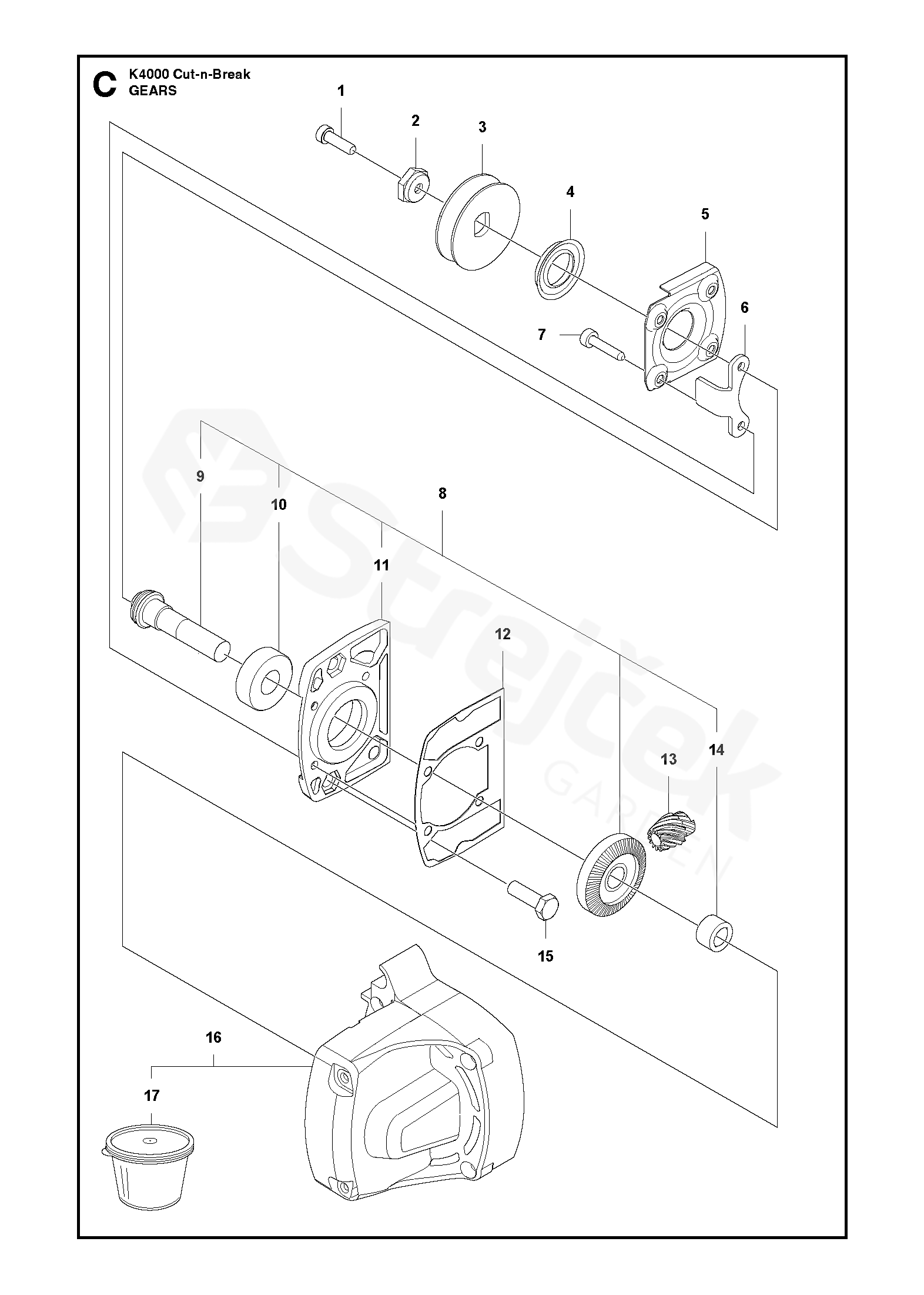

Spare parts > Husqvarna Construction Products > POWER CUTTERS > K 4000 Cut-n-Break K 4000 Cut-n-Break, 2018-02 > GEARS
Back to
GEARS
K 4000 Cut-n-Break K 4000 Cut-n-Break, 2018-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K 4000 Cut-n-Break, 2018-02
1 SCREW ITXSCM 544218420
2 ROZPĚRNÉ POUZDRO 504038301
3 DRIVING PULLEY 544433901
4 SEALING 506320601
5 FLANGE 544434101
6 BRACKET 544433701
7 SCREW ITXSCM 503215325
8 GEAR SET Incl. 10 - 12
Incl. 9 - 11 		544426601
9 GEAR WHEEL SHAFT 544426401
10 BALL BEARING 583953301
11 GEAR HOUSING 588073501
12 GASKET 504110303
13 PASTOREK 505454101
14 JEHLOVÉ LOŽISKO 503255301
15 SCREW EHHM 725245371
16 GEAR HOUSING Incl. 17
Incl. 17 		574214303
17 GREASE 574203001
