Spare parts > Gardena > Husqvarna Smart System > R70Li R70Li, 2018- > COVER
Back to

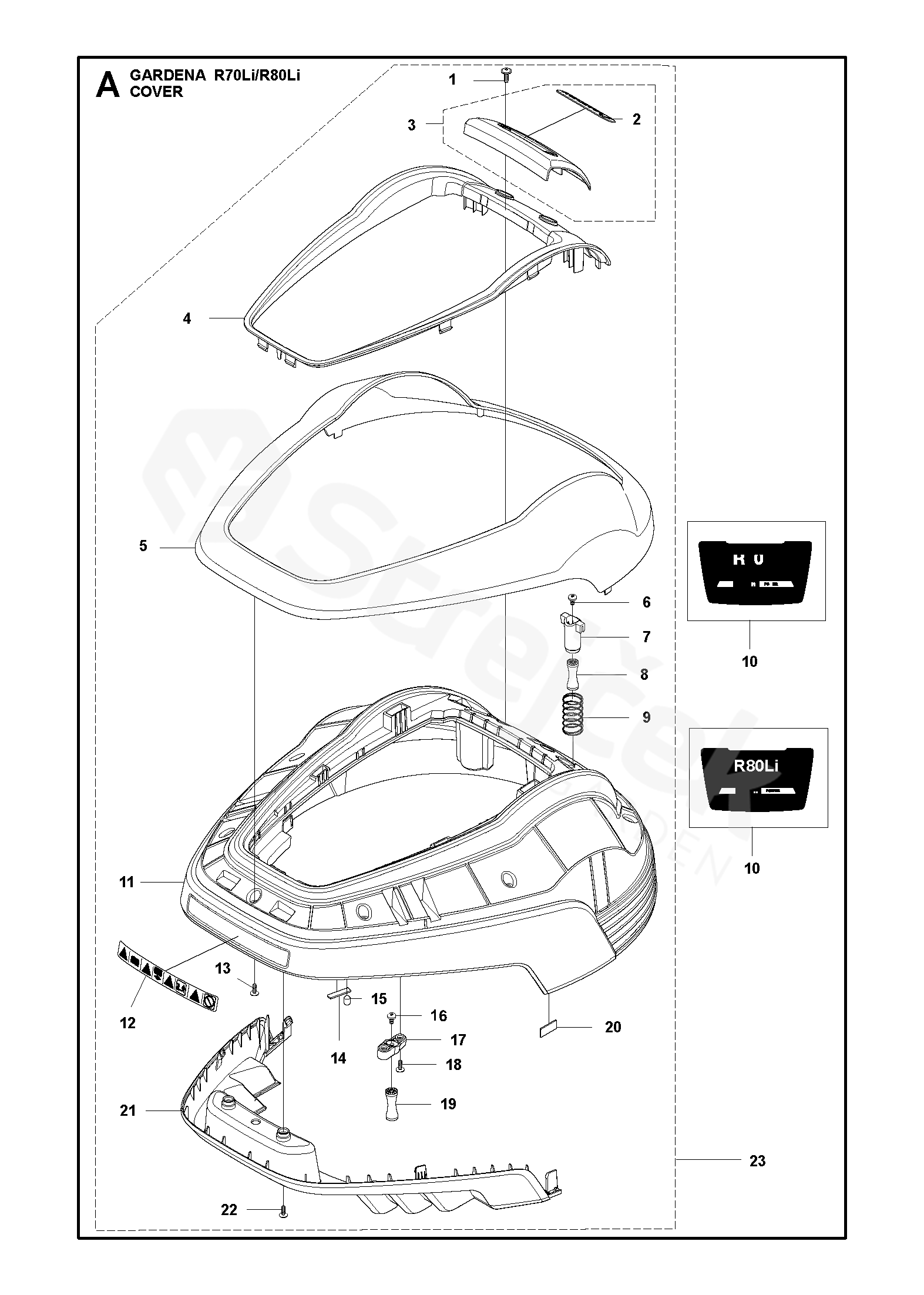

COVER
R70Li R70Li, 2018-
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For R70Li, 2018-
1 SCREW
Screw, Grey (14 mm) 		575543314
2 LOGOTYPE
Decal, Gardena Logotype 		510310301
3 PLATE KIT
Logo Plate KIT incl. Sticker & Decal 		579392105
4 FRAME
Frame 		577707603
5 COVER Cover
Cover 		577707304
6 SCREW
Screw M5x12 		590740201
7 BRACKET
Bracket, Lift Sensor 		574469002
8 DAMPER
Rubber Damper 		574469102
9 SPRING
Spring, Lift Sensor 		574485102
10 LABEL Decal, R80Li
Decal, R80Li 		587043502
11 KIT
Main Body 		579391702
12 LABEL
Warning Label 		586359701
13 SCREW
Screw, Grey (14 mm) 		575543314
14 PLATE
Plate, Collision Sensor 		576030101
15 MAGNET
Magnet, Collision Sensor 		576183301
16 SCREW
Screw M5x12 		590740201
17 SUPPORT CLAMP
Support Clamp 		575416002
18 SCREW
Screw, Grey (14 mm) 		575543314
19 DAMPER
Rubber Damper 		574469102
20 MAGNET
Magnet, Lift Sensor 		576183202
21 BUMPER Bumper, Rear
Bumper, Rear 		577706502
22 SCREW
Screw, Grey (14 mm) 		575543314
23 BODY SYSTEM Cover KIT, Complete excl. Model Decal
Cover KIT, Complete excl. Model Decal 		577955312
