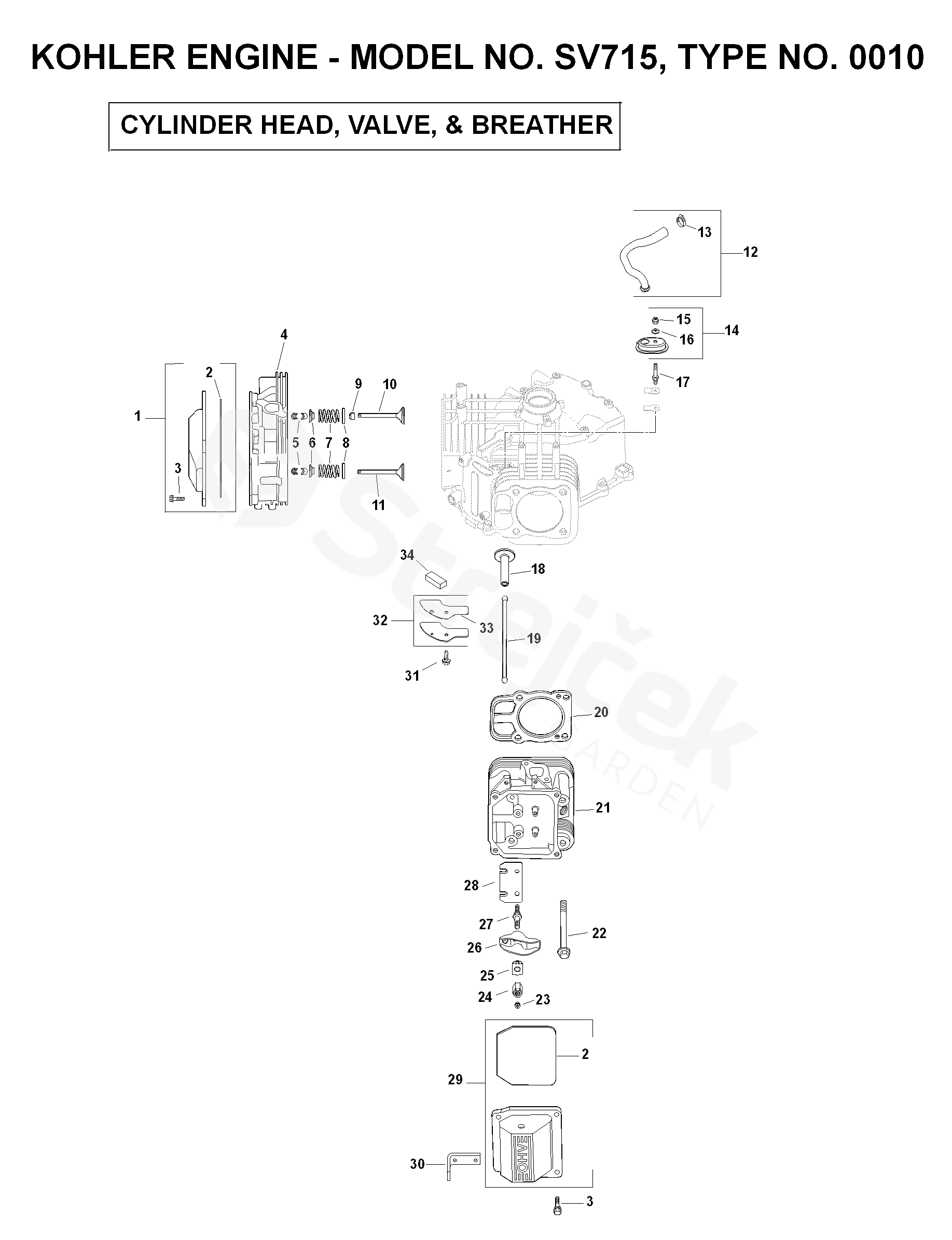

KOHLER ENGINES KOHLER COURAGE 22 HP, SV715-0010, 2007-05
>
CYLINDER
Back to
KOHLER ENGINES
KOHLER COURAGE 22 HP, SV715-0010, 2007-05
CYLINDER
KOHLER ENGINES
KOHLER COURAGE 22 HP, SV715-0010, 2007-05
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
KOHLER COURAGE 22 HP, SV715-0010, 2007-05
1
PROTECTOR (INCLUDES 2[QTY 1], 3[QTY 4])
531029875
2
O-RING
531029915
3
SCREW (INCLUDES 26 [QTY. 4] & HEAD GASKET)
531029914
4
CYLINDER
504576701
5
RETAINER
531029717
6
HUB CAP
544839301
7
SPRING
531029715
8
RETAINER
531029714
9
SEALING
531029713
10
VALVE
531029711
11
VALVE
531029709
12
HOSE (INCLUDES 13[QTY 1])
531029945
13
CLAMP
531029604
14
CYLINDER
504576701
15
NUT
531029805
16
WASHER
531029946
17
STUD
531029948
18
TAPPET
531029962
19
ROD
531029963
20
GASKET
544810101
21
CYLINDER
531029964
22
SCREW
531029703
23
NUT
504575501
24
SCREW KIT
504575401
25
PIVOT
504575601
26
ARM
531029965
27
STUDS
504575901
28
PLATE
504576201
29
COVER
544840701
30
STRAP
531029708
31
SCREW
531029762
32
COVER (INCLUDES 33)
531029951
33
GASKET
531029952
34
FILTER
531029953
VALVE
504576901
