Spare parts > Husqvarna > CHAIN SAWS > T525 T525 > CARBURETOR
Back to

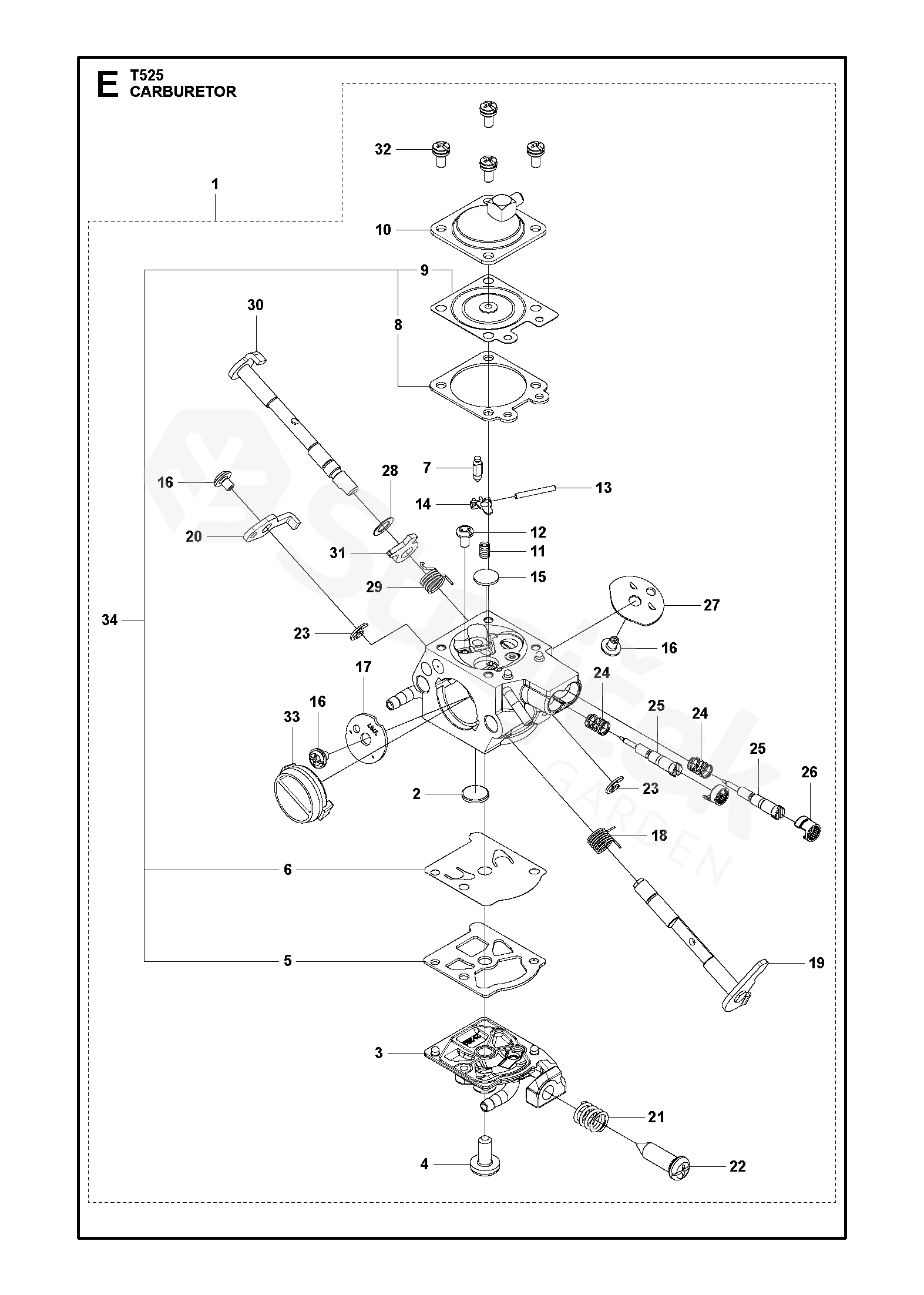

CARBURETOR
T525 T525 (970737510 - 7333377531109, 967633410 - 7393089395468, 967633411 - 7391736362207)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For T525
1 CARBURETTOR 587870501
2 SCREEN 520957001
3 COVER ASSY 590219101
4 SCREW 520976301
5 GASKET 520954801
6 DIAPHRAGM PUMP 502213601
7 VALVE.INLET 521085401
8 GASKET 516972101
9 DIAPHRAGM 505306801
10 COVER 522646001
11 SPRING 511967601
12 SCREW 520977301
13 KOLÍČEK 520977401
14 LEVER 520977201
15 PLUG 516342901
16 SCREW 520759801
17 VALVE 590219301
18 SPRING 590219401
19 SHAFT ASSY 590219501
20 LEVER 590219701
21 PRUŽINA 513593201
22 SCREW 577815701
23 KROUŽEK 505056501
24 PRUŽINA 578912801
25 NEEDLE HIGH SPEED 579190901
26 CAP 578913001
27 VALVE 521790001
28 PODLOŽKA 516524201
29 SPRING 590219801
30 SHAFT ASSY 590219901
31 LEVER 521581101
32 SCREW ASSY 520978801
33 RING 590237301
34 GASKET KIT 585597401
