Spare parts > Husqvarna Construction Products > TILE SAWS > MS 610 MS 610, 2018-08 > HEAD PLATFORM
Back to

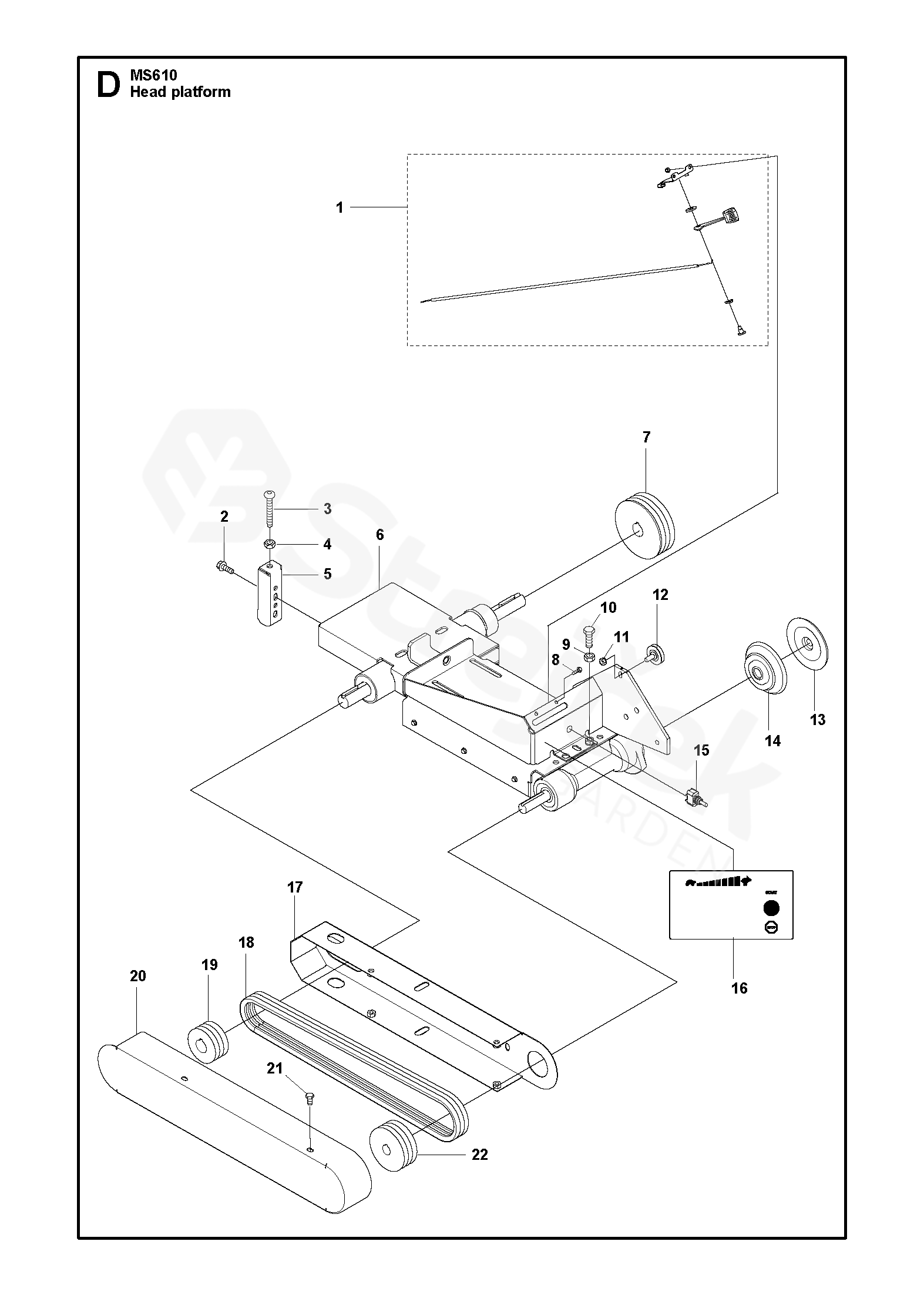

HEAD PLATFORM
MS 610 MS 610, 2018-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MS 610, 2018-08
1 CABLE 587696901
2 SCREW EHHFM 585975401
3 SCREW 542206324
4 HEXAGON THIN NUT 731431801
5 BRACKET 591200801
6 ARM 590377101
7 PULLEY 542195406
8 SCREW EHHFM 585980501
9 MUTTER/ 542020171
10 SCREW 542168133
11 NUT 542032366
12 BEARING 523075201
13 FLANGE 542030951
14 COLLAR 542177973
15 SWITCH 542199648
16 DECAL 592787401
17 GUIDE BAR 542195232
18 V-BELT 542045398
19 PULLEY 542139683
20 BELT GUARD 542205346
21 BOLT 592858701
22 PULLEY 542195235
