STIGA
>
Lawn Mower
>

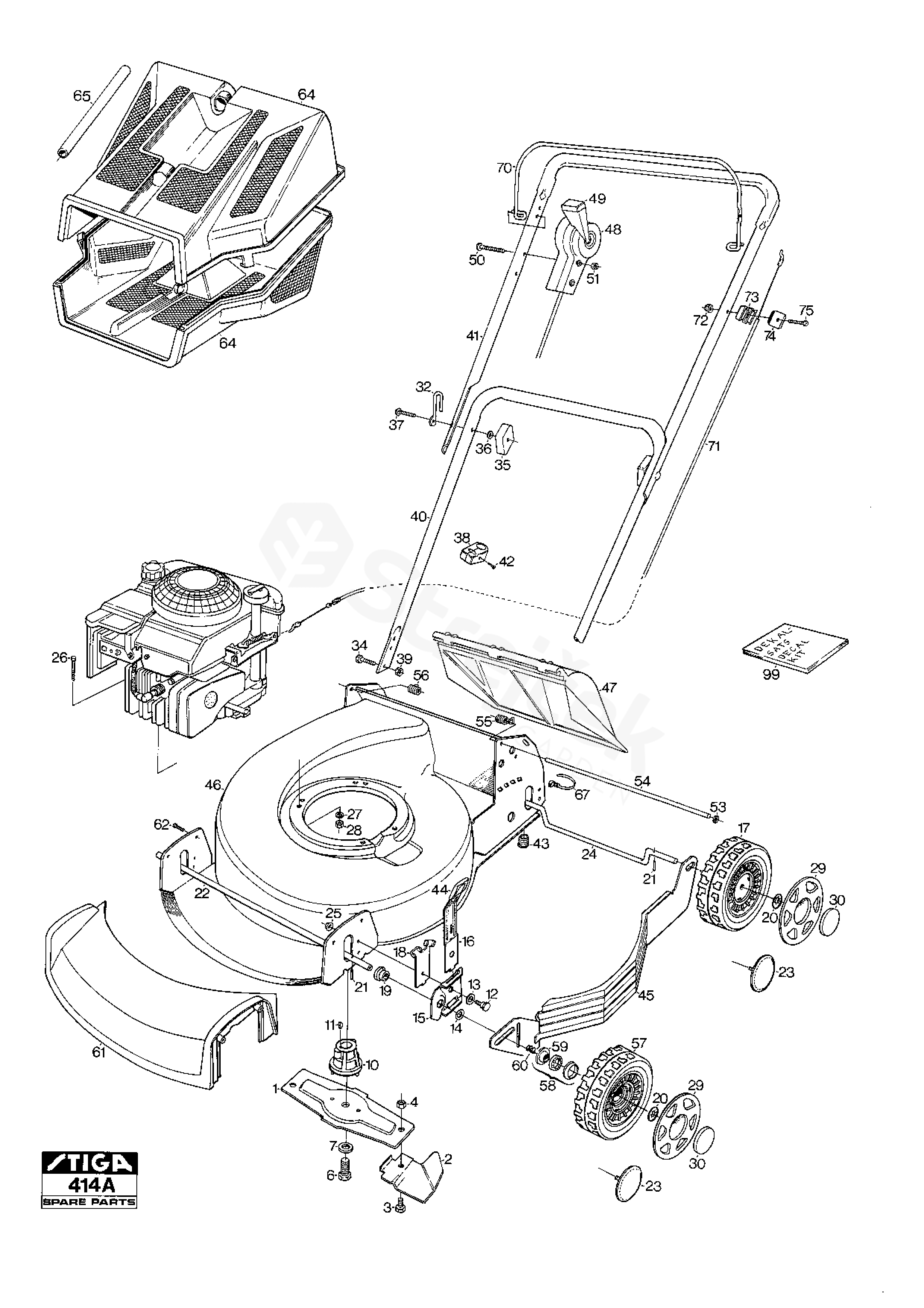

COLLECTOR 46 COLLECTOR 46 (1993) [12-1415-58]
>
Chassis
Back to
COLLECTOR 46
COLLECTOR 46 (1993) [12-1415-58]
Chassis
COLLECTOR 46
COLLECTOR 46 (1993) [12-1415-58]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
COLLECTOR 46 (1993) [12-1415-58]
1
Blade Bar Assy
1111-1423-01
2
Blade kit
1111-9048-01
3
Screw
9997-0816-16
4
Nut
9747-0831-02
6
Screw
9987-5232-16
7
Washer
9696-0011-01
10
Blade Hub
1111-9054-01
11
Key
9600-0014-00
12
Bolt
1111-0545-00
13
Washer
9694-0001-00
15
Axle Mounting
1111-1268-01
16
Control Lever
1111-1337-01
18
Hole Plate
1111-0497-00
19
Bushing
1111-2057-02
20
Starlock
9675-0017-02
21
Slotted Pin
9595-0182-00
22
Front Axle
1111-2526-01
24
Rear axle
1111-2525-01
25
Nut
9739-0831-22
26
Screw
35 mm
9997-0835-12
27
Washer
9683-0030-02
28
Nut
9799-0831-02
29
Hub Cap Yellow
1111-18
1111-2657-01
30
Wheel Cup
1111-18
1111-2675-01
34
Screw
9997-0812-16
35
Knob
1111-0035-01
36
Washer
9699-0025-02
37
Screw
9899-3545-12
38
Cable Holder
1111-2018-01
39
Nut
9716-0831-02
40
Handlebar Lower Part
1111-2165-01
41
Handlebar-Upper Part
1111-2005-01
42
Screw
9836-9216-12
44
Knob
1111-2549-01
45
Side guard-L.H.
1115-18
1111-2546-02
46
Chassis, Yellow
1111-2490-01
47
Flap (Yellow)
1111-1614-02
48
Throttle Cable
1111-2368-04
50
Screw
9948-0645-16
51
Lock Nut
9747-0631-02
53
Locking washer
9675-0012-02
54
Pivot rod
1111-1532-01
55
Spring
1111-2736-01
56
Spring
1111-2736-02
61
Front cover-yellow
1111-2487-02
62
Screw
9836-9516-12
64
Grass Catcher (One Half)
1111-1619-01
65
Handle
1111-1635-01
99
Label Kit
1111-2893-10
