Spare parts > Husqvarna > Cultivators > CRT 81 CRT 81, 954001152B, 1995-12 > TRANSMISSION
Back to

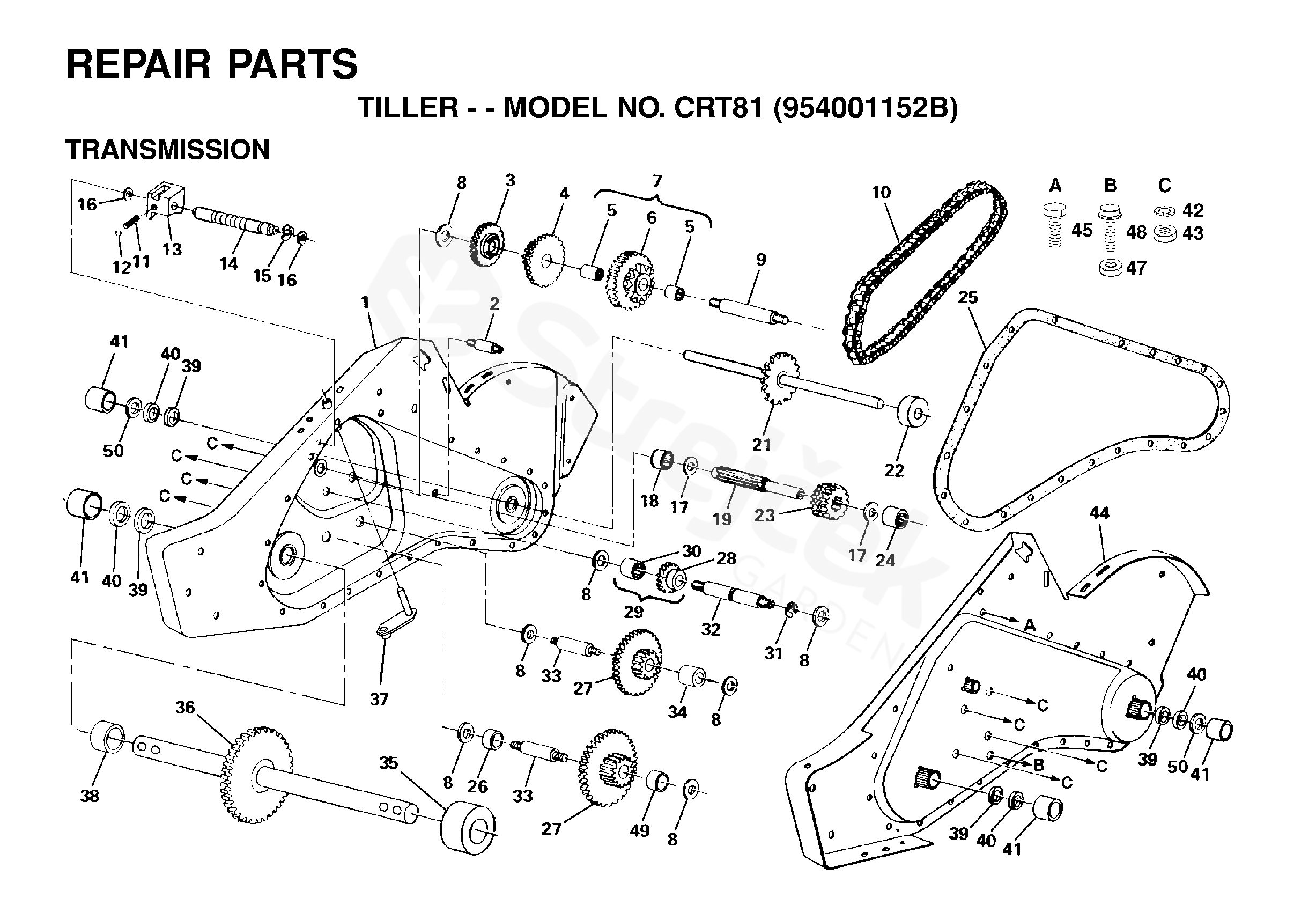

TRANSMISSION
CRT 81 CRT 81, 954001152B, 1995-12
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CRT 81, 954001152B, 1995-12
1 DEMI-CARTER DROITE DE REDUCTEU 532150430
2 BOLT 532008370
3 PINION 532008547
4 PINION 532008546
5 BEARING 532100413
6 PINION 532144564
7 PINION 532144563
8 WASHER 532004358
9 SHAFT 532008358
10 CHAIN 532008371
11 SPRING 532100371
12 STEEL BALL 532124697
13 FORK 532008353
14 SHAFT 532008354
15 RETAINING RING 812000039
17 WASHER 532001370
18 BEARING 532124792
19 SHAFT 532150695
21 SHAFT 532105378
22 SPACER 532106181
23 PINION 532008359
24 BEARING 532005020
25 GASKET 532008372
26 SPACER 532106389
27 GEAR 532100433
28 GEAR 532008357
29 GEAR 532144562
30 BEARING 532006803
31 RETAINING RING 812000040
32 SHAFT 532008356
33 SHAFT 532100016
34 SPACER 532106392
35 SPACER 532106394
36 SHAFT 532100436
37 LEVER 532142145
38 SPACER 532106393
39 SEAL 532124698
40 SEAL 532140576
41 CUP 532009672
42 WASHER 810040700
43 NUT 873610700
44 GEARBOX 532150417
45 SCREW 817720510
47 NUT 873220500
48 BOLT 532100107
49 SPACER 532106391
50 RING 532102144
GREASE 532006066
