Spare parts > STIGA > Lawn Mower > TURBO 53 S COMBI TURBO 53 S COMBI (2006) [23-5286-15] > Chassis Handle
Back to

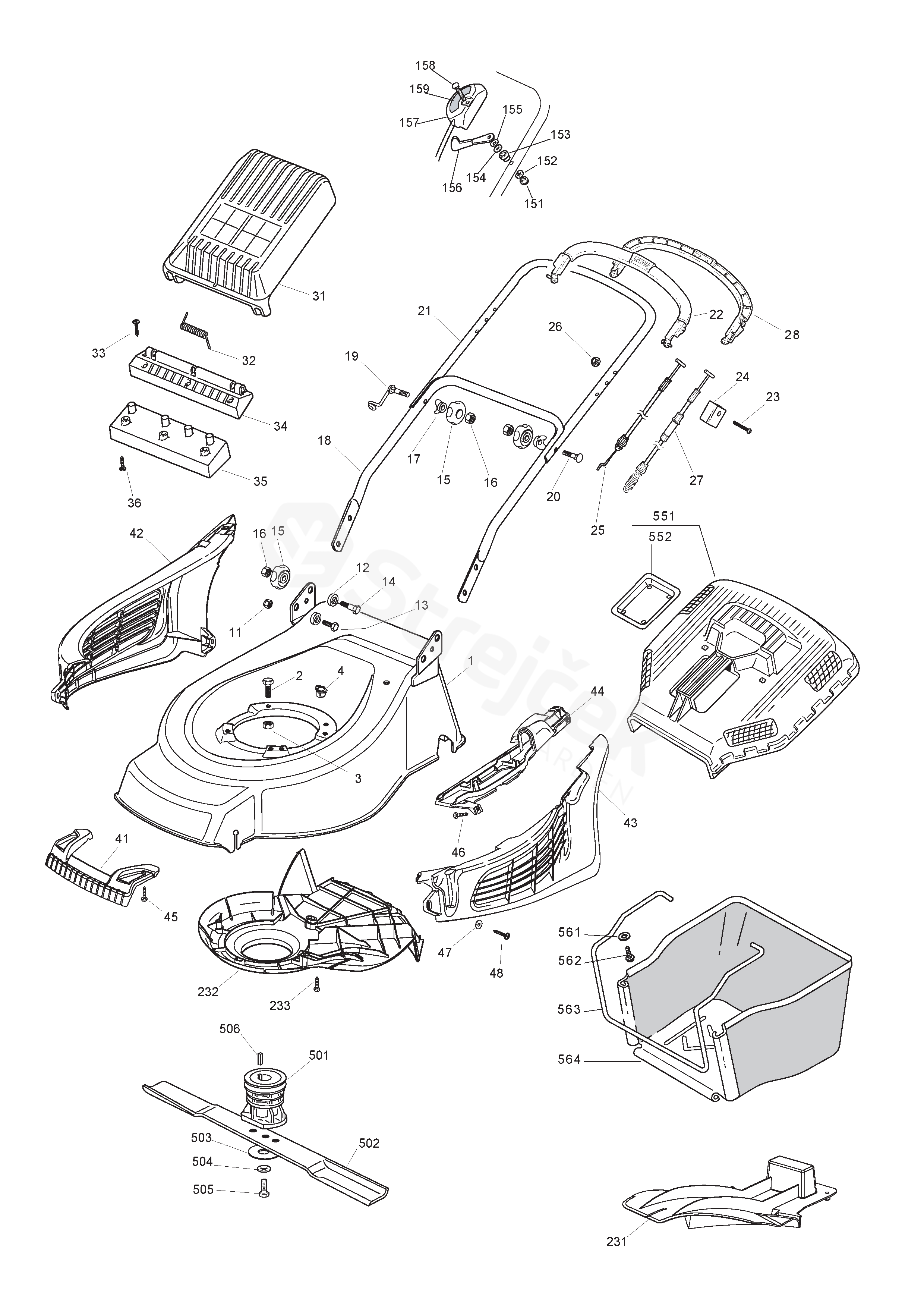

Chassis Handle
TURBO 53 S COMBI TURBO 53 S COMBI (2006) [23-5286-15]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TURBO 53 S COMBI (2006) [23-5286-15]
1 Deck 1136-1912-01
2 Screw
L = 60 mm 		9997-0860-16
3 Nut 9739-0831-22
4 Rubber Insert 1136-0665-01
11 Nut 9747-0831-02
12 Bushing 1111-3554-01
13 Screw 9997-0816-16
14 Screw 1136-0617-01
15 Knob 1117-3194-01
16 Nut 9799-0831-02
17 Washer 1136-0693-01
18 Handle-Lower 1136-1193-01
19 Screw 1136-0747-01
20 Screw 1136-0620-01
21 Handle-Upper 1136-1519-01
22 Control Handle (Eng.Brake 1111-2953-01
23 Screw 9997-0640-12
24 Cable Holder 1111-2969-01
25 Cable, Thread Engine Brake 1136-1838-01
26 Lock Nut 9747-0631-02
27 Clutch Cable 1136-1839-01
28 Clutch Lever 1111-2954-01
31 Stone Guard, Yellow 1111-3283-01
32 Spring 1111-2792-01
33 Screw 9836-9525-12
34 Fulcrum-Yellow 1136-0703-01
35 Holder 1136-1899-01
36 Screw 1136-1458-01
41 Front Guard 1136-1913-01
42 Side Guard-Rh 1136-1905-01
43 Side Guard-Lh 1136-1906-01
44 Support 1136-1910-01
45 Screw 1136-1895-01
46 Screw 1117-3226-01
47 Washer 9699-0025-02
48 Screw 1136-1591-01
151 Nut 1136-0604-01
152 Grower 1136-0611-01
153 Spacer 1136-0659-01
154 Washer 9699-0035-02
155 Spring washer 1136-0606-01
156 Throttle Lever 1136-0766-01
157 Throttle Cable 1136-0764-01
158 Screw 1136-0618-01
159 Label 1136-1884-01
231 Deflector 1136-0656-01
232 Protection 1136-0645-01
233 Screw 1136-0615-01
501 Blade Holder 1111-9120-01
502 Blade 1111-9122-01
503 Elastic Washer 1136-0083-01
504 Washer 1136-0015-01
505 Screw 9987-5251-12
506 Key 9600-0014-00
551 Collector-Upper Part (Yellow) 1111-2840-01
552 Cover 1111-2764-01
561 Flat washer 9699-0100-02
562 Screw 9838-9522-12
563 Wire Clamp 1111-2843-01
564 Collecting Bag 1111-2844-01
