STIGA
>
Lawn Mower
>
TURBO 55S PRO 4-SPEED TURBO 55S PRO 4-SPEED (2000)
>
Handle, Upper Part
Back to
TURBO 55S PRO 4-SPEED
TURBO 55S PRO 4-SPEED (2000)

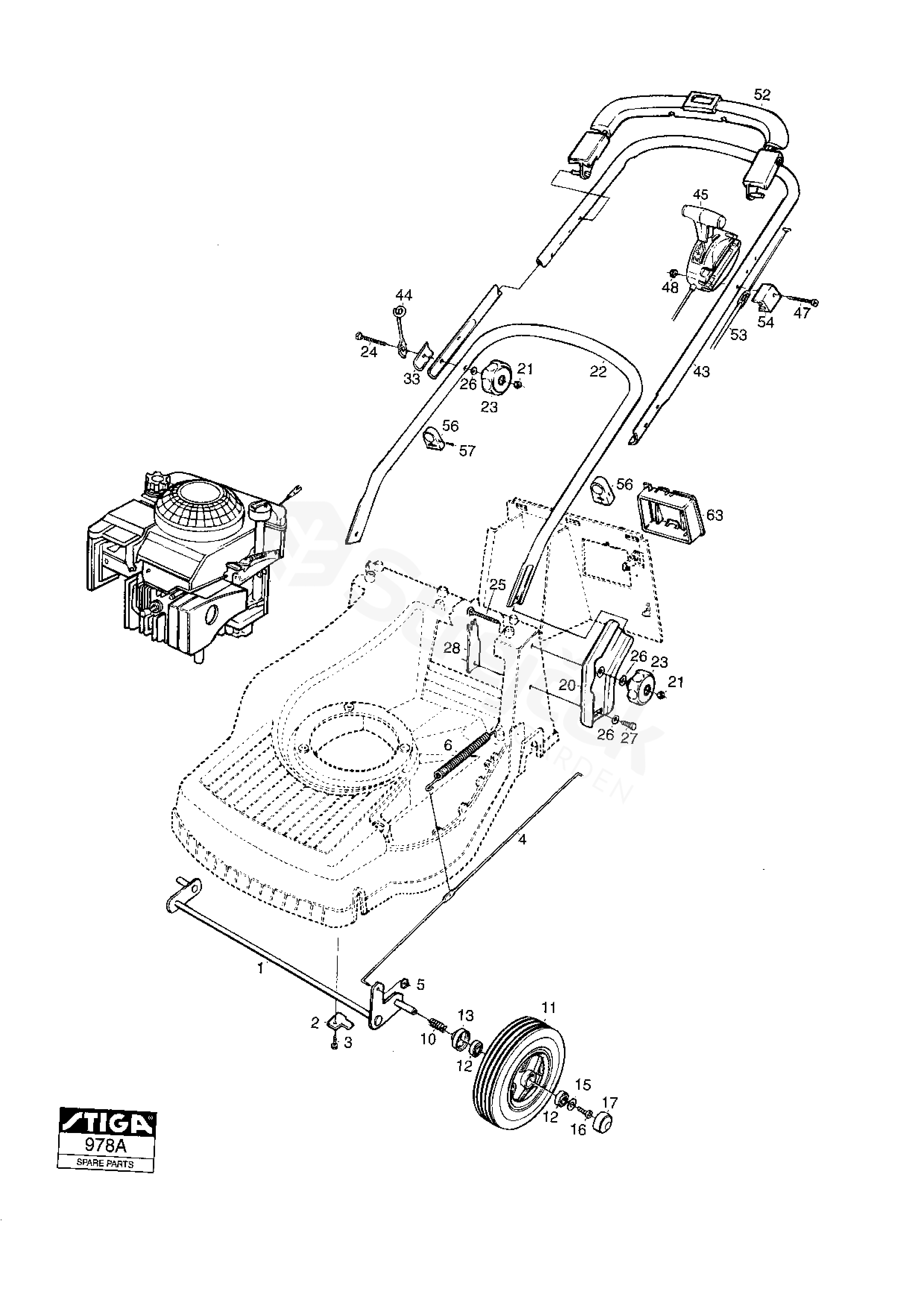

Handle, Upper Part
TURBO 55S PRO 4-SPEED
TURBO 55S PRO 4-SPEED (2000)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TURBO 55S PRO 4-SPEED (2000)
1
Axle, Front Wheels
1111-2805-02
2
Clamp
1111-1504-01
3
Screw
9947-0616-16
4
Rod, Height Adjustment
1111-3031-01
5
Starlock
9675-0011-00
6
Spring
1111-2819-01
10
Spring-Wheel Axle
1111-1138-01
11
Alu Wheel W/O Bearing
1111-0817-03
12
Ball Bearing
9549-0015-00
13
Seal Grease
1111-0466-00
15
Flat washer
9699-0100-02
16
Screw
9943-0620-16
17
Hub Cap
1111-1506-01
20
Handlebar Attachment
1111-3021-01
21
Nut
9795-3531-02
22
Handlebar-lower part
1111-3022-01
23
Locking Knob
1111-3023-01
24
Screw
L = 57 mm
9899-3557-12
25
Screw
L = 45 mm
9899-3545-12
26
Washer
9699-0028-02
27
Screw
9939-0820-16
28
Attachment plate
1111-3024-01
33
Reinforcement
1111-0178-00
43
Handlebar Upper Part
1111-2957-01
44
Eyelink
1111-3062-01
45
Throttle Cable
1111-3301-03
47
Screw
L = 70 mm
9948-0670-16
48
Lock Nut
9747-0631-02
52
Control Handle (Eng.Brake
1111-2953-01
53
Cable, Thread Engine Brake
1111-2968-07
54
Cable Holder
1111-2969-01
56
Cable Holder
1111-2018-01
57
Screw
9836-9216-12
63
Battery Holder
1111-2927-01
