Spare parts > STIGA > Lawn Mower > TURBO EXCEL 55 S B BBC TURBO EXCEL 55 S B BBC (2010) > Wheels and Hub Caps
Back to

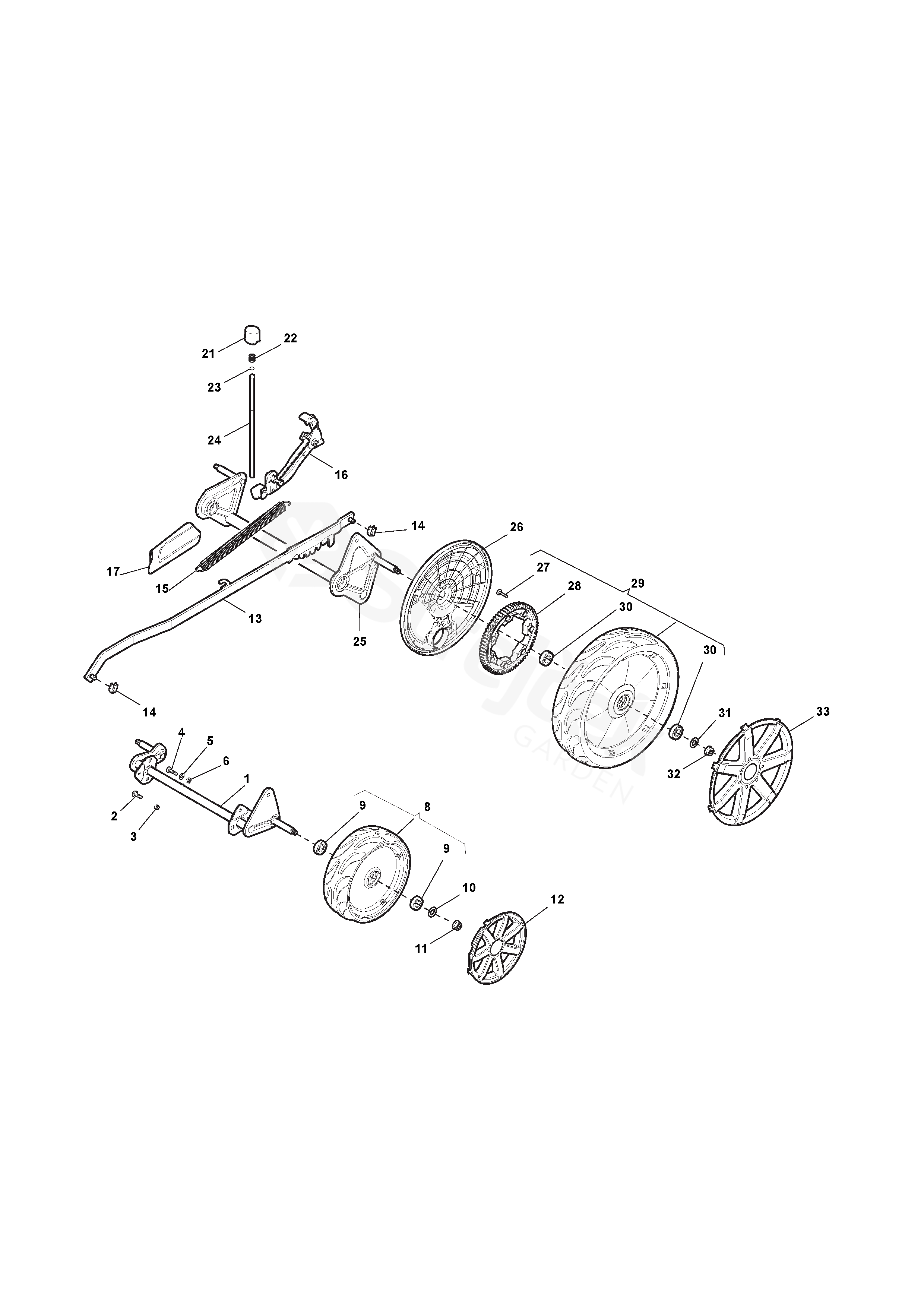

Wheels and Hub Caps
TURBO EXCEL 55 S B BBC TURBO EXCEL 55 S B BBC (2010)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TURBO EXCEL 55 S B BBC (2010)
1 Front Wheel Axle 381302801/0
2 Screw 112815205/0
3 Nut 112154510/0
4 Screw 112727799/0
5 Washer 112523040/0
8 Wheel 381007394/0
10 Washer 112521350/0
11 Nut 112155000/0
12 Hub Cap Grey 322110597/0
13 Rod, Height Adjustment 381002027/0
14 Plate 112436051/0
15 Spring 122450459/0
16 Lever, Height Adjustment 381003337/1
17 Adjustment Plate 322570202/0
21 Height Adj. Button 322602012/0
22 Spring 122450462/0
23 Benzing Ring 112000930/0
24 Rod 122033351/0
25 Rear Wheel Axle 381002899/0
26 Internal Wheel Protectection 322600179/0
27 Screw 112728691/0
28 Wheels Crown 322120113/0
29 Wheel Ø 260 381007398/1
30 Bearing 119216035/0
33 Hub Cap Grey 322110599/0
