STIGA
>
Lawn Mower
>

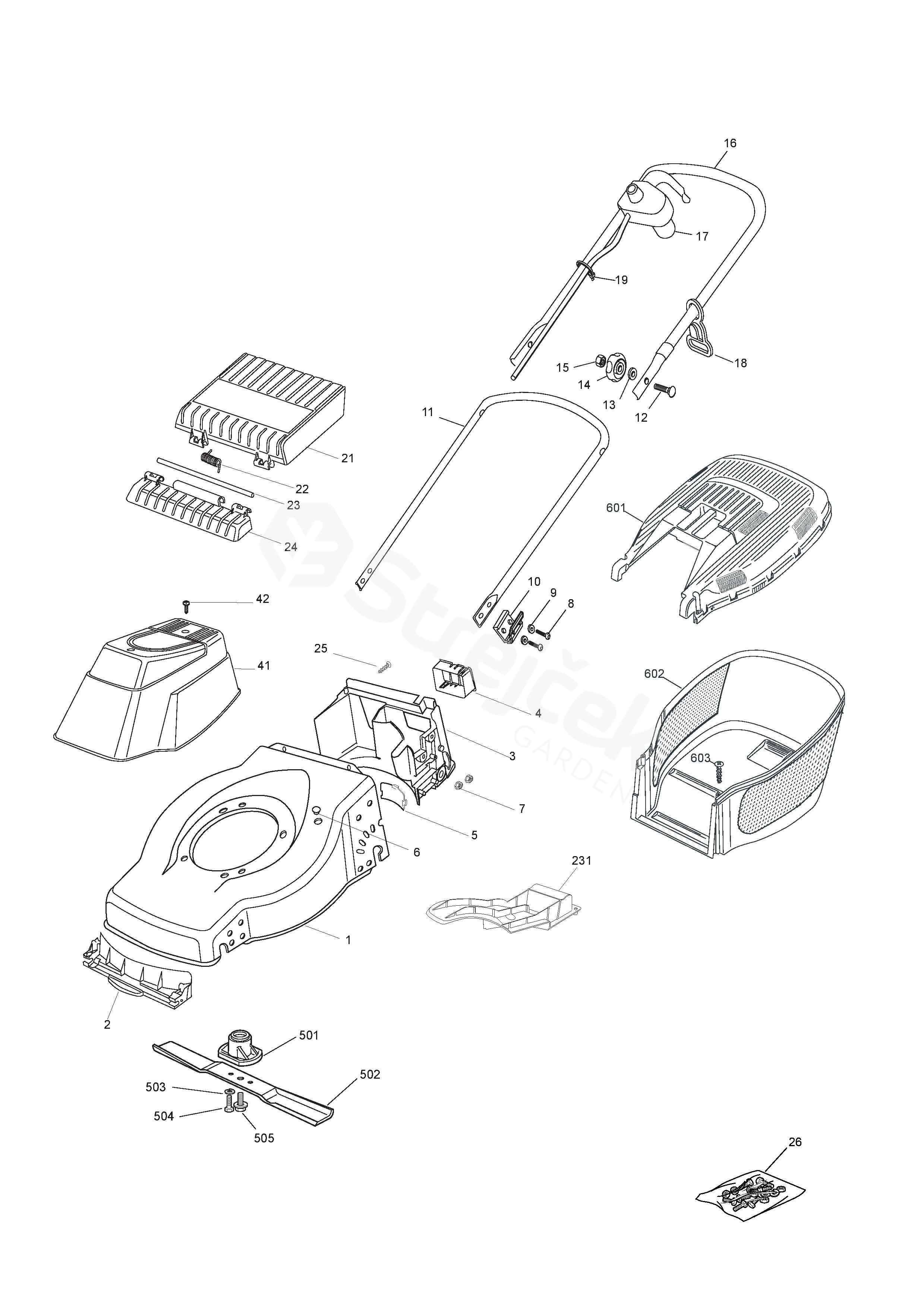

SILENT 45 COMBI EL SILENT 45 COMBI EL (2006)
>
Chassis Handle
Back to
SILENT 45 COMBI EL
SILENT 45 COMBI EL (2006)
Chassis Handle
SILENT 45 COMBI EL
SILENT 45 COMBI EL (2006)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
SILENT 45 COMBI EL (2006)
1
Yellow Deck
1117-1308-01
2
Front Baffle
1117-3007-01
3
Rear Baffle
1117-3008-01
4
Battery Holder
1111-2927-01
5
Cap
1117-1148-01
6
Plug
1136-1400-01
7
Nut
1117-1131-01
8
Bolt
1117-3046-01
9
Washer
9699-0062-02
10
Isolation
1117-1192-01
11
Handle-Lower
1136-1430-01
12
Screw
1136-0620-01
13
Washer
1136-0693-01
14
Knob
1117-3194-01
15
Nut
9799-0831-02
16
Handle-Upper
1136-1433-01
17
Switch
1111-3613-01
18
Fair Led
1136-0662-01
19
Cable Holder
9579-0008-00
21
Rear Flap (Black)
1117-1156-02
22
Spring-Rear Flap
1117-1126-01
23
Shaft For Rear Flap
1117-1143-01
24
Rear Flap Holder (Black)
1117-1155-02
25
Screw
9836-9516-12
26
Outfit, Screws
1136-1535-01
41
Cover
1136-2409-01
42
Screw
9836-9525-12
231
Mulch Plug (Yellow)
1117-3001-01
501
Hub
1136-1725-01
502
Blade
1111-9143-01
503
Washer
9683-0030-02
504
Screw
9997-0820-16
505
Blade Bolt
1136-0752-01
601
Grass Bag Cover, Yellow
1117-1157-01
602
Lower Grass Bag (Black)
1117-1218-01
