Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Front Mowers
>
Villa 13 Villa 13 (2015)
>
Foot Controls
Back to
Villa 13
Villa 13 (2015)

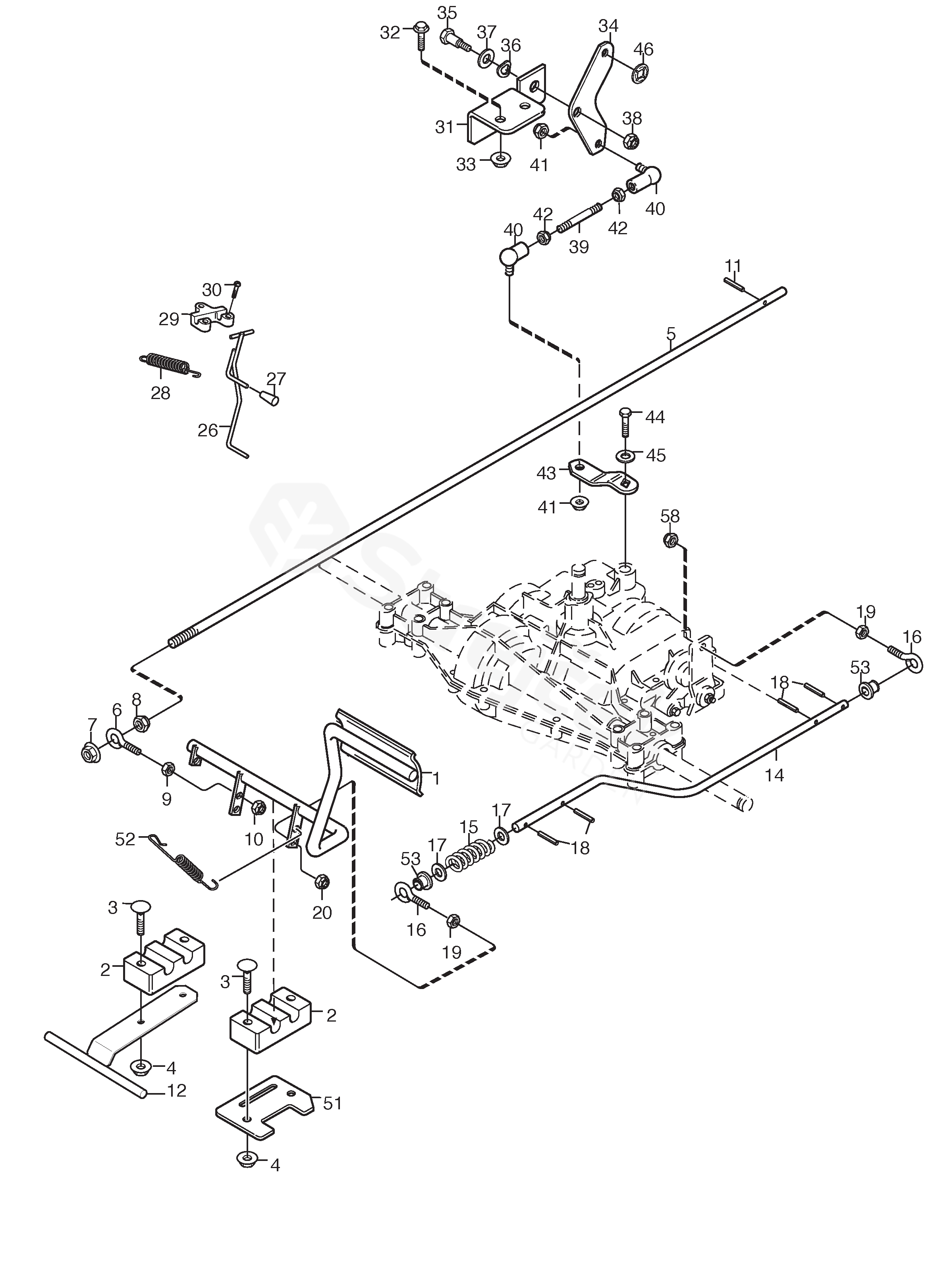

Foot Controls
Villa 13
Villa 13 (2015)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Villa 13 (2015)
1
Pedal
1134-4802-01
2
Bearing
1134-4624-01
3
Screw
9897-0640-12
4
Nut
9739-0631-22
5
Clutch Rod
1134-4795-01
6
Eye Bolt
1134-2138-01
7
Nut
9739-1031-22
8
Nut
9731-1031-22
9
Nut
112293200/0
10
Nut
112155000/0
11
Locating Pin
9595-0208-00
12
Bracket
387773501/0
14
Brake Rod
1134-4777-01
15
Spring
1134-4617-01
16
Eye Bolt
1134-2138-01
17
Washer
9699-0035-02
18
Locating Pin
9595-0208-00
19
Nut
112293200/0
20
Nut
112155000/0
26
Brake Rod
1134-5353-01
27
Knob
1134-2786-01
28
Brake Spring
1131-1497-01
29
Brake Rod Attachment
1134-4002-01
30
Screw
112728697/0
31
Angle Bracket
1134-4714-01
32
Screw
9959-0820-16
33
Nut
112154220/0
34
Triangular Plate
1134-4715-01
35
Screw
1134-0240-00
36
Washer
9694-0001-00
37
Washer
9699-0036-02
38
Nut
112155000/0
39
Threaded Rod
1134-4717-03
40
Elbow Link
9570-0004-00
41
Nut
112154510/0
42
Nut
9739-0631-22
43
Shifter Lever
1134-4722-01
44
Screw
112735520/0
45
Washer
9699-0060-02
46
Crown Fastener
112604896/0
51
Stop Plate
1134-4793-01
52
Spring
4231-0013-00
53
Bushing
1134-4779-01
58
Nut
112155000/0
