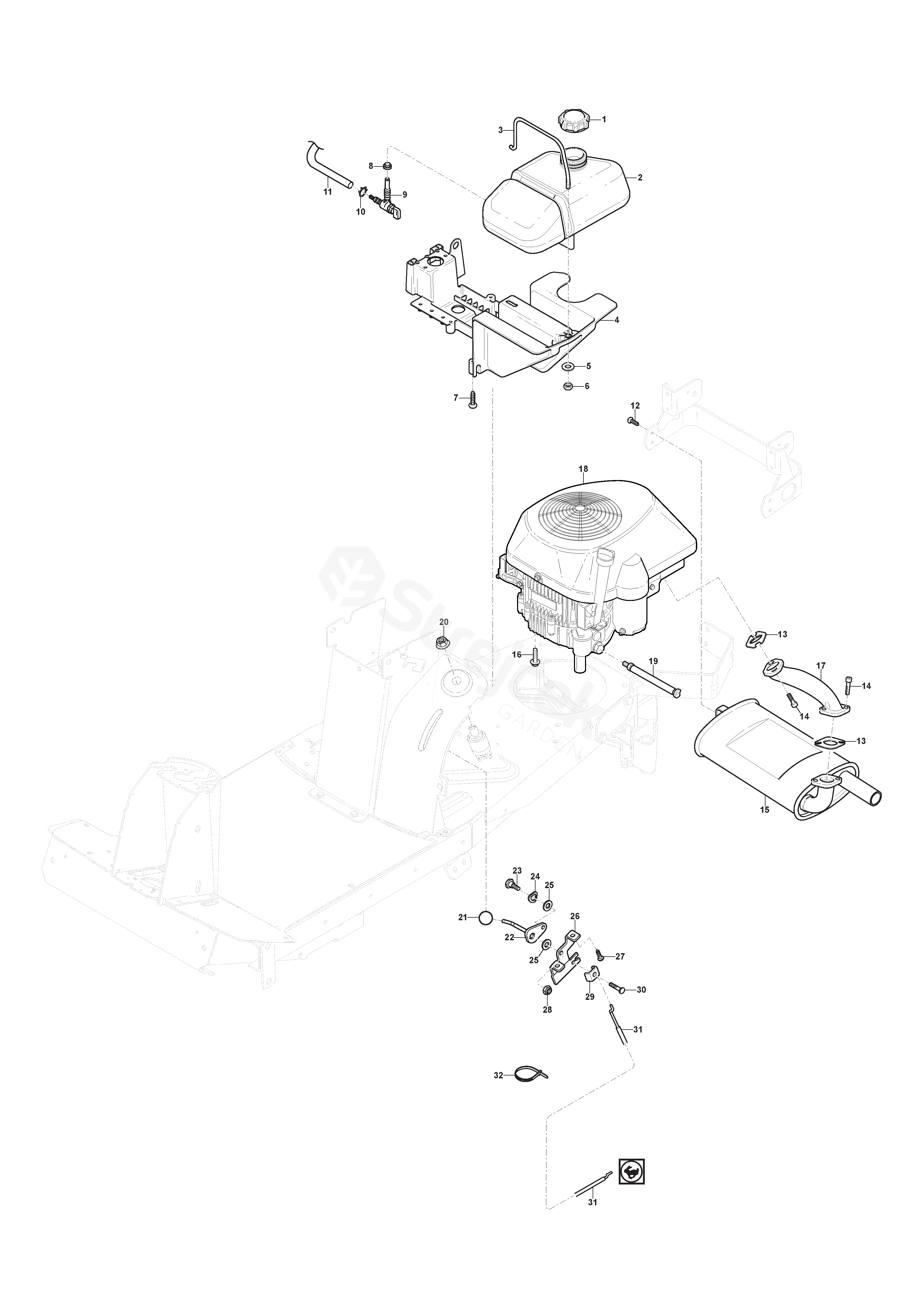

Spare parts > STIGA > Front Mowers > VILLA 12 Villa 12 (2018) > Engine
Back to
Engine
VILLA 12 Villa 12 (2018)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Villa 12 (2018)
1 Cap 125795001/1
2 Fuel Tank 1134-6626-01
3 Tank Clamp 1134-4808-01
4 Support 1134-4807-02
5 Washer 112523040/0
6 Nut 112154510/0
7 Screw 9838-8822-19
8 Grommet 1134-3225-01
9 Fuel Shut-Off Valve 1134-3224-01
10 Hose clamp 9578-0023-02
11 Fuel Tube
L = 260 mm 		1134-2975-15
12 Screw 9893-0616-16
13 Gasket 1134-0433-00
14 Screw 1134-4930-01
15 Muffler 387753302/1
16 Screw
3/8" x 25 		9955-3725-16
17 Exhaust Pipe 118738267/0
18 Engine
ST. WM 12,5 		118563137/0
20 Nut 1134-4749-01
21 Knob 1134-4078-01
22 Lever 1134-4077-02
23 Screw 1134-0240-00
24 Washer 9694-0001-00
25 Washer 1134-4242-01
26 Bracket 1134-5357-01
27 Screw 112728697/0
28 Nut 112155000/0
29 Wire Clamp 9500-9991-00
30 Screw 9943-0516-16
31 Throttle Cable 1134-1597-13
32 Cable 133320027/0
