Spare parts > STIGA > Front Mowers > Park 120 Park 120 (2016) > Controls
Back to

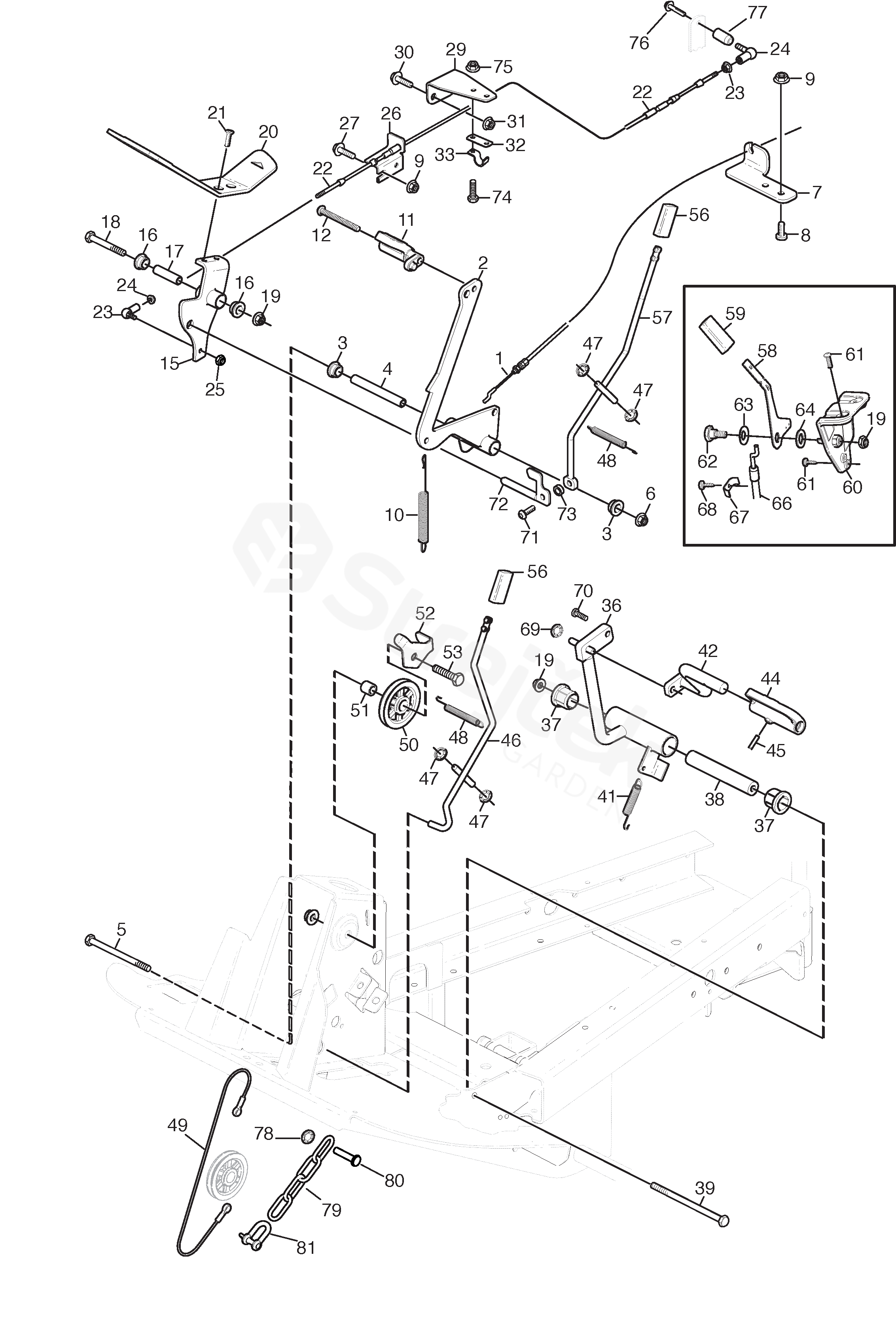

Controls
Park 120 Park 120 (2016)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Park 120 (2016)
1 Brake Cabel 1137-0992-01
2 Pedal 387500007/0
3 Bearing 1134-6313-01
4 Spacer 1137-0912-01
5 Screw 9997-0811-02
6 Nut 112154220/0
7 Bracket 1137-0847-01
8 Screw 9959-0620-16
9 Nut 9739-0631-22
10 Spring 1131-1507-00
11 Pedal 1137-0959-01
12 Screw 9930-0870-12
15 Bracket 387318259/0
16 Bearing 1134-6313-01
17 Spacer 1137-0802-01
18 Screw 112691800/0
19 Nut 112155000/0
20 Drive Pedal 337506741/0
21 Screw 9893-0616-16
22 Cable 1134-2766-10
23 Elbow Link 9570-0001-00
24 Nut 9739-0531-22
25 Nut 112154330/0
26 Wire Bracket 337774041/0
27 Screw 9959-0620-16
29 Bracket 1137-0928-01
30 Screw 9959-0825-16
31 Nut 112154220/0
32 Attaching clamp 1134-0266-00
33 Clamp Plate 1134-0267-00
36 Pedal 1137-0784-01
37 Bearing (D=20,4) 1134-0068-00
38 Spacer 1137-0795-01
39 Screw 9997-0814-02
41 Spring 1134-5824-01
42 Pedal 1137-0877-01
44 Pedal 1137-0958-01
45 Pin 9595-0230-00
46 Brake Rod 1137-0792-01
47 Crown Fastener 112604899/0
48 Spring 1137-1092-01
49 Wire 187000206/0
50 Steering Pulley 1134-0072-02
51 Bushing 1134-0041-01
52 Bracket 1137-0713-02
53 Screw 112794300/0
56 Knob 1137-0952-01
57 Lever
P-broms/Parking brake 		1137-0837-01
58 Throttle Lever 1137-0894-01
59 Knob 1137-0952-01
60 Plate 1137-0873-01
61 Screw 112728697/0
62 Screw 1134-0240-00
63 Washer 1134-4242-01
64 Washer 9665-0002-00
66 Throttle Cable 1134-4197-01
67 Wire Clamp 9500-9991-00
68 Screw 9943-0516-16
69 Crown Fastener 112604899/0
70 Screw 9930-0820-16
71 Screw 9893-0616-16
72 Lever 1137-0825-01
73 Spacer 1137-0872-01
74 Screw 112789008/0
75 Nut 9739-0531-22
76 Screw 112800815/0
77 Spacer 1134-4013-01
78 Crown Fastener 112604899/0
79 Chain 1134-6368-01
80 Pin 137510315/0
81 Lift link 1134-2629-01
