Spare parts > STIGA > Front Mowers > Park 320 Park 320 (2018) > Belt Protections
Back to

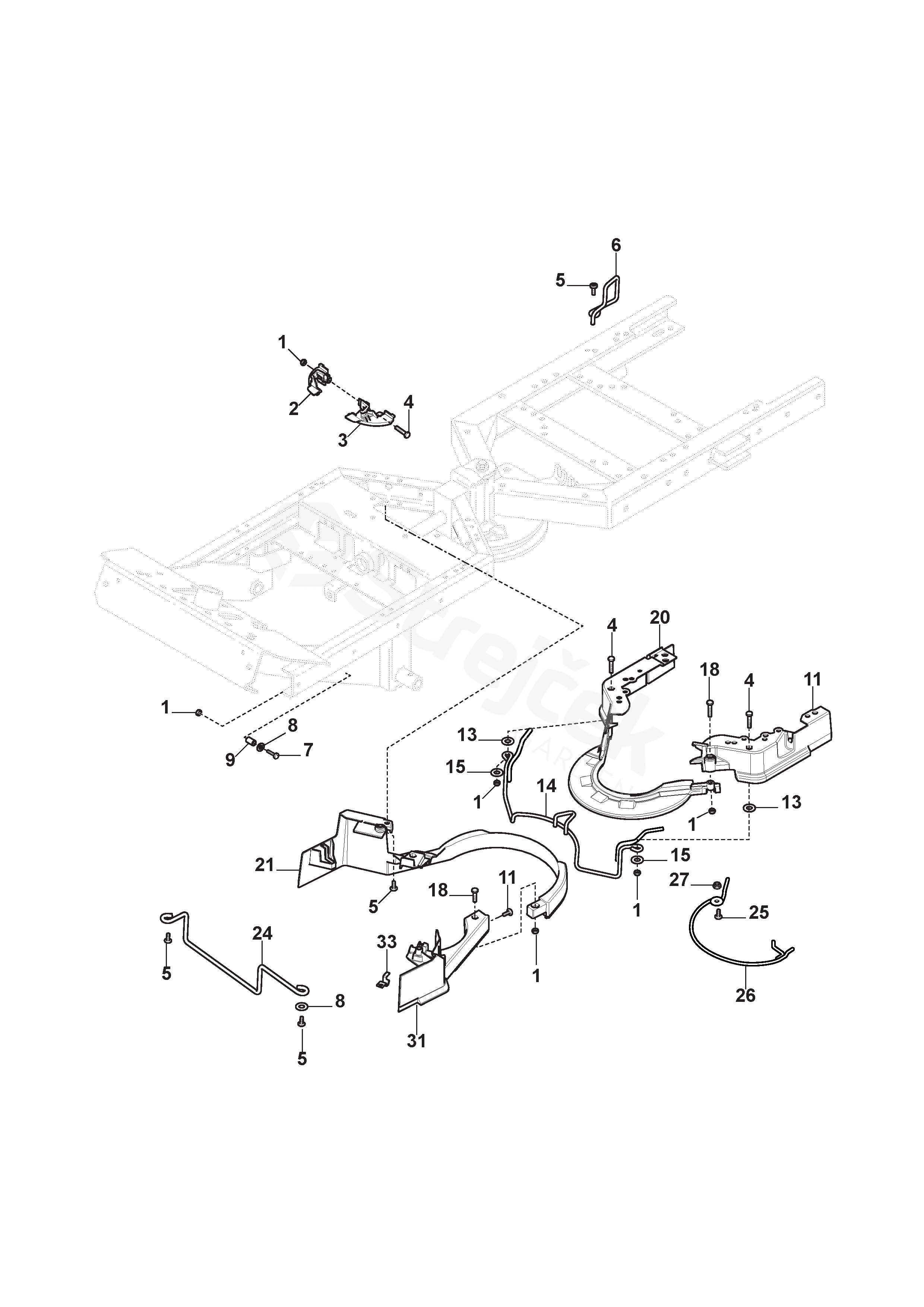

Belt Protections
Park 320 Park 320 (2018)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Park 320 (2018)
1 Nut 112154510/0
2 Protection 337600010/0
3 Protection 337600011/0
4 Screw 112792099/0
5 Screw 9893-0616-16
6 Belt cover 337600015/0
7 Screw 112735669/0
8 Washer 112523050/0
9 Spacer 1134-1565-14
11 Belt cover 337060001/1
13 Washer 112524010/0
14 Support 337785113/0
15 Washer 112521330/0
18 Screw 112791500/0
20 Belt cover 337060000/2
21 Belt cover 337060002/0
24 Belt Guide 137294100/0
25 Screw 112727796/0
26 Belt Guide 137294105/0
27 Nut 112154330/0
31 Belt cover 337060003/0
33 Plate 322545159/0
