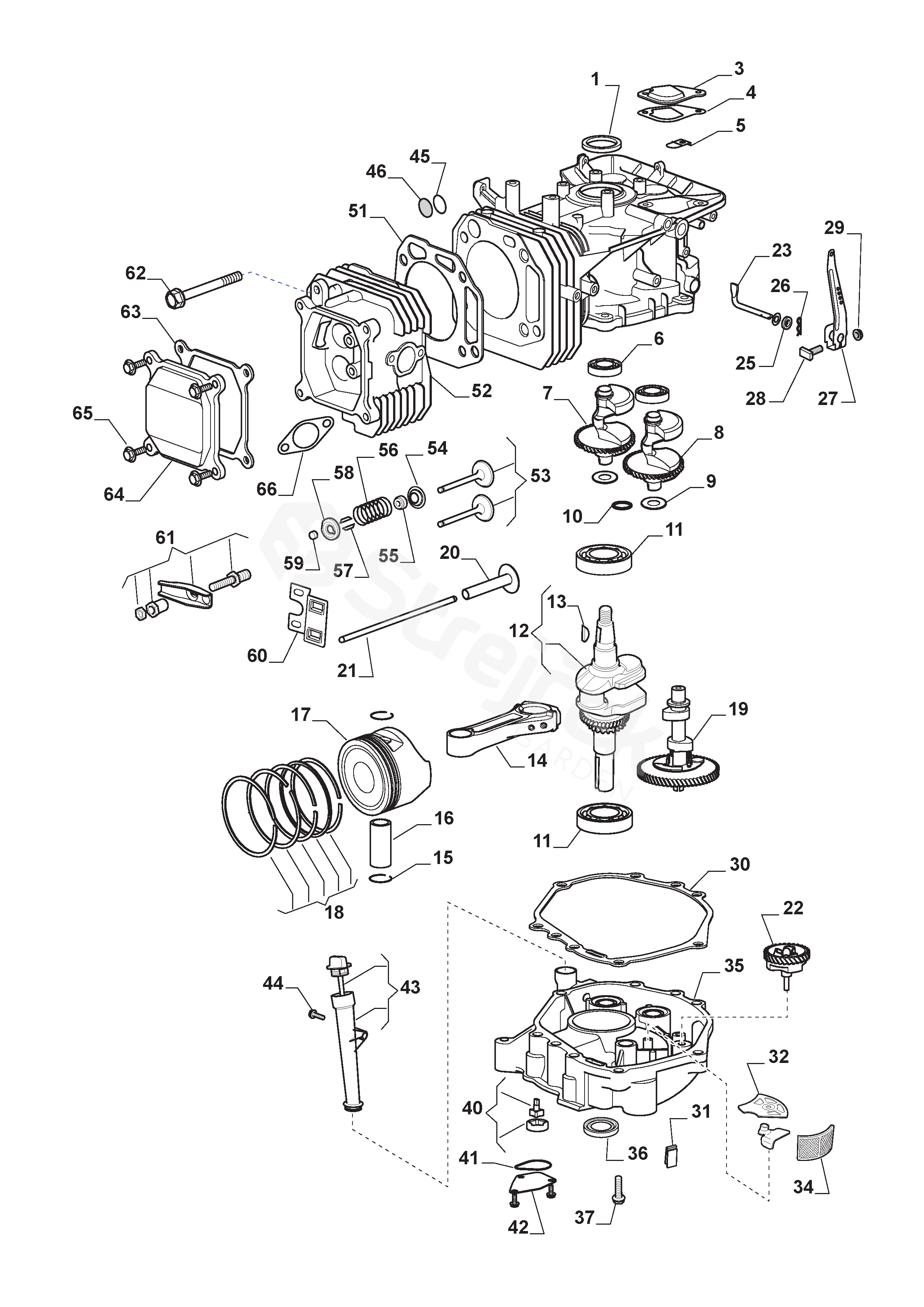

Park 320 G Park 320 G (2019)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Park 320 G (2019)

1	Oil seal	118550443/0
3	Cover	118551227/0
4	Gasket	118551229/0
5	Plate	118550303/0
6	Bearing	118551284/0
7	Counterweight	118551242/0
8	Counterweight	118551243/0
9	Washer	118551282/0
10	O Ring	118551286/0
11	Ball Bearing	118550227/0
12	Crankshaft	118550232/0
13	Woodruff Key	118550288/0
14	Connecting Rod Assy	118550231/1
15	Washer, Piston Pin	118551283/0
16	Piston Pin	118551241/0
17	Piston	118551519/0
18	Piston, Ring Set	118551518/0
19	Camshaft Assy	118550243/0
20	Valve Lifter	118551252/0
21	Push Rods Assy	118550242/1
22	Speed Governor Assy	118550347/0
23	Shaft, Governor Arm	118551268/0
25	Oil seal	118551285/0
26	Cotter Pin	118550856/0
27	Arm Governor Assy	118551220/0
28	Screw	118550805/0
29	Nut	118550806/0
30	Crankcase Gasket	118550355/1
31	Grommet	118551258/0
32	Cover	118551257/1
34	Oil Strainer	118551256/1
35	Crankcase Cover	118551207/0
37	Screw	112691115/0
40	Oil Pump	118550224/1
41	Gasket	118551287/0
42	Oli Pump Cover	118550223/0
43	Oil Filler Assy	118550205/2
44	Screw	112674701/0
45	Breather valve	118551230/0
46	Cover	118551228/0
51	Seal	118551504/0
52	Cylinder Head	118551503/0
53	Valve Assy, Intake + Exhaust	118551289/0
54	Plate	118551245/0
55	Gasket	118551248/0
56	Spring Valve	118550529/0
57	Valve keeper	118551247/0
58	Retainer	118551246/0
59	Valve cap	118551244/0
60	Plate	118551254/0
61	Valve Arm Set	118551249/0
62	Screw	118551278/0
63	Gasket	118551531/0
64	Cover Comp., Head	118551534/0
65	Bolt	118551535/0
66	Muffler Gasket	118551272/0
