325 HE3 325 HE3, 966787601 from 2015 -
>
ÚHLOVÁ PŘEVODOVKA
Back to
325 HE3
325 HE3, 966787601 from 2015 -
ÚHLOVÁ PŘEVODOVKA
325 HE3
325 HE3, 966787601 from 2015 -

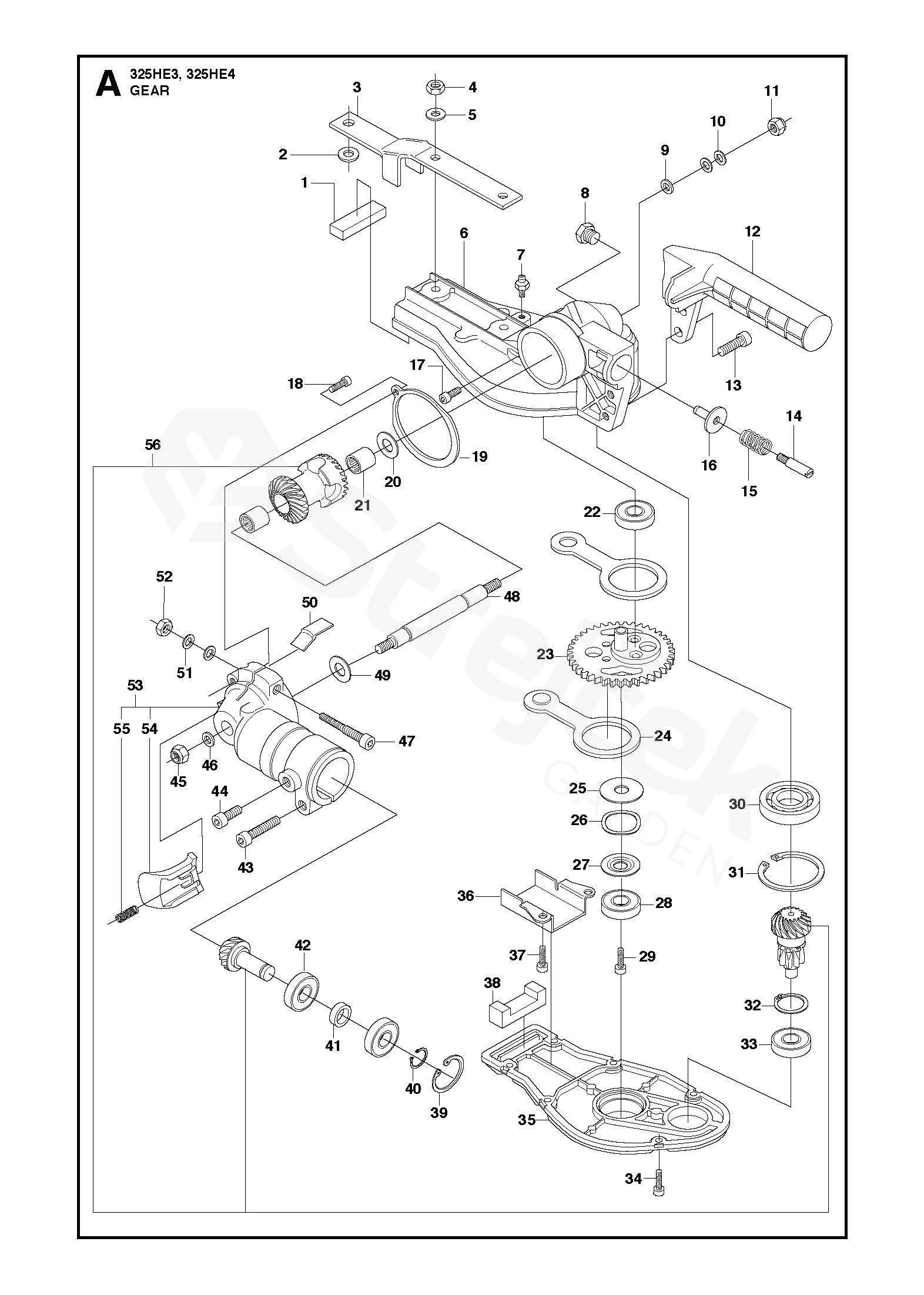

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
325 HE3, 966787601 from 2015 -
1
SEALING
537232201
2
PODLOŽKA
734116541
3
BASEPLATE
537232101
4
HEXAGON NUT
503221012
5
PODLOŽKA
734114601
6
GEAR HOUSING
537231701
7
LUBRICATION NIPPLE
738881001
8
PLUG
537416601
9
PODLOŽKA
734115201
10
DISC SPRING
737385200
11
HEXAGON LOCKING NUT
732251601
12
HANDLE
537233001
13
SCREW
537126401
14
PEN
537385901
15
PRUŽINA
537233301
16
STOP
537341401
17
SCREW IHSCM
725532305
18
SCREW IHSCM
725532755
19
STOP
537233401
20
PODLOŽKA
537294201
21
JEHLOVÉ LOŽISKO
537233601
22
BALL BEARING
738219804
23
GEAR WHEEL
537232801
24
CONNECTING ROD
537232001
25
PODLOŽKA
537404801
26
PODLOŽKA
503230302
27
PODLOŽKA
537341801
28
BALL BEARING
738219804
29
SCREW IHSCM
725532305
30
BALL BEARING
537406402
31
CIRCLIP
735313310
32
CIRCLIP
735311900
33
BALL BEARING
738219804
34
SCREW IHSCM
725529101
35
HUB CAP
537231801
36
GUIDE PLATE
537341501
37
SCREW IHSCM
725528755
38
SEALING
537234201
39
CIRCLIP
735312510
40
CIRCLIP
735311100
41
ROZPĚRKA
537233701
42
BALL BEARING
738219904
43
SCREW IHSCFM
503200725
44
SCREW IHSCFMO
503201412
45
HEXAGON LOCKING NUT
732251601
46
PODLOŽKA
734115201
47
SCREW
537295501
48
HRÍDEL
537232601
49
PODLOŽKA
537294201
50
SEALING
537394901
51
DISC SPRING
737385000
52
HEXAGON LOCKING NUT
732251201
53
HOUSING ASSY
544231001
54
BUTTON
537394801
55
PRUŽINA
537405701
56
GEAR WHEEL
544064001
