Spare parts > STIGA > Front Mowers > PARK COMFORT PARK COMFORT (2004) > Frame (Petrol Engines)
Back to

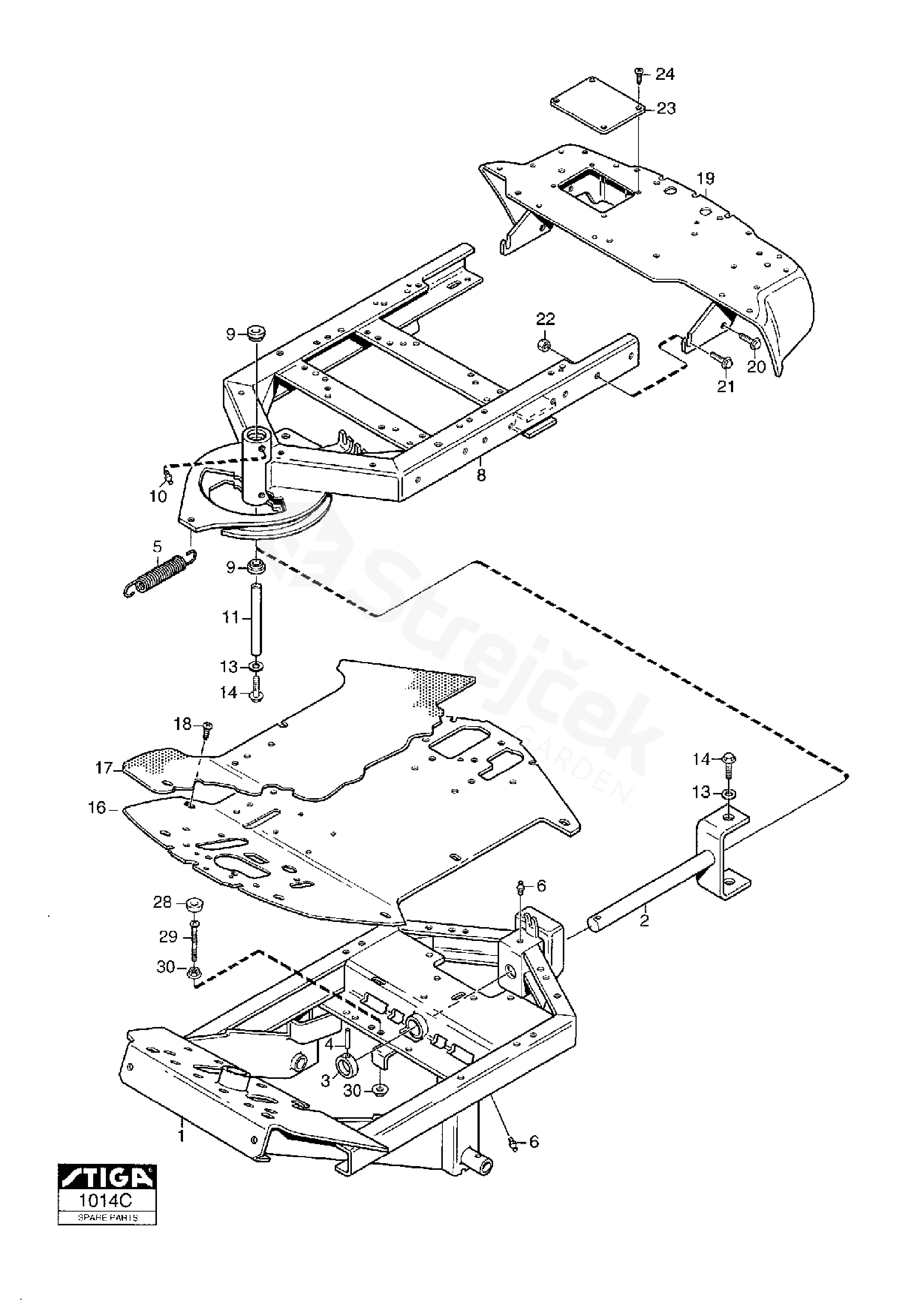

Frame (Petrol Engines)
PARK COMFORT PARK COMFORT (2004)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK COMFORT (2004)
1 Frame-Front 1134-5315-01
2 Fork 1134-3963-02
3 Pivot Shaft Stop 1134-0031-00
4 Locating Pin 9595-0262-00
5 Spring 1134-2171-01
6 Grease Dispenser 9501-0500-00
8 Frame-Rear (5-01) 1134-5313-01
9 Bearing 9547-0001-00
10 Grease Dispenser 9501-0500-00
11 Centre Shaft 1134-3968-02
13 Washer 9699-0035-02
14 Screw 9959-1020-16
16 Floor Plate (5-01) 1134-5294-01
17 Floor Mat Hst 1134-5514-01
18 Screw 9893-0616-16
19 Rear Bumper-Black 1134-4833-02
20 Screw 9945-0816-16
21 Screw 9959-0820-16
22 Nut 9739-0831-22
23 Cover 1134-4167-01
24 Screw 9840-8009-16
28 Rubber Buffer 1134-4975-01
29 Screw 9950-0570-12
30 Nut 9739-0531-22
