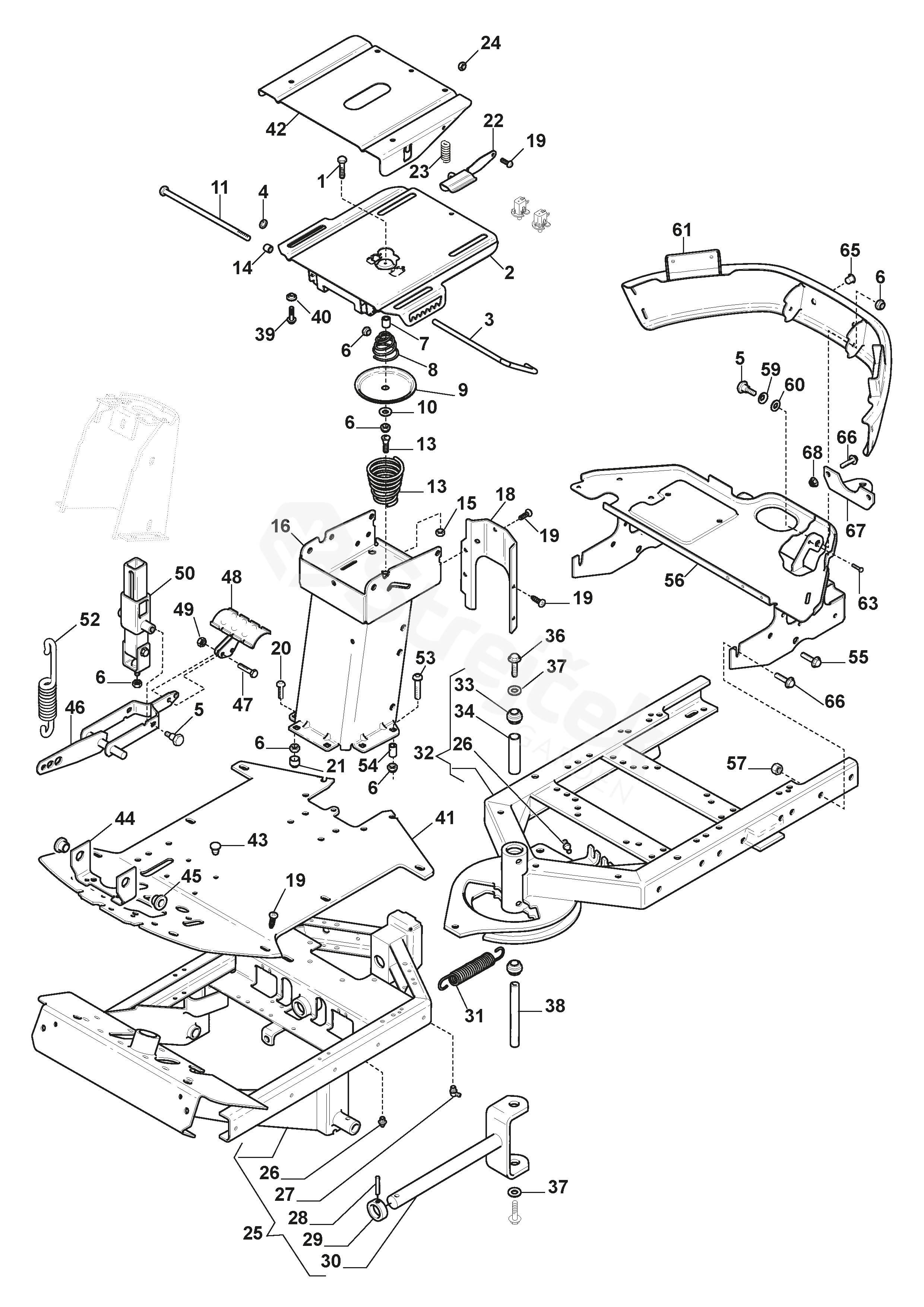

Spare parts - Partlist - Park 420 P Park 420 P (2018) - Chassis

Everything for your machines

Park 420 P Park 420 P (2018)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Park 420 P (2018)

1	Screw	112691115/0
2	Slide Plate-Lower	1134-6068-01
3	Catch	1134-5179-01
4	Crown Fastener	112604899/0
5	Screw	1134-0240-00
6	Nut	112155000/0
7	Spacer	1134-1565-06
8	Spring	1134-5302-01
9	Push Plate	1134-5299-01
10	Washer	9699-0090-02
11	Screw	9997-0818-02
13	Spring	1134-4256-01
14	Spacer	1134-5626-03
15	Nut	112156603/0
16	Seat Bracket Assy	1134-5698-01
18	Rear Plate	1134-6461-01
19	Screw	9893-0616-16
20	Screw	9897-0820-16
21	Cap	118203854/0
22	Handle Assy	1134-6073-01
23	Spring	1134-3262-01
24	Nut	112154510/0
25	Frame Front	387800011/0
26	Grease Dispenser Rak/straight	9501-0500-00
27	Grease Nipple M6 90 90°	9501-0504-01
28	Locating Pin	9595-0262-00
29	Pivot Shaft Stop	1134-0031-00
30	Fork	1134-3963-02
31	Spring	1134-2171-01
32	Frame-Rear Assy	1134-6466-02
33	Bearing	9547-0001-00
34	Spacer	1134-5705-01
36	Screw	9959-1025-16
37	Washer	9699-0035-02
38	Centre Shaft	1134-5988-01
40	Flange Washer	1134-6078-01
41	Floor Plate	1134-6586-01
42	Slide Plate-Upper	1134-6090-01
43	Cover Plug	9403-0048-70
44	Bracket	1134-4117-01
45	Bearing	1134-2684-01
46	Lift Fork	387256055/0
47	Screw	112791500/0
48	Lift pedal	1134-4938-01
49	Nut	9739-0631-22
50	Lift Catch Assy	1134-4945-01
52	Spring	4231-0013-00
53	Screw	9897-0880-12
54	Spacer	1134-1565-08
55	Screw	9945-0816-16
56	Tank Shelf Assy	1134-5944-01
57	Nut	112154220/0
59	Washer	9665-0002-00
60	Washer	1134-4242-01
61	Rear Bumper	387457003/0
63	Screw	9943-0516-16
65	Plug	1134-4100-01
66	Screw	9959-0820-16
