Park Pro 18 4WD Park Pro 18 4WD (2014)
>
Hand controls
Back to
Park Pro 18 4WD
Park Pro 18 4WD (2014)
Hand controls
Park Pro 18 4WD
Park Pro 18 4WD (2014)

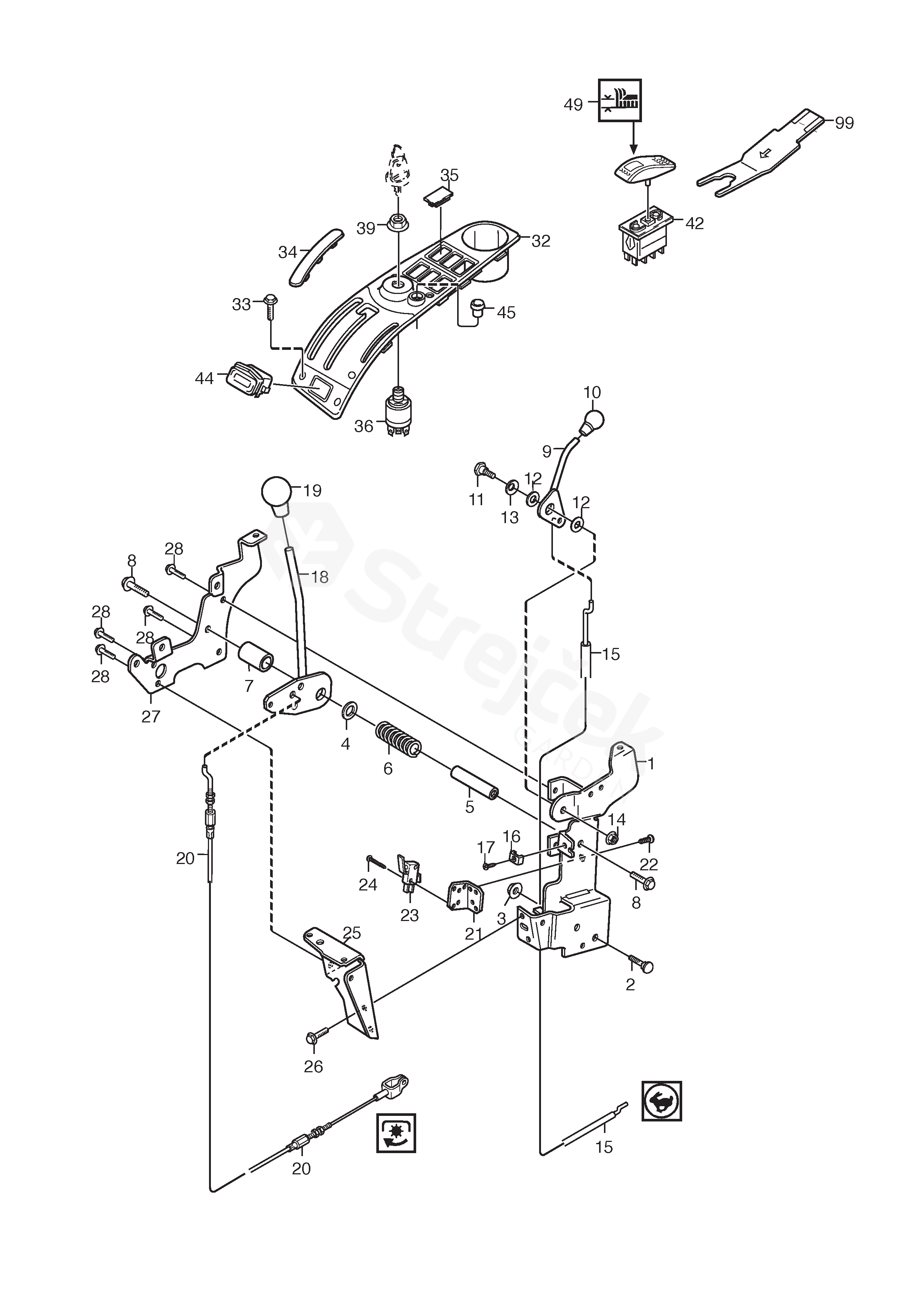

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Park Pro 18 4WD (2014)
1
Panel Bracket-Inner
1134-4156-01
2
Screw
9897-0820-16
3
Nut
9739-0831-22
4
Washer
9695-0011-00
5
Control Shaft
1134-4065-01
6
Spring
1134-4079-01
7
Control Sleeve
1134-4080-03
8
Screw
9959-0820-16
9
Throttle Cable
1134-4077-01
10
Knob
1134-4078-01
11
Screw
1134-0240-00
12
Washer
1134-4242-01
13
Washer
9694-0001-00
14
Nut
9747-0831-02
15
Throttle Cable
L1 = 1413 mm
1137-0063-03
16
Wire Clamp
9500-9991-00
17
Screw
9943-0516-16
18
Control Lever
1134-4072-01
19
Knob
1134-2551-01
20
Pto Cable
1134-3573-03
21
Switch Bracket
1134-5358-01
22
Screw
9852-8013-16
23
Switch
9400-0285-01
24
Screw
L = 16 mm
9840-7716-16
25
Panel bracket-front
1134-6328-01
26
Screw
9893-0616-16
27
Front Plate
1134-6327-01
28
Screw
9893-0616-16
32
Dashboard
1134-6096-05
33
Screw
9946-0525-16
34
Cover
1134-4154-01
35
Cover
1134-4129-01
36
Ignition Switch
1134-4093-01
39
Nut
1134-4749-01
42
Switch
9400-0282-01
44
Hour Meter
1134-6097-01
45
Plug
1134-4100-01
49
Switch Cover-Height Adjust
9400-0280-03
99
Tool
Tillbeh÷r/Accessory
9400-0290-01
