STIGA
>
Front Mowers
>

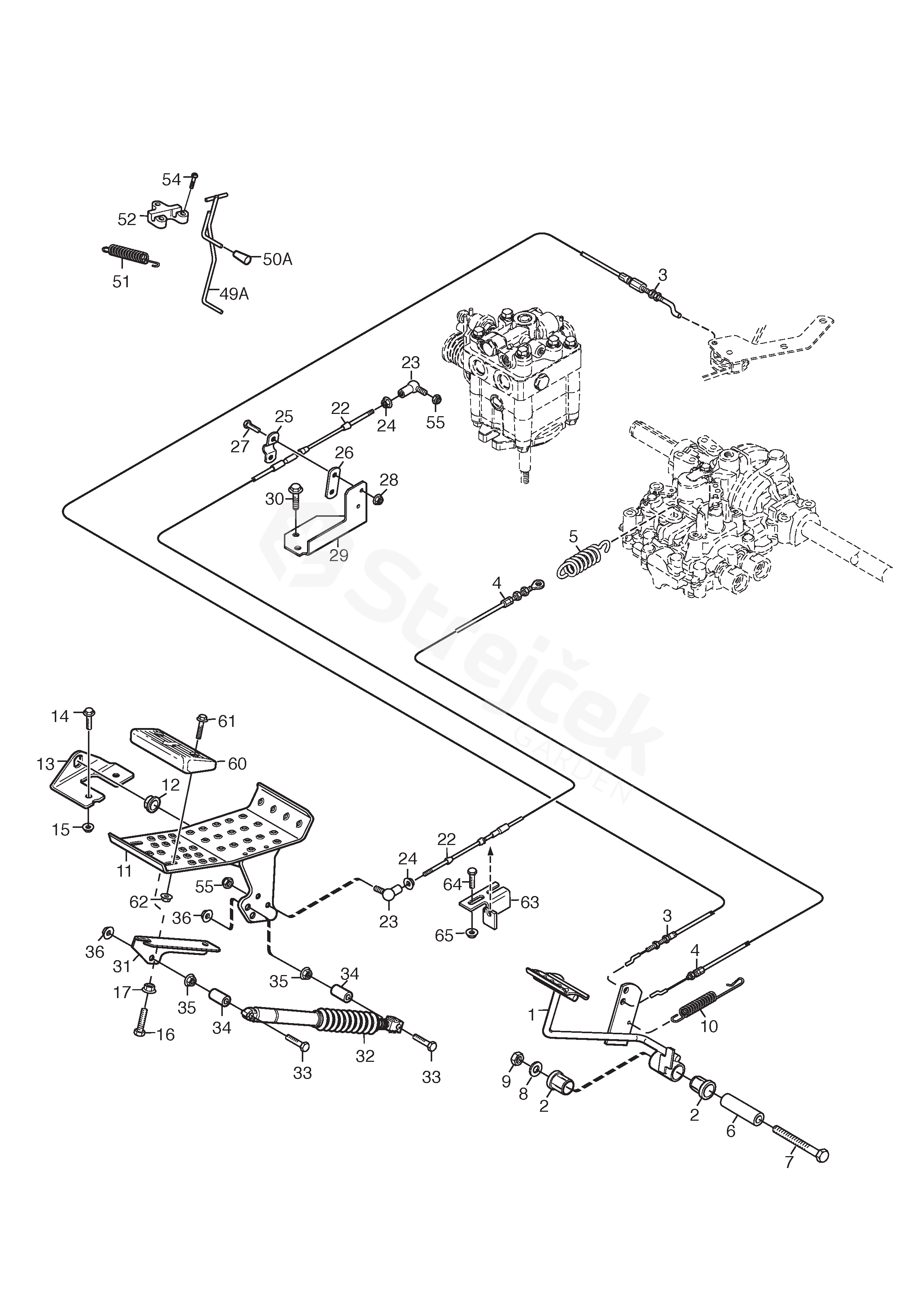

Park Pro 21 4W Park Pro 21 4WD (ISO) (2014)
>
Foot Controls
Back to
Park Pro 21 4W
Park Pro 21 4WD (ISO) (2014)
Foot Controls
Park Pro 21 4W
Park Pro 21 4WD (ISO) (2014)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Park Pro 21 4WD (ISO) (2014)
1
Clutch Pedal
1134-5655-01
2
Bearing
Sats 4 st/kit of 4
1134-9024-01
3
Cable
1134-5815-02
4
Cable, Thread Engine Brake
1134-6020-01
5
Spring
1134-5989-01
6
Spacer
1134-5677-02
7
Screw
9997-1070-12
8
Washer
9699-0030-02
9
Nut
9739-1031-22
10
Spring
4231-0013-00
11
Drive Pedal
1134-6353-01
12
Bearing
1134-6313-01
13
Bracket
1134-2700-01
14
Screw
9959-0820-16
15
Nut
9739-0831-22
16
Screw
9997-0835-16
17
Nut
9739-0831-22
22
Control Cable
1134-2766-08
23
Elbow Link
9570-0001-00
24
Nut
9739-0531-22
25
Attaching clamp
1134-0266-00
26
Clamp Plate
1134-0267-00
27
Screw
9997-0520-16
28
Nut
9739-0531-22
29
Cable Bracket
1134-5689-01
30
Screw
9945-0816-16
31
Bracket
1134-3996-01
32
Damper
1134-4187-01
33
Screw
9997-0840-12
34
Spacer
1134-1565-09
35
Nut
9739-0831-22
36
Nut
9747-0831-02
51
Brake Spring
1131-1497-01
52
Brake Rod Attachment
1134-4002-01
54
Screw
9838-9516-12
55
Nut
9747-0531-02
60
Foot rest
1134-6340-02
61
Screw
9959-0620-16
62
Nut
9739-0631-22
63
Wire Bracket
1134-6317-01
64
Screw
9959-0620-16
65
Nut
9739-0631-22
