Spare parts > STIGA > Front Mowers > Park Pro 21 4W Park Pro 21 4WD (ISO) (2014) > Electric system
Back to

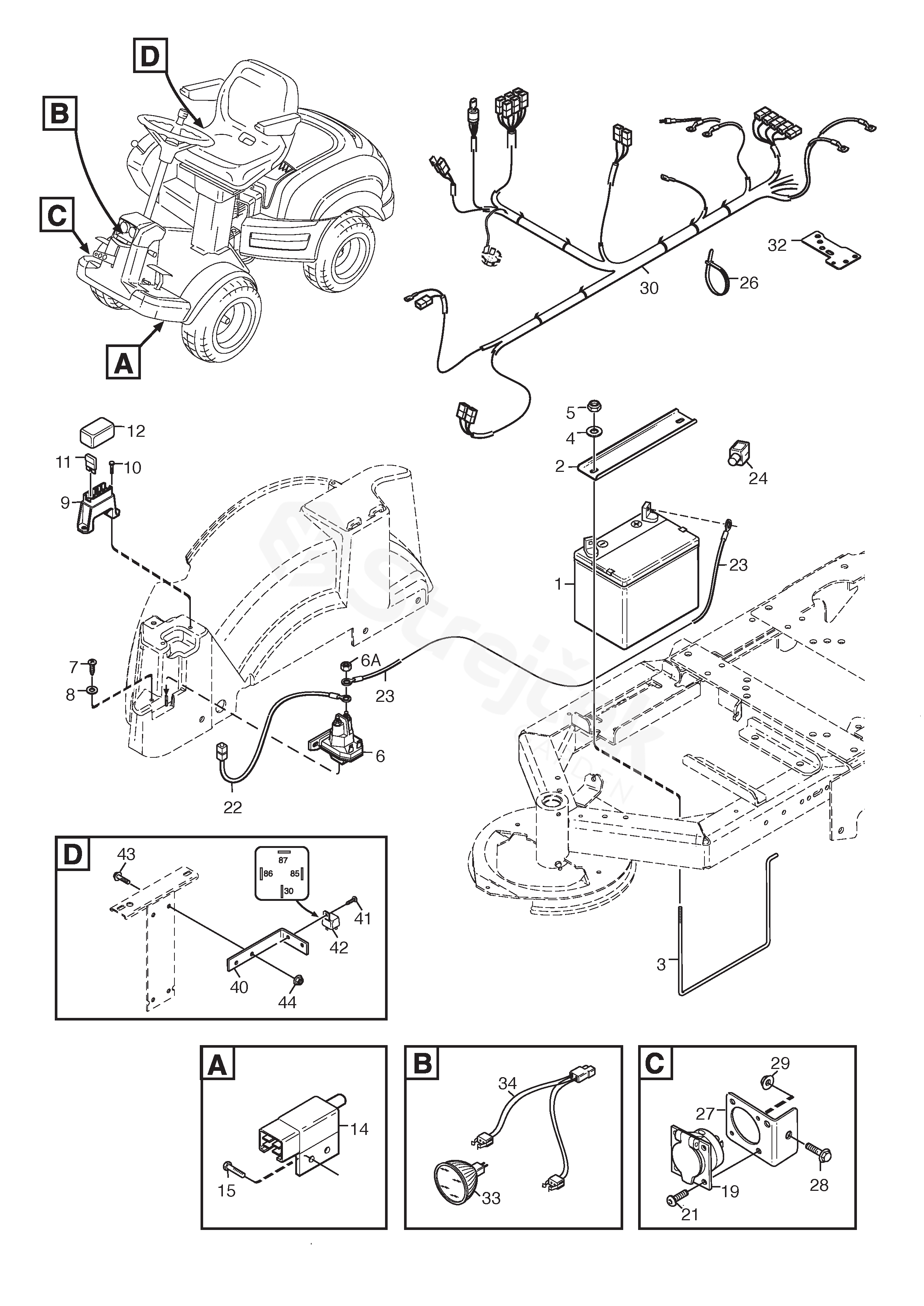

Electric system
Park Pro 21 4W Park Pro 21 4WD (ISO) (2014)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Park Pro 21 4WD (ISO) (2014)
1 Battery
12V - 24Ah 		1134-5751-01
2 Battery Plate 1134-5643-01
3 Battery Loop 1134-5642-01
4 Washer 9699-0060-02
5 Lock Nut 9747-0631-02
6 Solenoid
Inkl. pos 6A 		1134-2962-01
9 Fuse Holder 1134-3491-01
10 Screw 9838-9516-12
11 Fuse
20A 		1134-3496-06
12 Cover-Fuse Holder 1134-3631-01
14 Switch 1134-3399-01
15 Screw 9943-0516-16
19 Female Connector 1134-7535-01
21 Screw 9840-7716-16
22 Cable 1134-4970-01
23 Battery Cable 1134-0234-02
24 Guard Cap 1134-2310-01
26 Cable Holder 9579-0003-00
27 Attachment 2010 1137-0075-01
28 Screw 9959-0820-16
29 Nut 9739-0831-22
30 Harness
Honda (Park Pro 25) 		1137-0172-01
32 Ground Plate 1134-6454-01
33 Led-Lamp 9400-0358-01
34 Wiring harness 1134-7505-01
40 Bracket 1137-0203-01
41 Screw 9893-0616-16
42 Relay 1134-2871-01
43 Screw 9959-0612-16
44 Nut 9739-0631-22
