Spare parts > STIGA > Front Mowers > PARK PRO 25 4WD PARK PRO 25 4WD (2005) > Body Work-Front
Back to

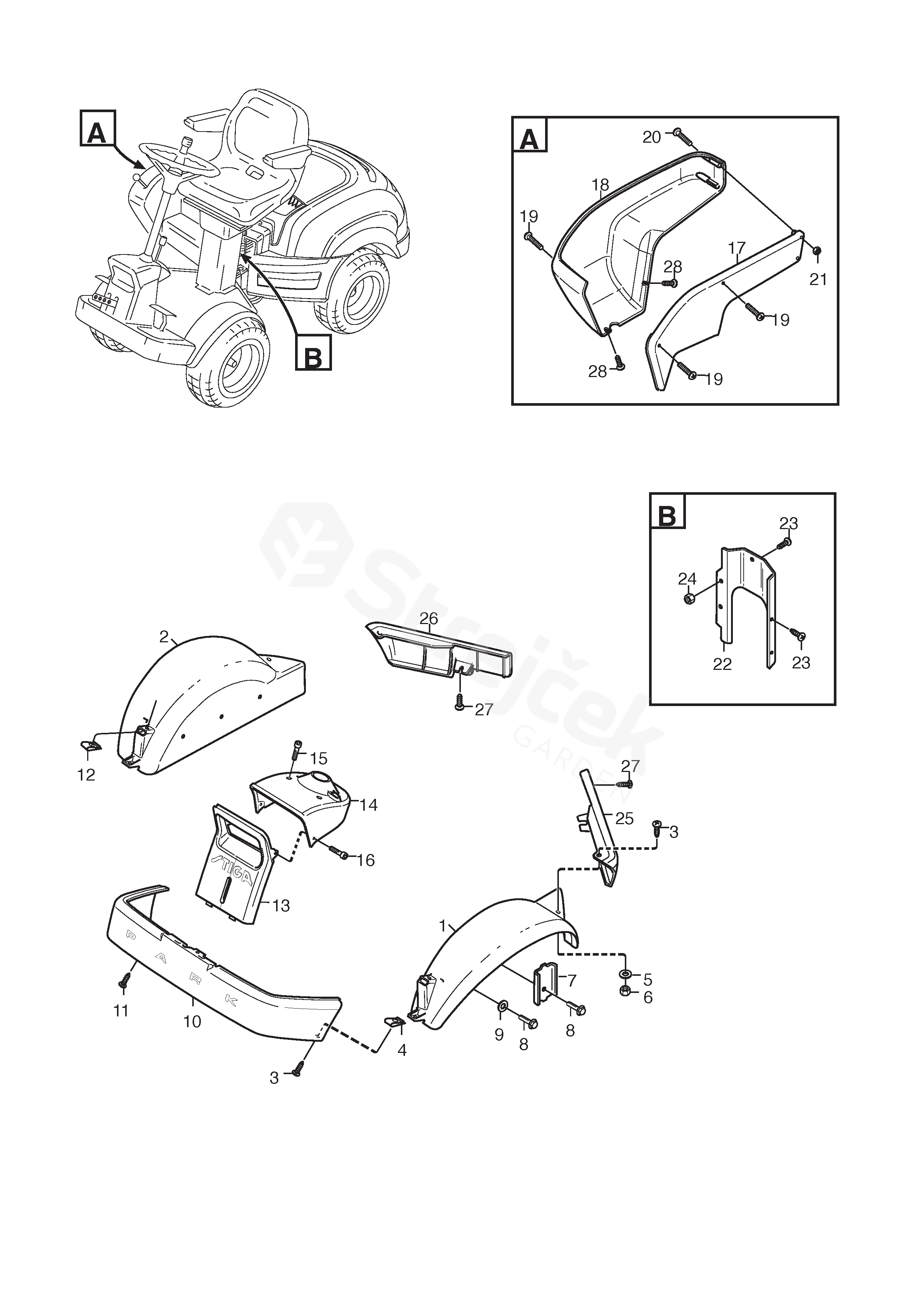

Body Work-Front
PARK PRO 25 4WD PARK PRO 25 4WD (2005)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK PRO 25 4WD (2005)
1 Mud Guard-Lh (Grey) 1134-3943-11
2 Mud Guard-Rh (Grey) 1134-3943-12
5 Washer 9699-0025-02
6 Lock Nut 9747-0631-02
7 Support Plate 1134-0225-00
8 Screw 9945-0816-16
9 Washer 9699-0056-02
10 Front Bumper 1134-4220-02
11 Screw 9893-0616-16
12 Clips 1134-4176-01
13 Front Plate-Yellow (W/O Hole) 1134-4216-05
14 Upper Front Plate-Yellow 1134-3984-03
15 Screw 9946-0525-16
16 Screw 9840-8019-16
17 Cover-Inner 1134-4360-01
18 Cover-Outer 1134-3979-01
20 Screw 9950-0570-12
21 Nut 9747-0531-02
22 Rear Plate 1134-5694-01
24 Nut 9739-0631-22
25 Moulding-Left (Grey) 1134-3970-05
26 Moulding Right-Grey 1134-3970-02
