STIGA
>
Front Mowers
>
PARK PRO 25 4WD PARK PRO 25 4WD (2012)
>

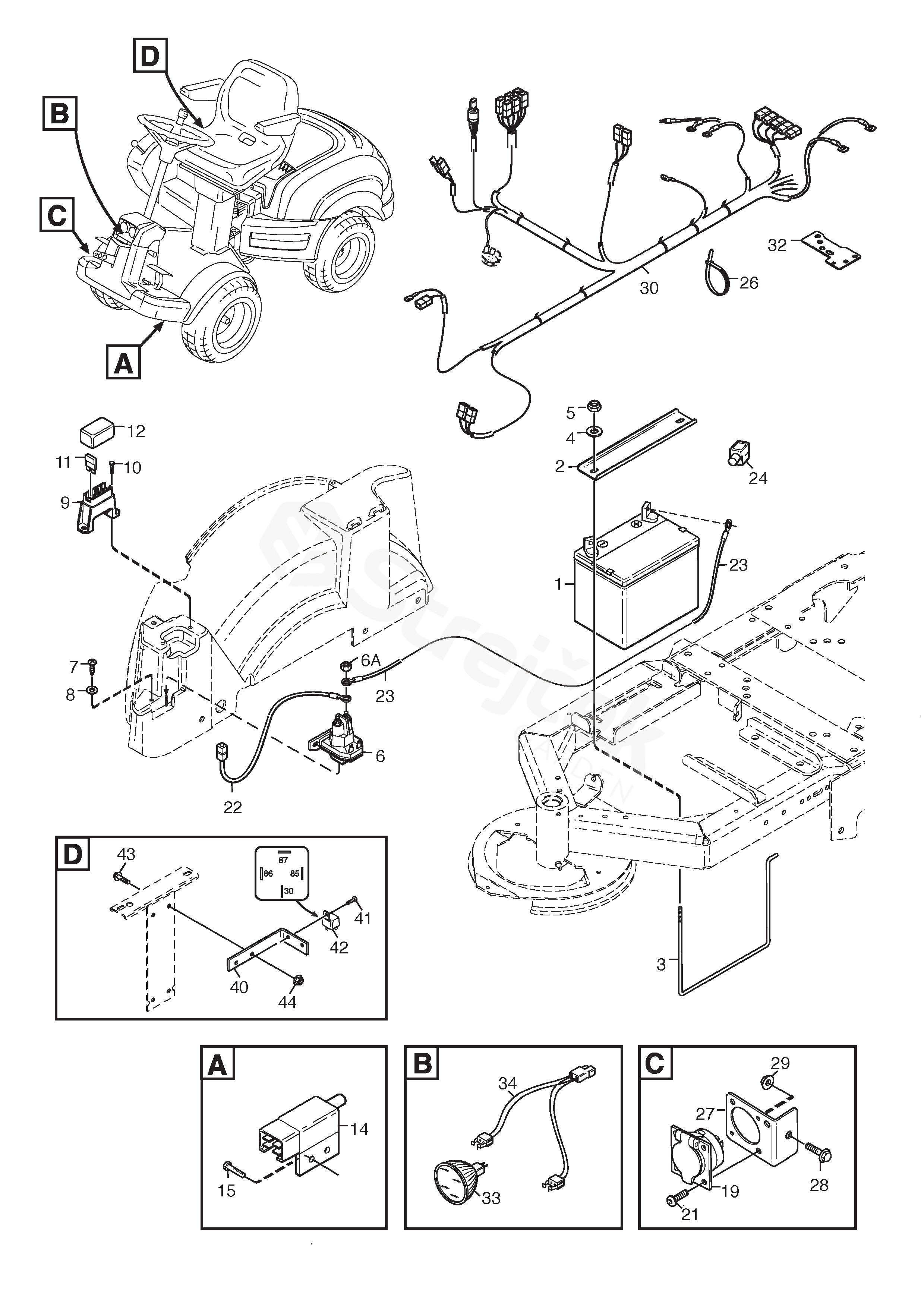

Electric system
Back to
PARK PRO 25 4WD
PARK PRO 25 4WD (2012)
Electric system
PARK PRO 25 4WD
PARK PRO 25 4WD (2012)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK PRO 25 4WD (2012)
1
Battery
12V - 24Ah
1134-5751-01
2
Battery Plate
1134-5643-01
3
Battery Loop
1134-5642-01
4
Washer
9699-0060-02
5
Lock Nut
9747-0631-02
6
Solenoid
Inkl. pos 6A
1134-2962-01
9
Fuse Holder
1134-3491-01
10
Screw
9838-9516-12
11
Fuse
20A
1134-3496-06
12
Cover-Fuse Holder
1134-3631-01
14
Switch
1134-3399-01
15
Screw
9943-0516-16
19
Female Connector
1134-7535-01
21
Screw
9840-7716-16
22
Cable
1134-4970-01
23
Battery Cable
1134-0234-02
24
Guard Cap
1134-2310-01
26
Cable Holder
9579-0003-00
27
Attachment 2010
1137-0075-01
28
Screw
9959-0820-16
29
Nut
9739-0831-22
30
Harness
Honda (Park Pro 25)
1137-0172-01
32
Ground Plate
1134-6454-01
33
Led-Lamp
9400-0358-01
34
Wiring harness
1134-7505-01
40
Bracket
1137-0203-01
41
Screw
9893-0616-16
42
Relay
1134-2871-01
43
Screw
9959-0612-16
44
Nut
9739-0631-22
