TITAN 32 H W CABIN (2010) [13-7441-23]

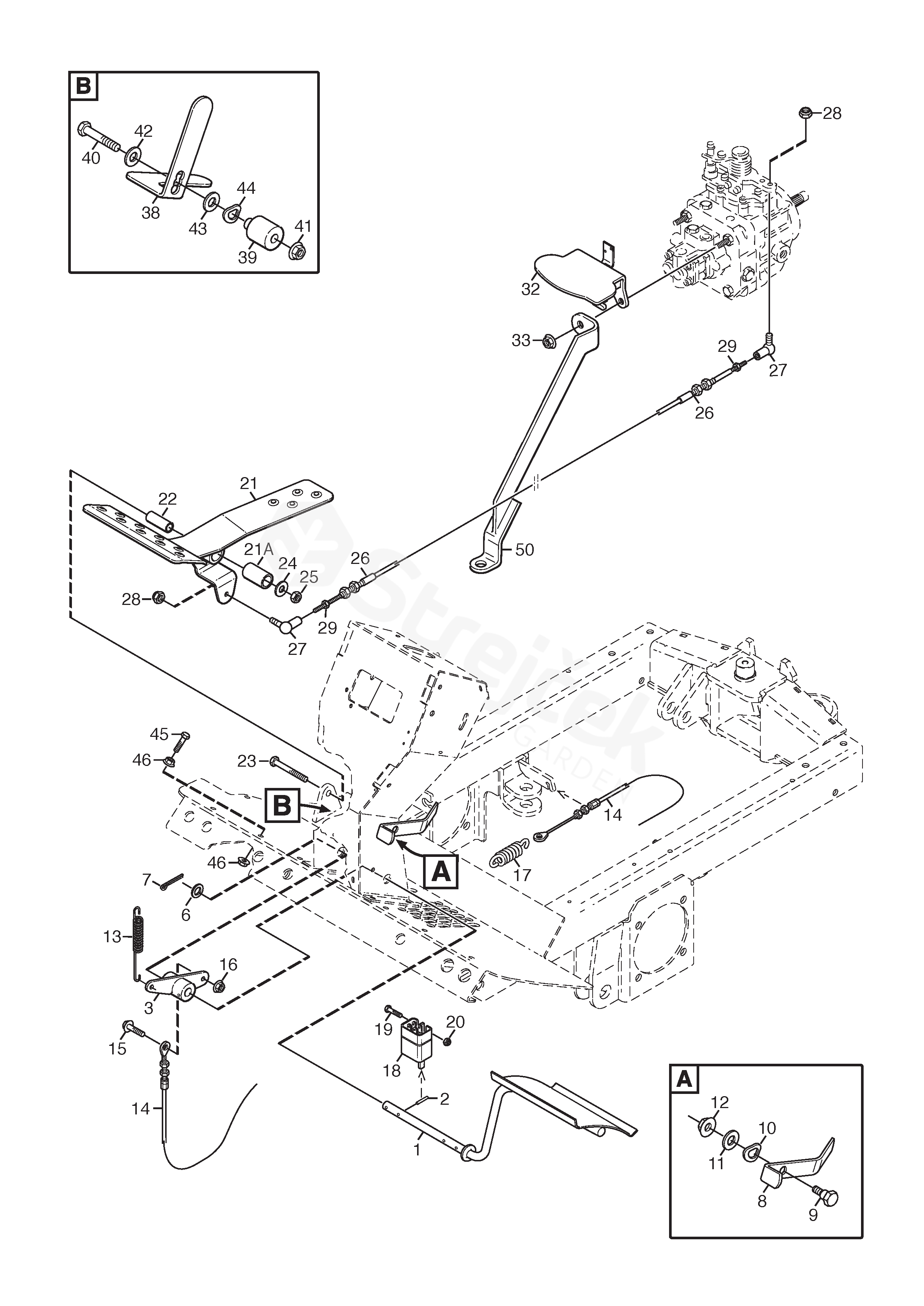

Foot controls
TITAN 32 H W Cabin
TITAN 32 H W CABIN (2010) [13-7441-23]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TITAN 32 H W CABIN (2010) [13-7441-23]
1
Brake pedal
1134-7267-02
2
Locating Pin
9595-0210-00
3
Brake Arm
1135-2820-01
4
Bearing
1134-6313-01
6
Washer
9699-0036-02
7
Cotter Pin
9599-0080-02
8
Brake Lock
1134-7265-01
9
Shoulder screw
1134-0240-01
10
Washer
9694-0001-00
11
Washer
1134-4242-01
12
Nut
9747-0831-02
13
Spring
1134-7401-01
14
Cable, Thread Engine Brake
1134-7281-01
15
Screw
9997-0520-16
16
Nut
9747-0531-02
17
Spring
w/o cabin
1135-3307-01
18
Switch
1134-3399-01
21
Bearing
9548-0027-01
22
Spacer
1134-7217-01
23
Screw
9997-1050-12
24
Washer
9699-0030-02
25
Nut
1134-4775-01
26
Control Cable
1134-7054-01
27
Elbow Link
9570-0004-00
28
Lock Nut
9747-0631-02
29
Nut
9739-0631-22
32
Speed Control Plate Assy
1135-3911-01
33
Lock Nut
9747-1031-02
38
Drive Pedal Stop
1134-7593-01
39
Spacer
1134-7594-01
40
Screw
9997-0845-12
41
Nut
9739-0831-22
42
Washer
9699-0062-02
43
Washer
9695-0011-00
45
Screw
9997-0835-16
50
Strut
1135-2706-02
